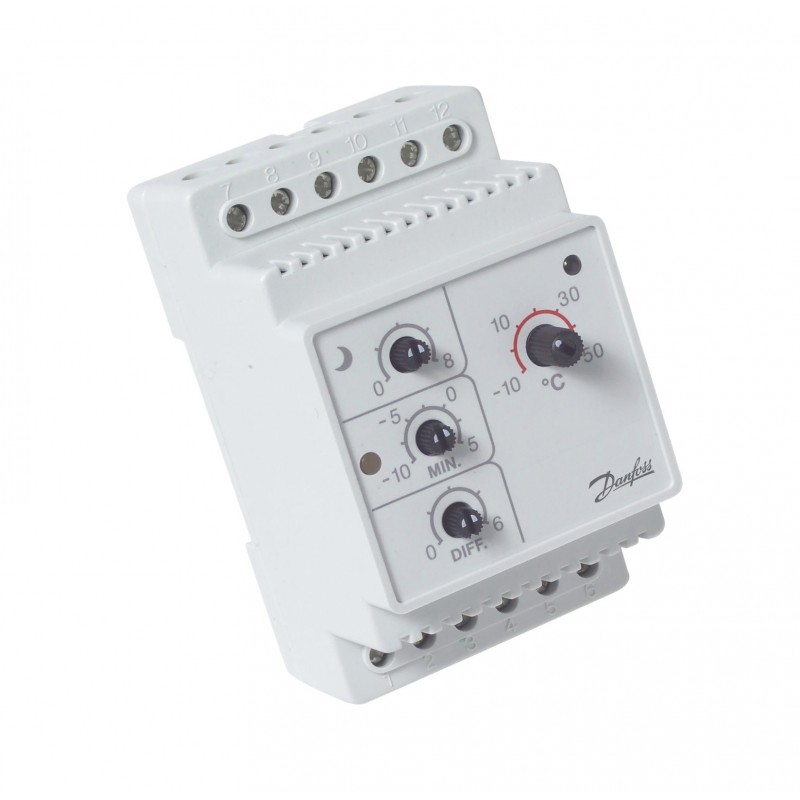

088L0443 DANFOSS HEATING EFET-316, -10 C-+50 CDINrail, sensor cab
088L0443
DANFOSS HEATING
EFET-316, -10>C-+50>CDINrail, sensor cab
EFET-316, -10>C-+50>CDINrail, sensor cab
Thermostats, ECtemp 316, Sensor type: Wire, 16 A
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Temperature setting range [°C]: -10 - 50, Display type: No display, Application: Asphalt ice and snow melting; Roof frost protection; Vineyard frost protection; Cold store; Ground ice and snow melting; Pipe / tank frost protection; Sport fields
Product details
| Gross weight | 0.228 Kilogram |
| Net weight | 0.228 Kilogram |
| Volume | 0.761 Liter |
| EAN | 5703466130339 |
| Type | ECtemp 316 |
| Product group | Thermostats |
| Gross weight | 0.228 Kilogram |
| Net weight | 0.228 Kilogram |
| Volume | 0.761 Liter |
| EAN | 5703466130339 |
| Type | ECtemp 316 |
| Product group | Thermostats |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 45 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Pipe / tank frost protection Asphalt ice and snow melting Cold store Ground ice and snow melting Roof frost protection Sport fields Vineyard frost protection |
| Approval | CE |
| Ball pressure test temperature [°C] | 75 °C |
| CE evaluated | Yes |
| Certification company | NEMKO |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9010 |
| Contains batteries | No |
| Depth [mm] | 58 mm |
| Description | ECtemp 316 -10<>+50° |
| DIN mounting | Yes |
| Display type | No display |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Element IP Class | 20 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Height [mm] | 86 mm |
| Hysteresis (+/-) [Max] | 6 |
| Hysteresis (+/-) [Min] | 0.2 |
| In scope of WEEE | Yes |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Lowering in economy period [°C] [Max] | 8 °C |
| Lowering in economy period [°C] [Min] | 0 °C |
| Package depth [mm] | 140 mm |
| Package height [mm] | 85 mm |
| Package width [mm] | 95 mm |
| Pollution degree | 2 |
| Product description | ECtemp 316 |
| REACH Candidate List substances | No |
| Regulation type | Hysteresis |
| Relay switch | 1-pole |
| Resistive load max [A] | 16 A |
| Scale Setting | -10 +50ºC |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | Wire |
| Standby power consumption [W] [Max] | 0.25 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| Temperature setting range [°C] [Max] | 50 °C |
| Temperature setting range [°C] [Min] | -10 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| UL evaluated | Out of scope |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 36 mm |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 45 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Pipe / tank frost protection Asphalt ice and snow melting Cold store Ground ice and snow melting Roof frost protection Sport fields Vineyard frost protection |
| Approval | CE |
| Ball pressure test temperature [°C] | 75 °C |
| CE evaluated | Yes |
| Certification company | NEMKO |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9010 |
| Contains batteries | No |
| Depth [mm] | 58 mm |
| Description | ECtemp 316 -10<>+50° |
| DIN mounting | Yes |
| Display type | No display |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Element IP Class | 20 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Height [mm] | 86 mm |
| Hysteresis (+/-) [Max] | 6 |
| Hysteresis (+/-) [Min] | 0.2 |
| In scope of WEEE | Yes |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Lowering in economy period [°C] [Max] | 8 °C |
| Lowering in economy period [°C] [Min] | 0 °C |
| Package depth [mm] | 140 mm |
| Package height [mm] | 85 mm |
| Package width [mm] | 95 mm |
| Pollution degree | 2 |
| Product description | ECtemp 316 |
| REACH Candidate List substances | No |
| Regulation type | Hysteresis |
| Relay switch | 1-pole |
| Resistive load max [A] | 16 A |
| Scale Setting | -10 +50ºC |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | Wire |
| Standby power consumption [W] [Max] | 0.25 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| Temperature setting range [°C] [Max] | 50 °C |
| Temperature setting range [°C] [Min] | -10 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| UL evaluated | Out of scope |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 36 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 088L0443 088L0443 ES_088L0443.pdf | 274 Kbytes |
|
