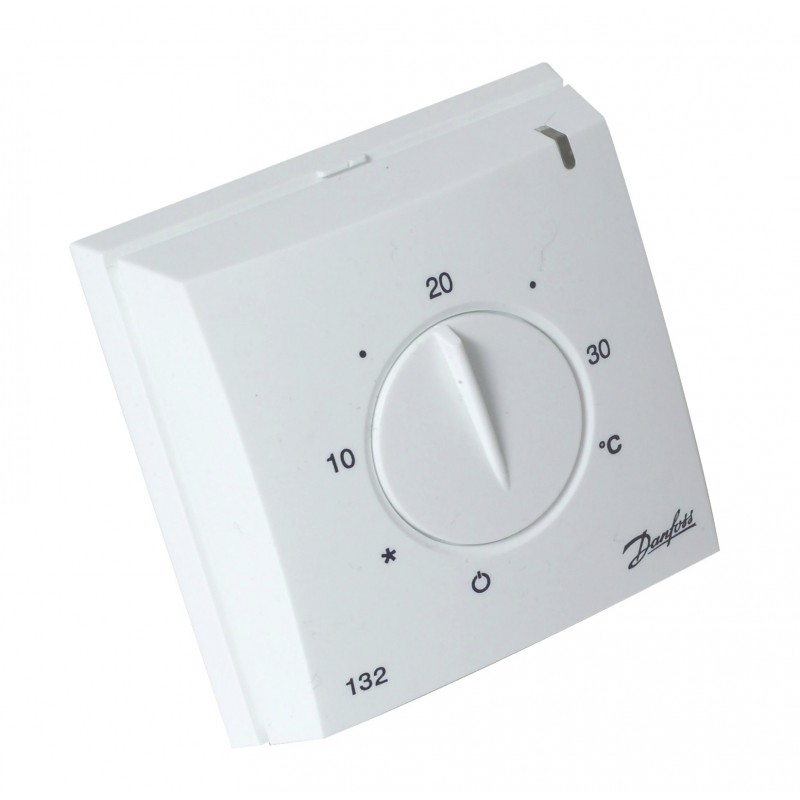

088L0032 DANFOSS HEATING EFET-132 PW WE sensor cable 3m 15KOHM
088L0032
DANFOSS HEATING
EFET-132 PW WE sensor cable 3m 15KOHM
Thermostats, ECtemp 132, Sensor type: Room + Floor, 16 A
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Temperature - room [°C]: 5 - 35, Display type: No display, Application: Floor heating
Product details
| Gross weight | 0.186 Kilogram |
| Net weight | 0.186 Kilogram |
| Volume | 0.745 Liter |
| EAN | 5703466126738 |
| Type | ECtemp 13x series |
| Product group | Thermostats |
| Gross weight | 0.186 Kilogram |
| Net weight | 0.186 Kilogram |
| Volume | 0.745 Liter |
| EAN | 5703466126738 |
| Type | ECtemp 13x series |
| Product group | Thermostats |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 30 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Floor heating |
| Approval | CE |
| Ball pressure test temperature [°C] | 75 °C |
| CE evaluated | Yes |
| Certification company | NEMKO |
| China RoHS compliance | Yes |
| Colour | White RAL 9010 |
| Contains batteries | No |
| Depth [mm] | 36 mm |
| Description | ECtemp 132 |
| DIN mounting | No |
| Display type | No display |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Element IP Class | 30 |
| EU RoHS compliance | Yes |
| Frost protection [°C] | 5 °C |
| Height [mm] | 82 mm |
| Hysteresis (+/-) | 0.2 |
| In scope of WEEE | Yes |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 90 mm |
| Package height [mm] | 93 mm |
| Package width [mm] | 89 mm |
| Pollution degree | 2 |
| Product description | ECtemp 132 |
| Regulation type | Hysteresis |
| Relay switch | 1-pole |
| Resistive load max [A] | 16 A |
| Scale Setting | 0 - 6 |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | Room + Floor |
| Standby power consumption [W] [Max] | 5 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| Temperature - floor [°C] [Max] | 50 °C |
| Temperature - floor [°C] [Min] | 20 °C |
| Temperature - room [°C] [Max] | 35 °C |
| Temperature - room [°C] [Min] | 5 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| UL evaluated | Out of scope |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 82 mm |
| 2-pole switch | No |
| Ambient temperature [°C] [max] | 30 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Floor heating |
| Approval | CE |
| Ball pressure test temperature [°C] | 75 °C |
| CE evaluated | Yes |
| Certification company | NEMKO |
| China RoHS compliance | Yes |
| Colour | White RAL 9010 |
| Contains batteries | No |
| Depth [mm] | 36 mm |
| Description | ECtemp 132 |
| DIN mounting | No |
| Display type | No display |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Element IP Class | 30 |
| EU RoHS compliance | Yes |
| Frost protection [°C] | 5 °C |
| Height [mm] | 82 mm |
| Hysteresis (+/-) | 0.2 |
| In scope of WEEE | Yes |
| Indicator type | LED |
| Inductive load | cos φ= 0.3 max 1A |
| Package depth [mm] | 90 mm |
| Package height [mm] | 93 mm |
| Package width [mm] | 89 mm |
| Pollution degree | 2 |
| Product description | ECtemp 132 |
| Regulation type | Hysteresis |
| Relay switch | 1-pole |
| Resistive load max [A] | 16 A |
| Scale Setting | 0 - 6 |
| Sensor definition point [Ohm/°C] | 15kΩ / 25°C |
| Sensor type | Room + Floor |
| Standby power consumption [W] [Max] | 5 W |
| Storage temperature [°C] [Max] | 65 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 220 V |
| Temperature - floor [°C] [Max] | 50 °C |
| Temperature - floor [°C] [Min] | 20 °C |
| Temperature - room [°C] [Max] | 35 °C |
| Temperature - room [°C] [Min] | 5 °C |
| Terminal cable size max [mm²] | 2 x 2.5 |
| UL evaluated | Out of scope |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Warranty type | 2-year product warranty |
| Width [mm] | 82 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 088L0032 088L0032 ES_088L0030.pdf | 319 Kbytes |
|
