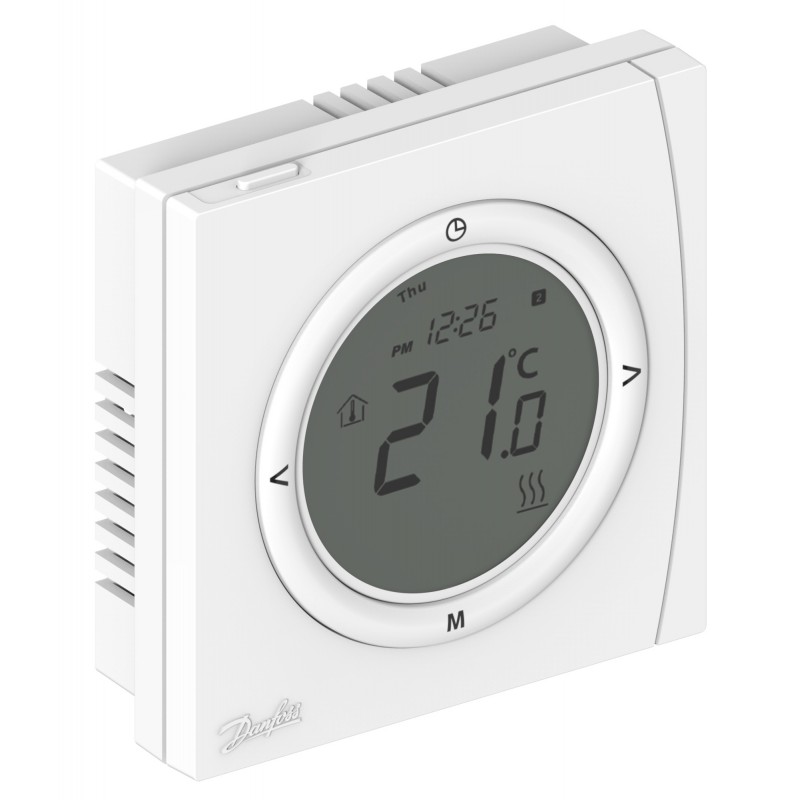

087N7931 DANFOSS HEATING TP5001B Prog Stat Battery
Reference: 087N7931
Manufacturer: DANFOSS HEATING
Description:
TP5001B Prog Stat Battery
TP5001B Prog Stat Battery, Battery, 5/2 Day Thermostat
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
TP5001B, Battery powered digital electronic programmable room thermostat
Product details
| Gross weight | 0.224 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.625 Liter |
| EAN | 5702425239397 |
| Type | TP5001 |
| Product group | Programmable Room Thermostats |
| Gross weight | 0.224 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.625 Liter |
| EAN | 5702425239397 |
| Type | TP5001 |
| Product group | Programmable Room Thermostats |
| 1 Primary battery SUM weight Kg | 0.044 |
| 1 Primary battery weight Kg | 0.022 |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Automatic daylight saving | Yes |
| Back lit display | Yes |
| Backplate | Custom Backplate |
| Ball hardness test [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type | 2 x AA alkaline batteries |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| Built In sensor | Yes |
| Category name | 5/2 Day Thermostat |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Clock display | AM/PM or 24 hour display |
| Colour | White RAL 9010 |
| Contains batteries | Yes |
| Control pollution | Degree 2 |
| Control type | On/Off load compensation |
| Delayed start control | Yes |
| Depth [mm] | 30 mm |
| Description | TP5001B, Battery powered digital electronic programmable room thermostat |
| Design standard | EN 60730-2-9 |
| Displays time or temperature | Yes |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Factory pre-set programmes | Yes |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| Holiday function | Yes |
| In scope of WEEE | Yes |
| Label product | Yes |
| Low battery indicator | Yes |
| Material | ABS+PC, non-flammable |
| On/Off control | Yes |
| On/off modulating control | Yes |
| On/Offs Per Day | 4 |
| Optimum start control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Override function | Yes |
| Product description | TP5001B Prog Stat Battery |
| Rated impulse voltage [kV] | 2.5 kV |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Remote sensor option | No |
| Schedule type | 5/2 day, 24 hour |
| SCIP dossier no. | 1076e053-04a2-4646-987d-f4036bc6aef1 |
| SCIP dossier product name | Electronic programmable room thermostat |
| Service Interval timer | Yes |
| Supply Type | Battery |
| Temperature [°C] [Max] | 35 °C |
| Temperature [°C] [Min] | 5 °C |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 5 |
| 1 Primary battery SUM weight Kg | 0.044 |
| 1 Primary battery weight Kg | 0.022 |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Automatic daylight saving | Yes |
| Back lit display | Yes |
| Backplate | Custom Backplate |
| Ball hardness test [°C] | 75 °C |
| Battery lifetime [Years] | 2 yr |
| Battery qty | 2 |
| Battery type | 2 x AA alkaline batteries |
| Battery type or Name | Alkaline AA (LR6/ZR6) |
| Built In sensor | Yes |
| Category name | 5/2 Day Thermostat |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Clock display | AM/PM or 24 hour display |
| Colour | White RAL 9010 |
| Contains batteries | Yes |
| Control pollution | Degree 2 |
| Control type | On/Off load compensation |
| Delayed start control | Yes |
| Depth [mm] | 30 mm |
| Description | TP5001B, Battery powered digital electronic programmable room thermostat |
| Design standard | EN 60730-2-9 |
| Displays time or temperature | Yes |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Factory pre-set programmes | Yes |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| Holiday function | Yes |
| In scope of WEEE | Yes |
| Label product | Yes |
| Low battery indicator | Yes |
| Material | ABS+PC, non-flammable |
| On/Off control | Yes |
| On/off modulating control | Yes |
| On/Offs Per Day | 4 |
| Optimum start control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Override function | Yes |
| Product description | TP5001B Prog Stat Battery |
| Rated impulse voltage [kV] | 2.5 kV |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Remote sensor option | No |
| Schedule type | 5/2 day, 24 hour |
| SCIP dossier no. | 1076e053-04a2-4646-987d-f4036bc6aef1 |
| SCIP dossier product name | Electronic programmable room thermostat |
| Service Interval timer | Yes |
| Supply Type | Battery |
| Temperature [°C] [Max] | 35 °C |
| Temperature [°C] [Min] | 5 °C |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 5 |
DATASHEET - PDF
Title
Size
Type
486 Kbytes
11 Mbytes
