DANFOSS HEATING 087N6622 087N6622 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

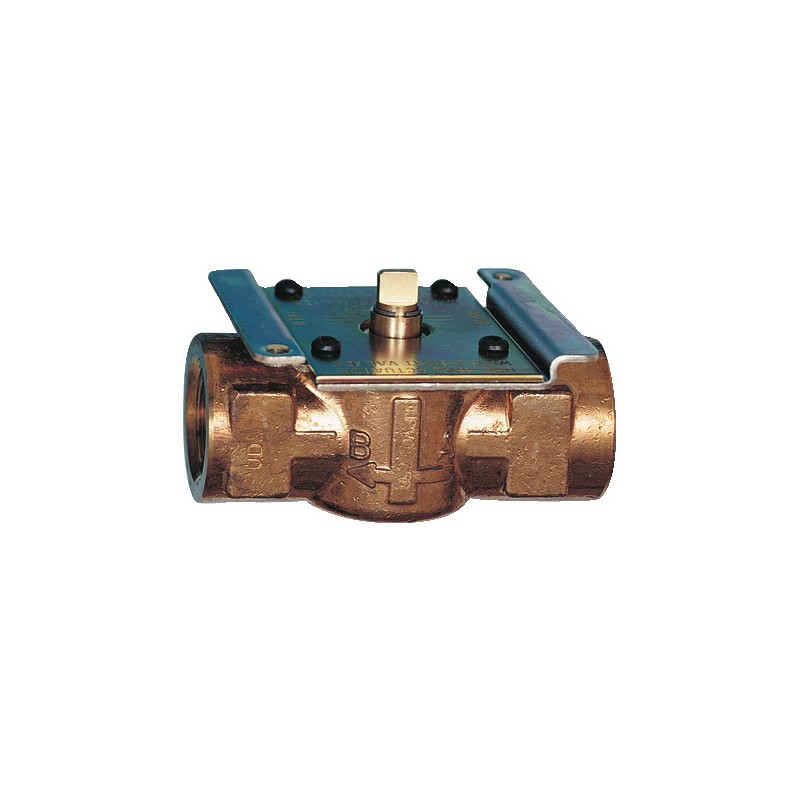

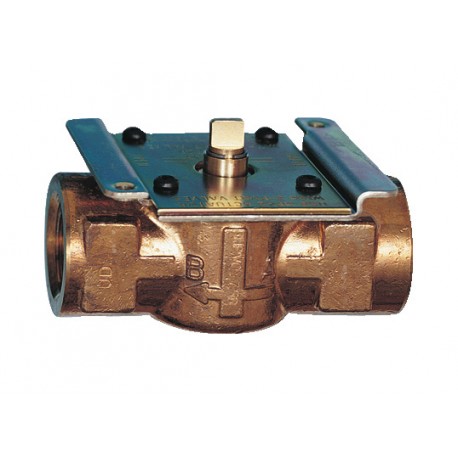

087N6622 DANFOSS HEATING HPV22B 22mm 2 Port valve body

Reference: 087N6622

Manufacturer: DANFOSS HEATING

Description:

HPV22B 22mm 2 Port valve body
HPV22B, 22mm external compression, Paddle, 2 Port Valve Body

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

HPV22B, 22mm 2 port external compression paddle valve body

Product details

Gross weight0.598 Kilogram
Net weight0.598 Kilogram
Volume1.064 Liter
EAN5013567162239
TypeHPV Paddle
Product groupZone Valves
Gross weight0.598 Kilogram
Net weight0.598 Kilogram
Volume1.064 Liter
EAN5013567162239
TypeHPV Paddle
Product groupZone Valves

Category name2 Port Valve Body
Closure MethodPaddle
Contains batteriesNo
DescriptionHPV22B, 22mm 2 port external compression paddle valve body
Differential pressure [bar] [max]1 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]5.8 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV22B
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection22mm external compression
Warranty [Year]2
Working pressure [bar] [Max]10 bar
Category name2 Port Valve Body
Closure MethodPaddle
Contains batteriesNo
DescriptionHPV22B, 22mm 2 port external compression paddle valve body
Differential pressure [bar] [max]1 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]5.8 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV22B
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection22mm external compression
Warranty [Year]2
Working pressure [bar] [Max]10 bar

DATASHEET - PDF
