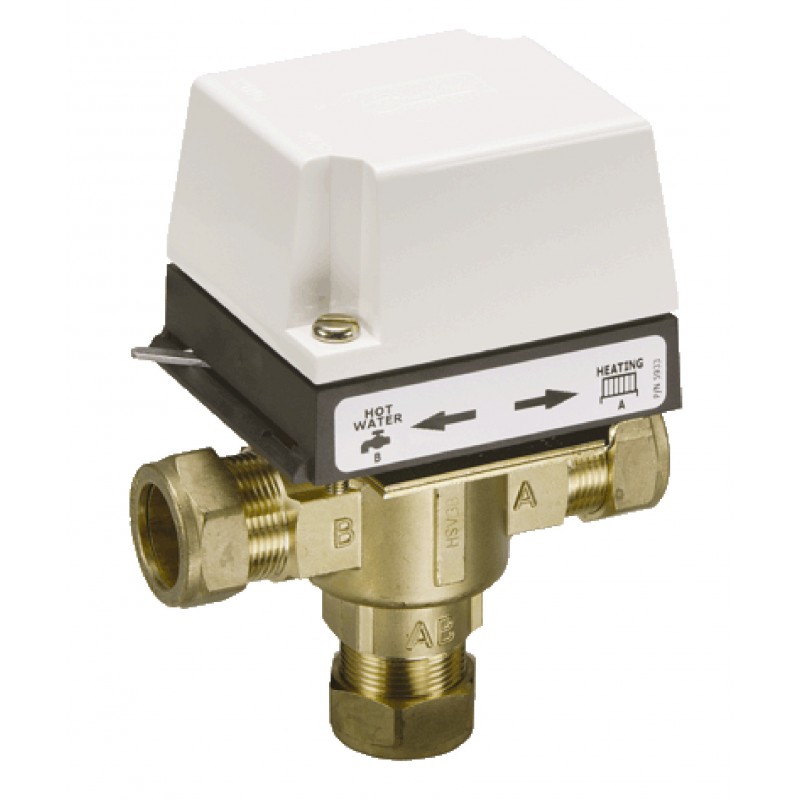

087N6614 DANFOSS HEATING HS3D 22mm 3 Port valve complete
Reference: 087N6614
Manufacturer: DANFOSS HEATING
Description:
HS3D 22mm 3 Port valve complete
HS3D, 22mm external compression, Shoe, 3 Port Valve Complete
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
HS3D, 22mm 3 port external compression diverter shoe valve with actuator
Product details
| Gross weight | 1.06 Kilogram |
| Net weight | 1.06 Kilogram |
| Volume | 2.579 Liter |
| EAN | 5013567262304 |
| Type | HS3 Shoe |
| Product group | Zone Valves |
| Gross weight | 1.06 Kilogram |
| Net weight | 1.06 Kilogram |
| Volume | 2.579 Liter |
| EAN | 5013567262304 |
| Type | HS3 Shoe |
| Product group | Zone Valves |
| Auxiliary switch | SPST |
| Category name | 3 Port Valve Complete |
| Closing time [sec] [Max] | 20 " |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HS3D, 22mm 3 port external compression diverter shoe valve with actuator |
| Differential pressure [bar] [max] | 1 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Flow Control Type | Diverter |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Kvs values [m³/h] | 6.8 m³/h |
| Opening time [sec] [Max] | 35 " |
| Operating temperature [°C] [max] | 95 °C |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | HS3D |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 805fd0d1-61f5-42fc-8ded-aa2944918225 |
| SCIP dossier product name | H-Series Actuators and Valves complete |
| Supply voltage [V] AC | 230 V |
| Tolerance | ±15% |
| Valve Size and Connection | 22mm external compression |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
| Auxiliary switch | SPST |
| Category name | 3 Port Valve Complete |
| Closing time [sec] [Max] | 20 " |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HS3D, 22mm 3 port external compression diverter shoe valve with actuator |
| Differential pressure [bar] [max] | 1 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Flow Control Type | Diverter |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Kvs values [m³/h] | 6.8 m³/h |
| Opening time [sec] [Max] | 35 " |
| Operating temperature [°C] [max] | 95 °C |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | HS3D |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 805fd0d1-61f5-42fc-8ded-aa2944918225 |
| SCIP dossier product name | H-Series Actuators and Valves complete |
| Supply voltage [V] AC | 230 V |
| Tolerance | ±15% |
| Valve Size and Connection | 22mm external compression |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
