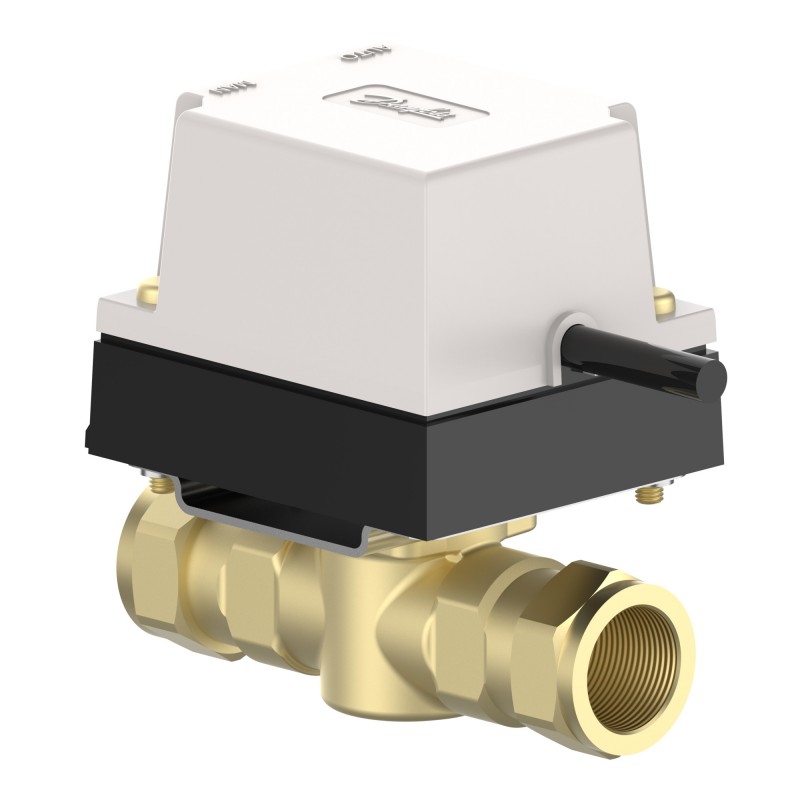

087N6609 DANFOSS HEATING HP22 22mm 2 Port valve complete
Reference: 087N6609
Manufacturer: DANFOSS HEATING
Description:
HP22 22mm 2 Port valve complete
HP22, 22mm external compression, Shoe, 2 Port Valve Complete
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
HP22, 22mm 2 port external compression shoe valve with actuator
Product details
| Gross weight | 0.966 Kilogram |
| Net weight | 0.966 Kilogram |
| Volume | 2.54 Liter |
| EAN | 5013567062201 |
| Type | HP Shoe |
| Product group | Zone Valves |
| Gross weight | 0.966 Kilogram |
| Net weight | 0.966 Kilogram |
| Volume | 2.54 Liter |
| EAN | 5013567062201 |
| Type | HP Shoe |
| Product group | Zone Valves |
| Auxiliary switch | SPST |
| Category name | 2 Port Valve Complete |
| Closing time [sec] [Max] | 20 " |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HP22, 22mm 2 port external compression shoe valve with actuator |
| Differential pressure [bar] [max] | 1 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Flow Control Type | Open/Close |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Kvs values [m³/h] | 8.2 m³/h |
| Opening time [sec] [Max] | 35 " |
| Operating temperature [°C] [max] | 95 °C |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | HP22 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 805fd0d1-61f5-42fc-8ded-aa2944918225 |
| SCIP dossier product name | H-Series Actuators and Valves complete |
| Supply voltage [V] AC | 230 V |
| Tolerance | ±15% |
| Valve Size and Connection | 22mm external compression |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
| Auxiliary switch | SPST |
| Category name | 2 Port Valve Complete |
| Closing time [sec] [Max] | 20 " |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HP22, 22mm 2 port external compression shoe valve with actuator |
| Differential pressure [bar] [max] | 1 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Flow Control Type | Open/Close |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Kvs values [m³/h] | 8.2 m³/h |
| Opening time [sec] [Max] | 35 " |
| Operating temperature [°C] [max] | 95 °C |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | HP22 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 805fd0d1-61f5-42fc-8ded-aa2944918225 |
| SCIP dossier product name | H-Series Actuators and Valves complete |
| Supply voltage [V] AC | 230 V |
| Tolerance | ±15% |
| Valve Size and Connection | 22mm external compression |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
