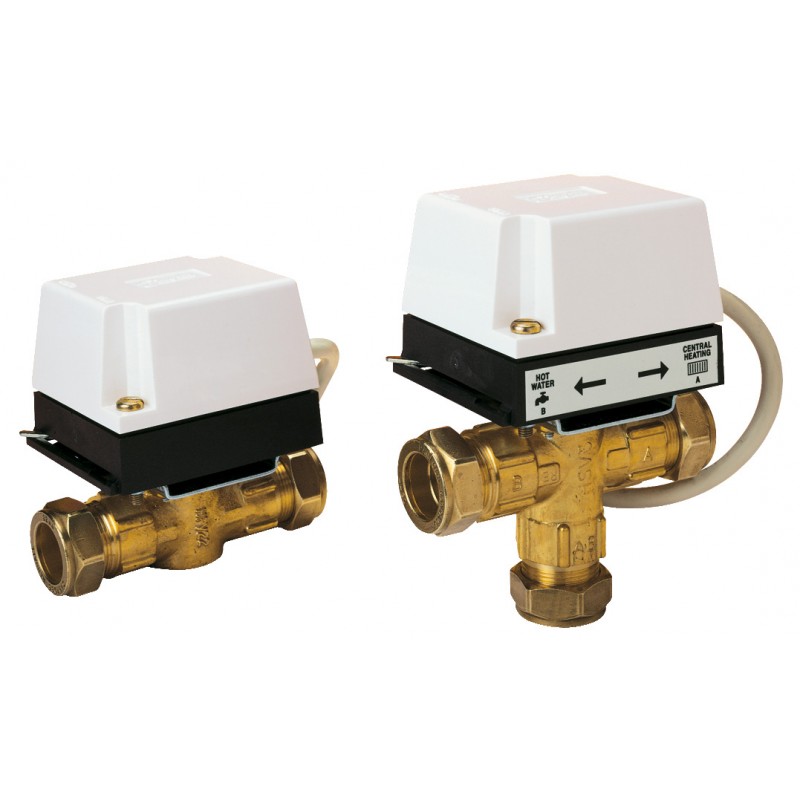

087N6604 DANFOSS HEATING HP1.0 1" BSP 2 Port valve complete
087N6604
DANFOSS HEATING
HP1.0 1" BSP 2 Port valve complete
HP1.0, 1" BSP, Shoe, 2 Port Valve Complete
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲HP1.0, 1" BSP 2 port shoe valve(female) with actuator
Product details
| Gross weight | 1.046 Kilogram |
| Net weight | 1.01 Kilogram |
| Volume | 2.609 Liter |
| EAN | 5013567062102 |
| Type | HP Shoe |
| Product group | Zone Valves |
| Gross weight | 1.046 Kilogram |
| Net weight | 1.01 Kilogram |
| Volume | 2.609 Liter |
| EAN | 5013567062102 |
| Type | HP Shoe |
| Product group | Zone Valves |
| Auxiliary switch | SPST |
| Category name | 2 Port Valve Complete |
| Closing time [sec] [Max] | 20 " |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HP1.0, 1" BSP 2 port shoe valve(female) with actuator |
| Differential pressure [bar] [max] | 0.7 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Flow Control Type | Open/Close |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Kvs values [m³/h] | 15 m³/h |
| Opening time [sec] [Max] | 35 " |
| Operating temperature [°C] [max] | 95 °C |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | HP1.0 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 805fd0d1-61f5-42fc-8ded-aa2944918225 |
| SCIP dossier product name | H-Series Actuators and Valves complete |
| Supply voltage [V] AC | 230 V |
| Tolerance | ±15% |
| Valve Size and Connection | 1" BSP |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
| Auxiliary switch | SPST |
| Category name | 2 Port Valve Complete |
| Closing time [sec] [Max] | 20 " |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HP1.0, 1" BSP 2 port shoe valve(female) with actuator |
| Differential pressure [bar] [max] | 0.7 bar |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Flow Control Type | Open/Close |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Kvs values [m³/h] | 15 m³/h |
| Opening time [sec] [Max] | 35 " |
| Operating temperature [°C] [max] | 95 °C |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | HP1.0 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 805fd0d1-61f5-42fc-8ded-aa2944918225 |
| SCIP dossier product name | H-Series Actuators and Valves complete |
| Supply voltage [V] AC | 230 V |
| Tolerance | ±15% |
| Valve Size and Connection | 1" BSP |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 087N6604 087N6604 EN_087N6609.pdf | 689 Kbytes |
|
