DANFOSS HEATING087N6602 DANFOSS HEATING HP0.75 3/4" BSP 2 Port valve complete

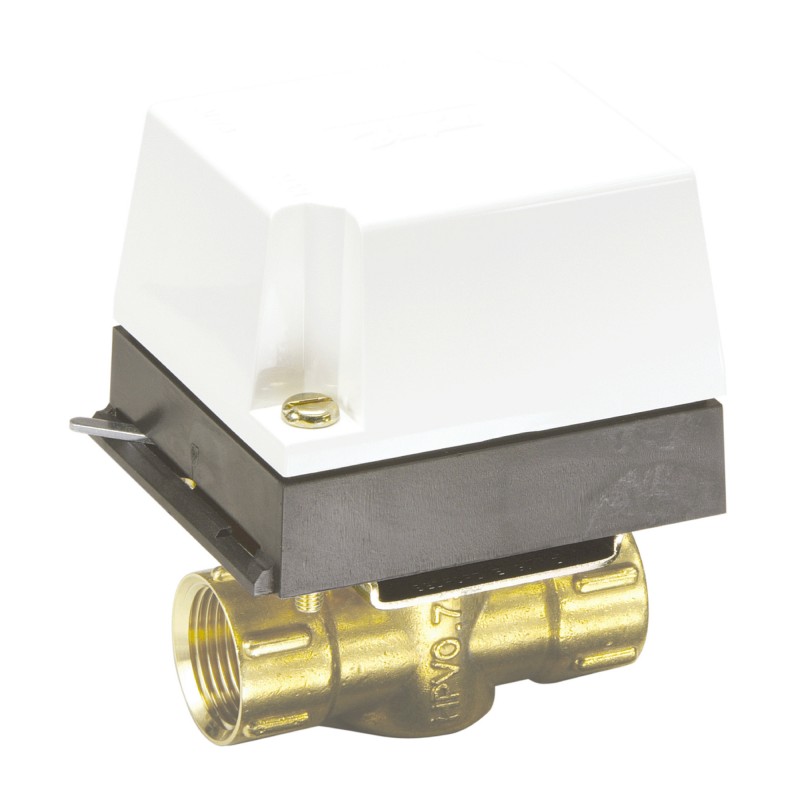

DANFOSS HEATING 087N6602 087N6602 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

087N6602 DANFOSS HEATING HP0.75 3/4" BSP 2 Port valve complete

Reference: 087N6602

Manufacturer: DANFOSS HEATING

Description:

HP0.75 3/4" BSP 2 Port valve complete
HP0.75, ¾" BSP, Shoe, 2 Port Valve Complete

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

HP0.75, 3/4" BSP 2 port shoe valve(female) with actuator

Product details

Gross weight0.904 Kilogram
Net weight0.886 Kilogram
Volume2.443 Liter
EAN5013567062751
TypeHP Shoe
Product groupZone Valves
Gross weight0.904 Kilogram
Net weight0.886 Kilogram
Volume2.443 Liter
EAN5013567062751
TypeHP Shoe
Product groupZone Valves

Auxiliary switchSPST
Category name2 Port Valve Complete
Closing time [sec] [Max]20 "
Closure MethodShoe
Contains batteriesNo
DescriptionHP0.75, 3/4" BSP 2 port shoe valve(female) with actuator
Differential pressure [bar] [max]1 bar
EEE category5 small equipment (any external dimension < 50 cm)
Flow Control TypeOpen/Close
Frequency [Hz]50/60 Hz
In scope of WEEEYes
Kvs values [m³/h]8.2 m³/h
Opening time [sec] [Max]35 "
Operating temperature [°C] [max]95 °C
Output relay rating inductive [A]1 A
Output relay rating resistive [A]3 A
Product descriptionHP0.75
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.805fd0d1-61f5-42fc-8ded-aa2944918225
SCIP dossier product nameH-Series Actuators and Valves complete
Supply voltage [V] AC230 V
Tolerance±15%
Valve Size and Connection¾" BSP
Warranty [Year]2
Working pressure [bar] [Max]10 bar
Auxiliary switchSPST
Category name2 Port Valve Complete
Closing time [sec] [Max]20 "
Closure MethodShoe
Contains batteriesNo
DescriptionHP0.75, 3/4" BSP 2 port shoe valve(female) with actuator
Differential pressure [bar] [max]1 bar
EEE category5 small equipment (any external dimension < 50 cm)
Flow Control TypeOpen/Close
Frequency [Hz]50/60 Hz
In scope of WEEEYes
Kvs values [m³/h]8.2 m³/h
Opening time [sec] [Max]35 "
Operating temperature [°C] [max]95 °C
Output relay rating inductive [A]1 A
Output relay rating resistive [A]3 A
Product descriptionHP0.75
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.805fd0d1-61f5-42fc-8ded-aa2944918225
SCIP dossier product nameH-Series Actuators and Valves complete
Supply voltage [V] AC230 V
Tolerance±15%
Valve Size and Connection¾" BSP
Warranty [Year]2
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
087N6602 087N6602 EN_087N6609.pdf
689 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
