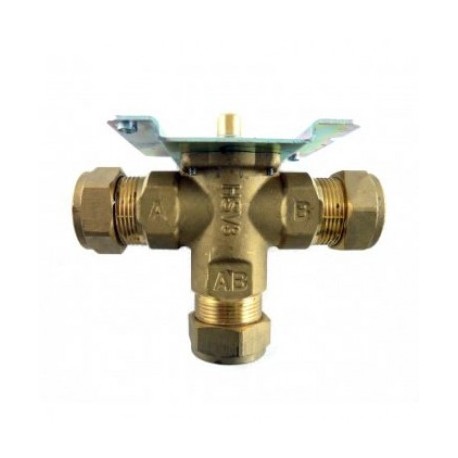

087N6599 DANFOSS HEATING HSV3 22mm 3 Port valve body
087N6599
DANFOSS HEATING
HSV3 22mm 3 Port valve body
HSV3, 22mm external compression, Shoe, 3 Port Valve Body
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲HSV3, 22mm 3 port external compression shoe valve body
Product details
| Gross weight | 0.56 Kilogram |
| Net weight | 0.56 Kilogram |
| Volume | 1.047 Liter |
| EAN | 5013567062324 |
| Type | HSV3 Shoe |
| Product group | Zone Valves |
| Gross weight | 0.56 Kilogram |
| Net weight | 0.56 Kilogram |
| Volume | 1.047 Liter |
| EAN | 5013567062324 |
| Type | HSV3 Shoe |
| Product group | Zone Valves |
| Category name | 3 Port Valve Body |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HSV3, 22mm 3 port external compression shoe valve body |
| Differential pressure [bar] [max] | 1 bar |
| Flow Control Type | N/A |
| Kvs values [m³/h] | 6.8 m³/h |
| Operating temperature [°C] [max] | 95 °C |
| Product description | HSV3 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 118d4a5e-3889-4161-bf50-87ac156c3fbf |
| SCIP dossier product name | H-Series Valves |
| Valve Size and Connection | 22mm external compression |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
| Category name | 3 Port Valve Body |
| Closure Method | Shoe |
| Contains batteries | No |
| Description | HSV3, 22mm 3 port external compression shoe valve body |
| Differential pressure [bar] [max] | 1 bar |
| Flow Control Type | N/A |
| Kvs values [m³/h] | 6.8 m³/h |
| Operating temperature [°C] [max] | 95 °C |
| Product description | HSV3 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 118d4a5e-3889-4161-bf50-87ac156c3fbf |
| SCIP dossier product name | H-Series Valves |
| Valve Size and Connection | 22mm external compression |
| Warranty [Year] | 2 |
| Working pressure [bar] [Max] | 10 bar |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 087N6599 087N6599 EN_087N6609.pdf | 689 Kbytes |
|
