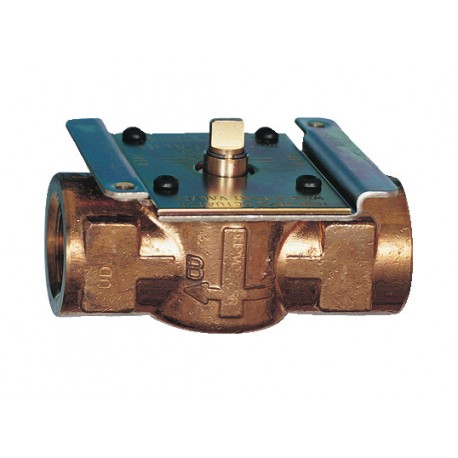

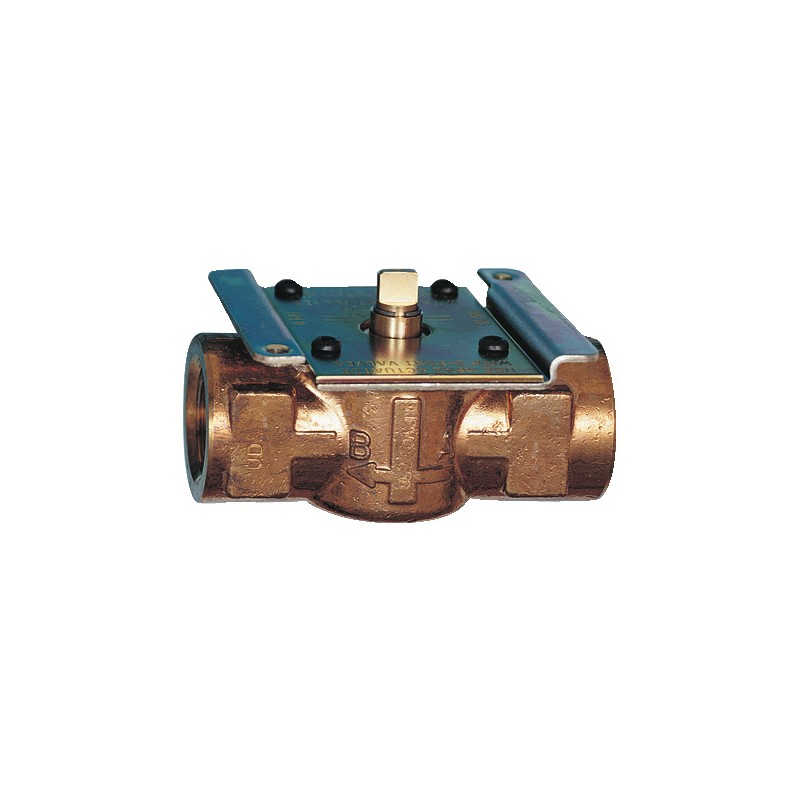

087N6598 DANFOSS HEATING HPV28 28mm 2 Port valve body

Reference: 087N6598

Manufacturer: DANFOSS HEATING

Description:

HPV28 28mm 2 Port valve body
HPV28, 28mm external compression, Shoe, 2 Port Valve Body

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 81,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HPV28, 28mm 2 port external compression shoe valve body

Product details

Gross weight0.75 Kilogram
Net weight0.721 Kilogram
Volume0.994 Liter
EAN5013567062829
TypeHPV Shoe
Product groupZone Valves
Gross weight0.75 Kilogram
Net weight0.721 Kilogram
Volume0.994 Liter
EAN5013567062829
TypeHPV Shoe
Product groupZone Valves

Category name2 Port Valve Body
Closure MethodShoe
Contains batteriesNo
DescriptionHPV28, 28mm 2 port external compression shoe valve body
Differential pressure [bar] [max]0.7 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]15 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV28
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection28mm external compression
Warranty [Year]2
Working pressure [bar] [Max]10 bar
Category name2 Port Valve Body
Closure MethodShoe
Contains batteriesNo
DescriptionHPV28, 28mm 2 port external compression shoe valve body
Differential pressure [bar] [max]0.7 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]15 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV28
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection28mm external compression
Warranty [Year]2
Working pressure [bar] [Max]10 bar
