DANFOSS HEATING087N6597 DANFOSS HEATING HPV22 22mm 2 Port valve body

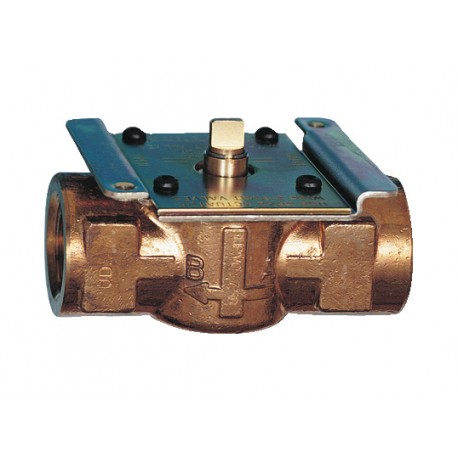

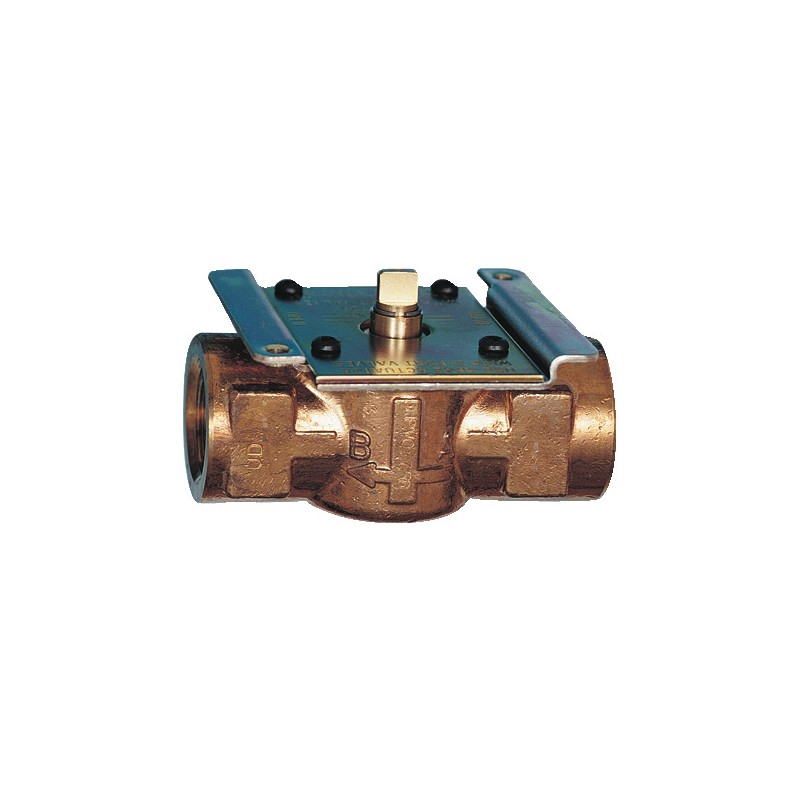

DANFOSS HEATING 087N6597 087N6597 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

087N6597 DANFOSS HEATING HPV22 22mm 2 Port valve body

Reference: 087N6597

Manufacturer: DANFOSS HEATING

Description:

HPV22 22mm 2 Port valve body
HPV22, 22mm external compression, Shoe, 2 Port Valve Body

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 47,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HPV22, 22mm 2 port external compression shoe valve body

Product details

Gross weight0.452 Kilogram
Net weight0.452 Kilogram
Volume1.031 Liter
EAN5013567062225
TypeHPV Shoe
Product groupZone Valves
Gross weight0.452 Kilogram
Net weight0.452 Kilogram
Volume1.031 Liter
EAN5013567062225
TypeHPV Shoe
Product groupZone Valves

Category name2 Port Valve Body
Closure MethodShoe
Contains batteriesNo
DescriptionHPV22, 22mm 2 port external compression shoe valve body
Differential pressure [bar] [max]1 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]8.2 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV22
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection22mm external compression
Warranty [Year]2
Working pressure [bar] [Max]10 bar
Category name2 Port Valve Body
Closure MethodShoe
Contains batteriesNo
DescriptionHPV22, 22mm 2 port external compression shoe valve body
Differential pressure [bar] [max]1 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]8.2 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV22
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection22mm external compression
Warranty [Year]2
Working pressure [bar] [Max]10 bar

DATASHEET - PDF

Title
Size
Type
087N6597 087N6597 EN_087N6609.pdf
689 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
