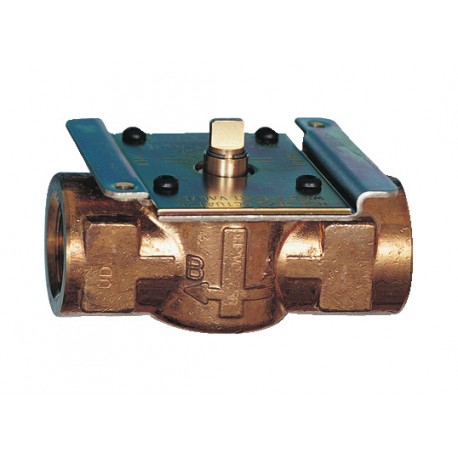

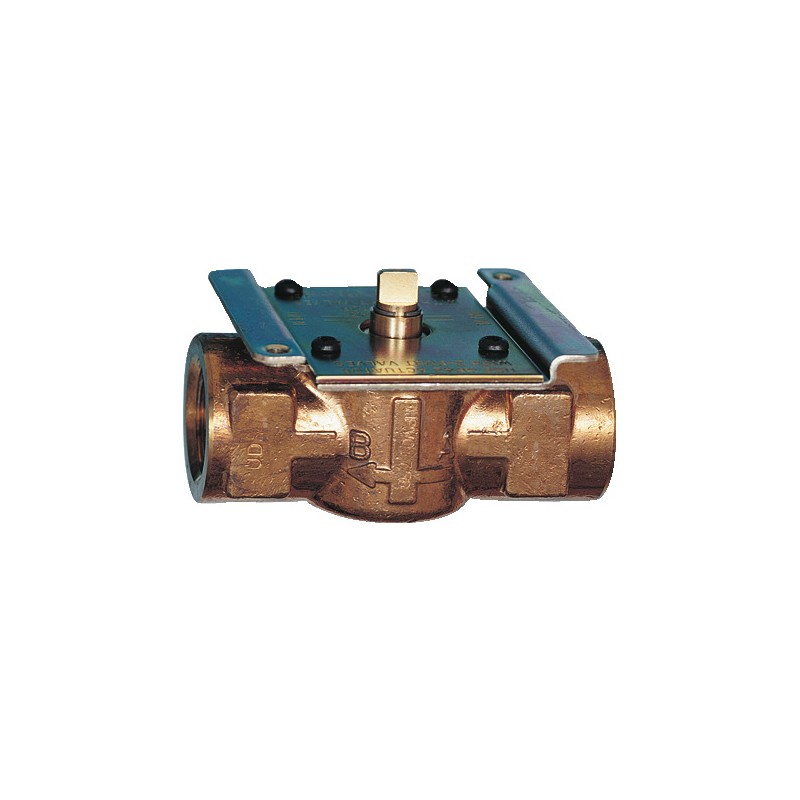

087N6594 DANFOSS HEATING HPV0.75 3/4" BSP 2 Port valve body

Reference: 087N6594

Manufacturer: DANFOSS HEATING

Description:

HPV0.75 3/4" BSP 2 Port valve body
HPV0.75, ¾" BSP, Shoe, 2 Port Valve Body

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

HPV0.75, 3/4" BSP 2 port shoe valve body( female)

Product details

Gross weight0.372 Kilogram
Net weight0.372 Kilogram
Volume1.271 Liter
EAN5013567062775
TypeHPV Shoe
Product groupZone Valves
Gross weight0.372 Kilogram
Net weight0.372 Kilogram
Volume1.271 Liter
EAN5013567062775
TypeHPV Shoe
Product groupZone Valves

Category name2 Port Valve Body
Closure MethodShoe
Contains batteriesNo
DescriptionHPV0.75, 3/4" BSP 2 port shoe valve body( female)
Differential pressure [bar] [max]1 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]8.2 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV0.75
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection¾" BSP
Warranty [Year]2
Working pressure [bar] [Max]10 bar
Category name2 Port Valve Body
Closure MethodShoe
Contains batteriesNo
DescriptionHPV0.75, 3/4" BSP 2 port shoe valve body( female)
Differential pressure [bar] [max]1 bar
Flow Control TypeOpen/Close
Kvs values [m³/h]8.2 m³/h
Operating temperature [°C] [max]95 °C
Product descriptionHPV0.75
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.118d4a5e-3889-4161-bf50-87ac156c3fbf
SCIP dossier product nameH-Series Valves
Valve Size and Connection¾" BSP
Warranty [Year]2
Working pressure [bar] [Max]10 bar
