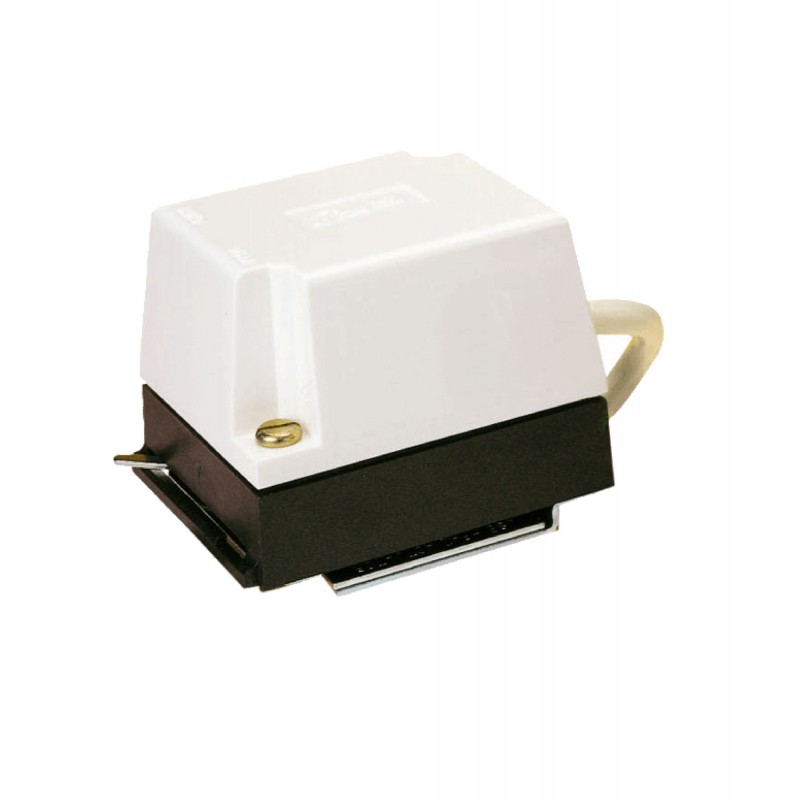

DANFOSS HEATING 087N6589 087N6589 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

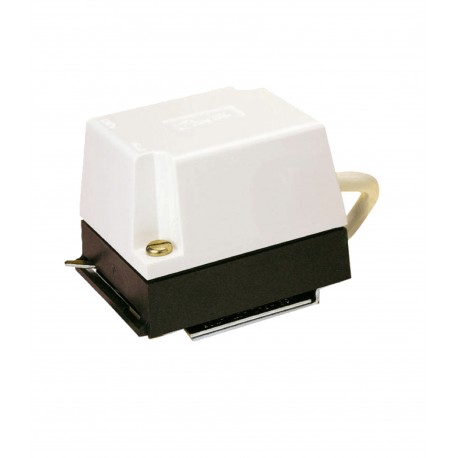

087N6589 DANFOSS HEATING HSA3D 3 Port Diverter Actuator

Name: 087N6589 DANFOSS HEATING HSA3D 3 Port Diverter Actuator
Brand: DANFOSS HEATING
SKU: DAS087N6589
Price: 116.97 USD
Availability: OutOfStock

Reference: 087N6589

Manufacturer: DANFOSS HEATING

Description:

HSA3D 3 Port Diverter Actuator

HSA3D, Diverter, 3 Port Actuator, SPST

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 104,50 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

HSA3D, 3 port diverter valve actuator with SPST type auxiliary switch

Product details

Gross weight	0.522 Kilogram
Net weight	0.522 Kilogram
Volume	1.15 Liter

EAN	5013567262212
Type	HSA3
Product group	Zone Valves

Gross weight	0.522 Kilogram
Net weight	0.522 Kilogram
Volume	1.15 Liter
EAN	5013567262212
Type	HSA3
Product group	Zone Valves

Auxiliary switch	SPST
Category name	3 Port Actuator
Closing time [sec] [Max]	20 "
Closure Method	N/A
Contains batteries	No
Description	HSA3D, 3 port diverter valve actuator with SPST type auxiliary switch
EEE category	5 small equipment (any external dimension < 50 cm)
Flow Control Type	Diverter
Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Opening time [sec] [Max]	35 "

Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Product description	HSA3D
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	b711112f-9ac9-4e54-892f-d1f87f8b1068
SCIP dossier product name	H-Series Actuators
Supply voltage [V] AC	230 V
Tolerance	±15%
Valve Size and Connection	N/A
Warranty [Year]	2

Auxiliary switch	SPST
Category name	3 Port Actuator
Closing time [sec] [Max]	20 "
Closure Method	N/A
Contains batteries	No
Description	HSA3D, 3 port diverter valve actuator with SPST type auxiliary switch
EEE category	5 small equipment (any external dimension < 50 cm)
Flow Control Type	Diverter
Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Opening time [sec] [Max]	35 "
Output relay rating inductive [A]	1 A
Output relay rating resistive [A]	3 A
Product description	HSA3D
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	b711112f-9ac9-4e54-892f-d1f87f8b1068
SCIP dossier product name	H-Series Actuators
Supply voltage [V] AC	230 V
Tolerance	±15%
Valve Size and Connection	N/A
Warranty [Year]	2

DATASHEET - PDF

Title

Size

Type

087N6589 087N6589 EN_087N6609.pdf

689 Kbytes

PDF CATALOGUE DANFOSS HEATING EN

11 Mbytes
