DANFOSS HEATING087N6471 DANFOSS HEATING RET2001B Digi Stat Battery
DANFOSS HEATING 087N6471 087N6471 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

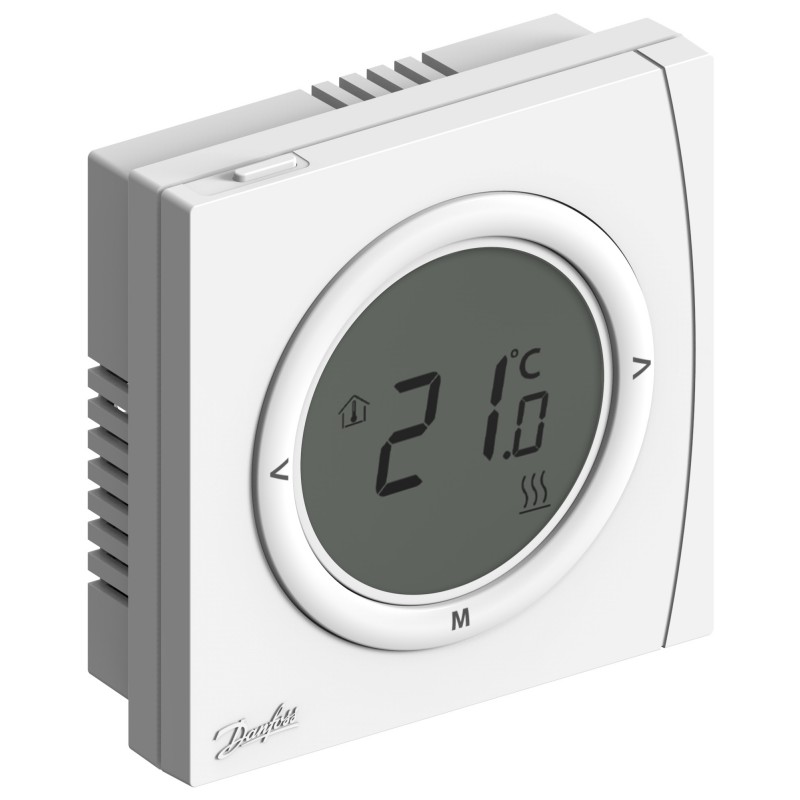

087N6471 DANFOSS HEATING RET2001B Digi Stat Battery

Reference: 087N6471

Manufacturer: DANFOSS HEATING

Description:

RET2001B Digi Stat Battery
RET2001B, Battery, Digital Thermostat

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 61,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

RET2001B, Battery powered digital room electronic thermostat

Product details

Gross weight0.226 Kilogram
Net weight0.2 Kilogram
Volume0.604 Liter
EAN5702425239342
TypeRET2001
Product groupRoom Thermostats, RET
Gross weight0.226 Kilogram
Net weight0.2 Kilogram
Volume0.604 Liter
EAN5702425239342
TypeRET2001
Product groupRoom Thermostats, RET

1 Primary battery SUM weight Kg0.044
1 Primary battery weight Kg0.022
Ambient temperature [°C] [max]40 °C
ApplicationRoom heating
ApprovalCE
UKCA
Back lit displayYes
BackplateCustom Backplate
Ball hardness test [°C]75 °C
Battery lifetime [Years]2 yr
Battery qty2
Battery type2 x AA alkaline batteries
Battery type or NameAlkaline AA (LR6/ZR6)
Category nameDigital Thermostat
CE evaluatedYes
ColourWhite RAL 9010
Contains batteriesYes
Control pollutionDegree 2
Control typeOn/Off load compensation
Depth [mm]30 mm
DescriptionRET2001B, Battery powered digital room electronic thermostat
Design standardEN 60730-2-9
EEE category5 small equipment (any external dimension < 50 cm)
Frost protectionYes
Height [mm]86 mm
In scope of WEEEYes
Installation2 Wire
Label productYes
MaterialABS+PC, non-flammable
Modulating ControlYes
Number of channels1
On/Off controlYes
On/off modulating controlYes
Output relay rating inductive [A]1 A
Output relay rating resistive [A]3 A
Product descriptionRET2001B
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.1076e053-04a2-4646-987d-f4036bc6aef1
SCIP dossier product nameElectronic programmable room thermostat
Status indicatorYes
Supply TypeBattery
Temperature limiter [°C] [Max]35 °C
Temperature limiter [°C] [Min]5 °C
UNSPSC CODE41112209
Warranty [Year]5
1 Primary battery SUM weight Kg0.044
1 Primary battery weight Kg0.022
Ambient temperature [°C] [max]40 °C
ApplicationRoom heating
ApprovalCE
UKCA
Back lit displayYes
BackplateCustom Backplate
Ball hardness test [°C]75 °C
Battery lifetime [Years]2 yr
Battery qty2
Battery type2 x AA alkaline batteries
Battery type or NameAlkaline AA (LR6/ZR6)
Category nameDigital Thermostat
CE evaluatedYes
ColourWhite RAL 9010
Contains batteriesYes
Control pollutionDegree 2
Control typeOn/Off load compensation
Depth [mm]30 mm
DescriptionRET2001B, Battery powered digital room electronic thermostat
Design standardEN 60730-2-9
EEE category5 small equipment (any external dimension < 50 cm)
Frost protectionYes
Height [mm]86 mm
In scope of WEEEYes
Installation2 Wire
Label productYes
MaterialABS+PC, non-flammable
Modulating ControlYes
Number of channels1
On/Off controlYes
On/off modulating controlYes
Output relay rating inductive [A]1 A
Output relay rating resistive [A]3 A
Product descriptionRET2001B
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.1076e053-04a2-4646-987d-f4036bc6aef1
SCIP dossier product nameElectronic programmable room thermostat
Status indicatorYes
Supply TypeBattery
Temperature limiter [°C] [Max]35 °C
Temperature limiter [°C] [Min]5 °C
UNSPSC CODE41112209
Warranty [Year]5

DATASHEET - PDF

Title
Size
Type
087N6471 087N6471 ES_087N7931.pdf
486 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
