DANFOSS HEATING087B1184 DANFOSS HEATING ESMB-12, universal temp. sensor, Pt 1000
DANFOSS HEATING 087B1184 087B1184 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

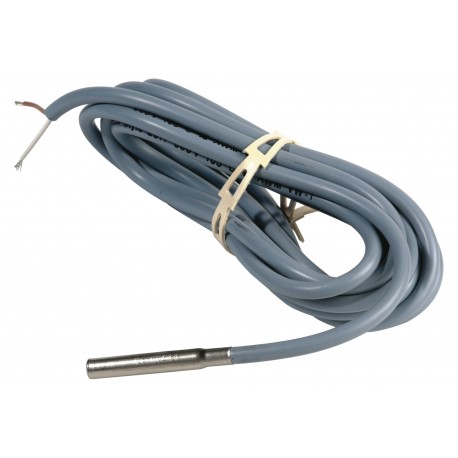

087B1184 DANFOSS HEATING ESMB-12, universal temp. sensor, Pt 1000

Reference: 087B1184

Manufacturer: DANFOSS HEATING

Description:

ESMB-12, universal temp. sensor, Pt 1000
ESMB-12, Pt 1000

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 90,41 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ESMB-12, Pt 1000 Universal sensor

Product details

Gross weight0.086 Kilogram
Net weight0.08 Kilogram
Volume0.225 Liter
EAN5702421064566
TypeESMB-12
Product groupSensors
Gross weight0.086 Kilogram
Net weight0.08 Kilogram
Volume0.225 Liter
EAN5702421064566
TypeESMB-12
Product groupSensors

Body materialStainless steel
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionESMB-12, Pt 1000 Universal sensor
Electrical connections terminals2-wire cable (2 x 0,2 mm2)
EU RoHS complianceYes
EU RoHS exemption clauseNo
Grade of enclosureIP54
Label productYes
Media temperature [°C] [Max]100 °C
Media temperature [°C] [Min]0 °C
Mounting versionFor pipe or flat surface or in pocket
REACH Candidate List substancesNo
Temperature sensor diameter [mm]5.7 mm
Temperature sensor length [mm]45 mm
Temperature sensors typePt 1000
Time constant20 s
Body materialStainless steel
China RoHS complianceOut of scope
Contains batteriesNo
DescriptionESMB-12, Pt 1000 Universal sensor
Electrical connections terminals2-wire cable (2 x 0,2 mm2)
EU RoHS complianceYes
EU RoHS exemption clauseNo
Grade of enclosureIP54
Label productYes
Media temperature [°C] [Max]100 °C
Media temperature [°C] [Min]0 °C
Mounting versionFor pipe or flat surface or in pocket
REACH Candidate List substancesNo
Temperature sensor diameter [mm]5.7 mm
Temperature sensor length [mm]45 mm
Temperature sensors typePt 1000
Time constant20 s

DATASHEET - PDF

Title
Size
Type
087B1184 087B1184 ES_003Z0551.pdf
1 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
