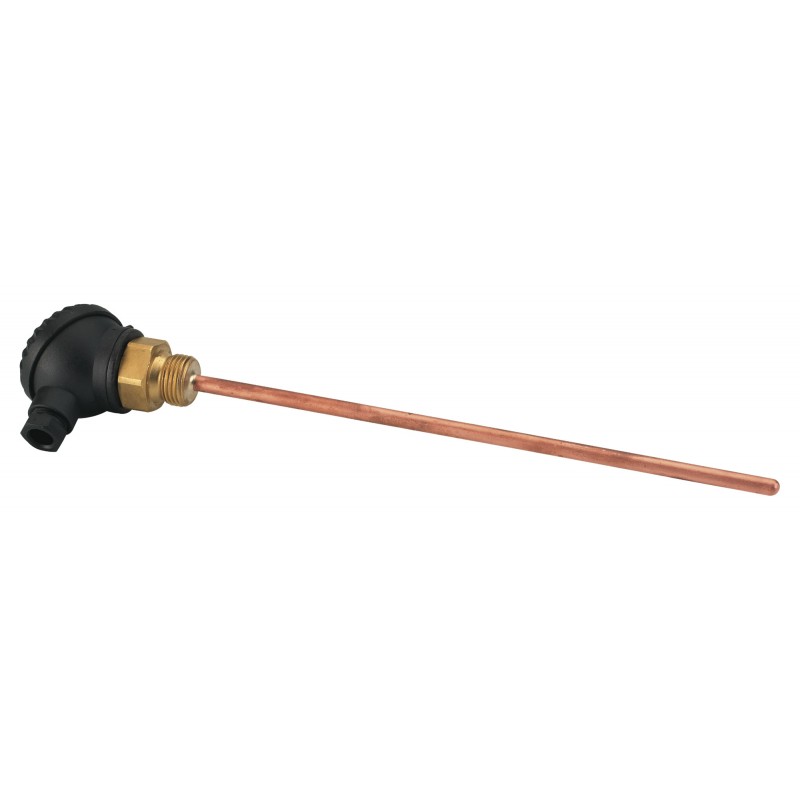

087B1181 DANFOSS HEATING ESMU-250, Immersion temp.sensor (Cu)
087B1181
DANFOSS HEATING
ESMU-250, Immersion temp.sensor (Cu)
ESMU-250, Pt 1000, COPPER COPPER
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲ESMU-250, Pt 1000 immersion sensor, 250 mm, copper
Product details
| Gross weight | 0.167 Kilogram |
| Net weight | 0.166 Kilogram |
| Volume | 0.371 Liter |
| EAN | 5702421064504 |
| Gross weight | 0.167 Kilogram |
| Net weight | 0.166 Kilogram |
| Volume | 0.371 Liter |
| EAN | 5702421064504 |
| Body material | Copper |
| Description | ESMU-250, Pt 1000 immersion sensor, 250 mm, copper |
| Electrical connections terminals | Terminal plug for two wires in head, PG9 cable entry, supplied with product |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Grade of enclosure | IP54 |
| In scope of WEEE and contain batteries | No |
| Label product | Yes |
| Material | COPPER |
| Media temperature [°C] [Max] | 140 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting version | G1/2A and washer (supplied with the product) |
| Pressure nominal [bar] | 25 bar |
| Product group | Sensors |
| REACH Candidate List substances | No |
| Temperature sensor diameter [mm] | 6.6 mm |
| Temperature sensor length [mm] | 250 mm |
| Temperature sensors type | Pt 1000 |
| Time constant | 2 s (water), 7 s (air) |
| Type | ESMU-250 |
| Body material | Copper |
| Description | ESMU-250, Pt 1000 immersion sensor, 250 mm, copper |
| Electrical connections terminals | Terminal plug for two wires in head, PG9 cable entry, supplied with product |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Grade of enclosure | IP54 |
| In scope of WEEE and contain batteries | No |
| Label product | Yes |
| Material | COPPER |
| Media temperature [°C] [Max] | 140 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting version | G1/2A and washer (supplied with the product) |
| Pressure nominal [bar] | 25 bar |
| Product group | Sensors |
| REACH Candidate List substances | No |
| Temperature sensor diameter [mm] | 6.6 mm |
| Temperature sensor length [mm] | 250 mm |
| Temperature sensors type | Pt 1000 |
| Time constant | 2 s (water), 7 s (air) |
| Type | ESMU-250 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 087B1181 087B1181 FR_087B1181.pdf | 397 Kbytes |
|
