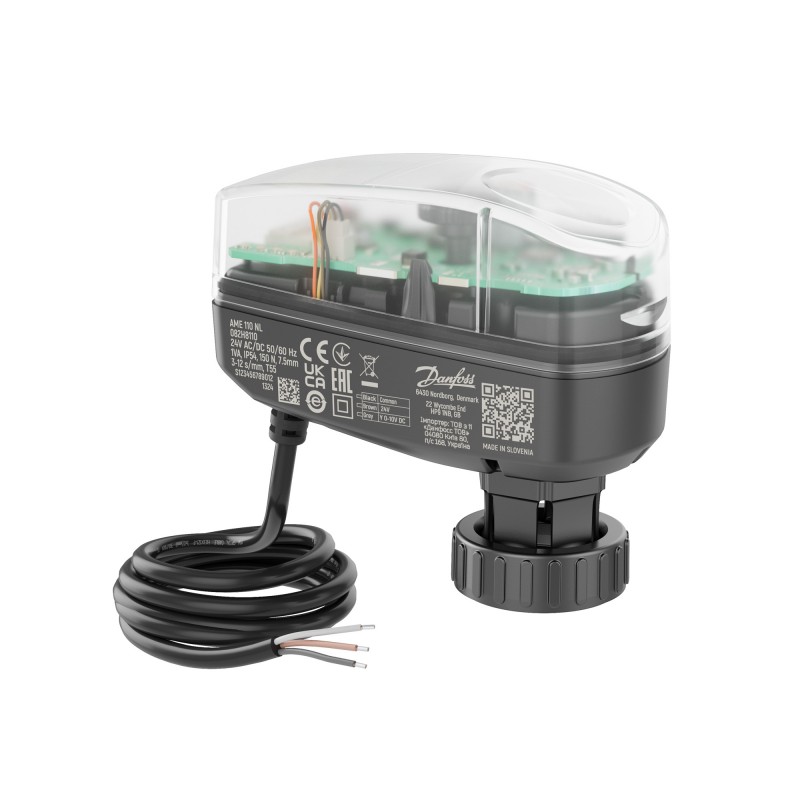

082H8110 DANFOSS HEATING AME 110 NL 24V AC/DC 1.5m cable

Name: 082H8110 DANFOSS HEATING AME 110 NL 24V AC/DC 1.5m cable
Brand: DANFOSS HEATING
SKU: DAS082H8110
Price: 174.40 USD
Availability: OutOfStock

Code: 082H8110

Manufacturer: DANFOSS HEATING

Description:

AME 110 NL 24V AC/DC 1.5m cable

AME 110 NL, 2nd Gen., 24V AC/DC, 1.5m Cable, Actuator for Modulating Control of AB-QM 4.0 DN 15-32 Valves.

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
Reviews

Guarantee, repair and return.

Unit Price: 155,79 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

AME 110 NL, 2nd Gen., 24V AC/DC, 1.5m Cable, Actuator for Modulating Control of AB-QM 4.0 DN 15-32 Valves.

Product details

Gross weight	0.324 Kilogram
Net weight	0.28 Kilogram
Volume	1.637 Liter

EAN	5715162790854
Type	AME 110 NL 0-10V
Product group	Gear actuators

Gross weight	0.324 Kilogram
Net weight	0.28 Kilogram
Volume	1.637 Liter
EAN	5715162790854
Type	AME 110 NL 0-10V
Product group	Gear actuators

Cable length [m]	1.5 m
CE evaluated	Yes
China RoHS compliance	Yes
Compatibility with AB-QM size	DN 15-32
Control characteristic	LOG LIN
Control input signal Y [mA]	0(4) - 20 mA
Control input signal Y [V]	0(2) - 10 V
Control signal type	Modulating
Description	AME 110 NL, 2nd Gen., 24V AC/DC, 1.5m Cable, Actuator for Modulating Control of AB-QM 4.0 DN 15-32 Valves.
EPD available	Yes

EU RoHS compliance	Yes
EU RoHS exemption clause	No
Identical product	082H8118
IP protection class	IP54
Quantity per packing format	1 pc
REACH Candidate List substances	No
Spindle speed [s/mm]	12 s/mm 3 s/mm
Stroke [mm]	7.5 mm
Supply voltage [V] AC	24 V

Cable length [m]	1.5 m
CE evaluated	Yes
China RoHS compliance	Yes
Compatibility with AB-QM size	DN 15-32
Control characteristic	LOG LIN
Control input signal Y [mA]	0(4) - 20 mA
Control input signal Y [V]	0(2) - 10 V
Control signal type	Modulating
Description	AME 110 NL, 2nd Gen., 24V AC/DC, 1.5m Cable, Actuator for Modulating Control of AB-QM 4.0 DN 15-32 Valves.
EPD available	Yes
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Identical product	082H8118
IP protection class	IP54
Quantity per packing format	1 pc
REACH Candidate List substances	No
Spindle speed [s/mm]	12 s/mm 3 s/mm
Stroke [mm]	7.5 mm
Supply voltage [V] AC	24 V
