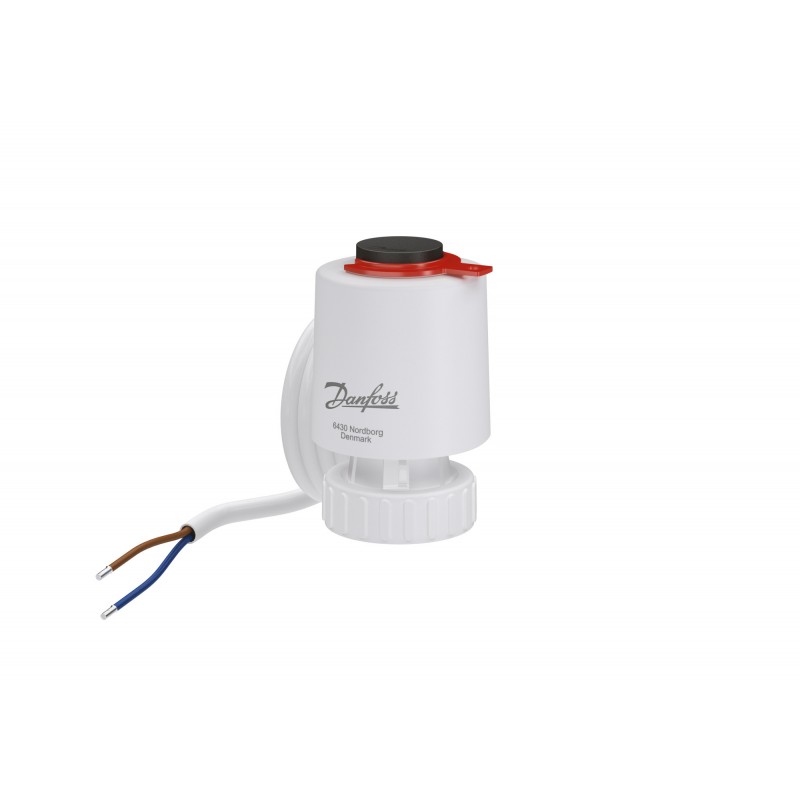

082F1611 DANFOSS HEATING TWA-Q 24V NC 2m halogen free cable
082F1611
DANFOSS HEATING
TWA-Q 24V NC 2m halogen free cable
TWA-Q, Supply voltage [V] AC: 24, 5 mm, Normally closed, 2 m
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲TWA-Q, 24V, 5mm, Normally Closed thermal actuator, 2m halogen free cable
Product details
| Gross weight | 0.214 Kilogram |
| Net weight | 0.209 Kilogram |
| Volume | 0.538 Liter |
| EAN | 5702425243202 |
| Type | TWA-Q |
| Product group | Thermal actuators |
| Gross weight | 0.214 Kilogram |
| Net weight | 0.209 Kilogram |
| Volume | 0.538 Liter |
| EAN | 5702425243202 |
| Type | TWA-Q |
| Product group | Thermal actuators |
| Approval standard | EC EN 60730 |
| Cable length [m] | 2 m |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 10-32 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-Q, 24V, 5mm, Normally Closed thermal actuator, 2m halogen free cable |
| EU RoHS compliance | Yes with exemptions |
| IP protection class | IP54 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 06802140-664a-49c3-9dc7-3da2dd5cc68b |
| SCIP dossier product name | TWA-Q |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
| Approval standard | EC EN 60730 |
| Cable length [m] | 2 m |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 10-32 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-Q, 24V, 5mm, Normally Closed thermal actuator, 2m halogen free cable |
| EU RoHS compliance | Yes with exemptions |
| IP protection class | IP54 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 06802140-664a-49c3-9dc7-3da2dd5cc68b |
| SCIP dossier product name | TWA-Q |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 082F1611 082F1611 ES_082F1604.pdf | 1008 Kbytes |
|
