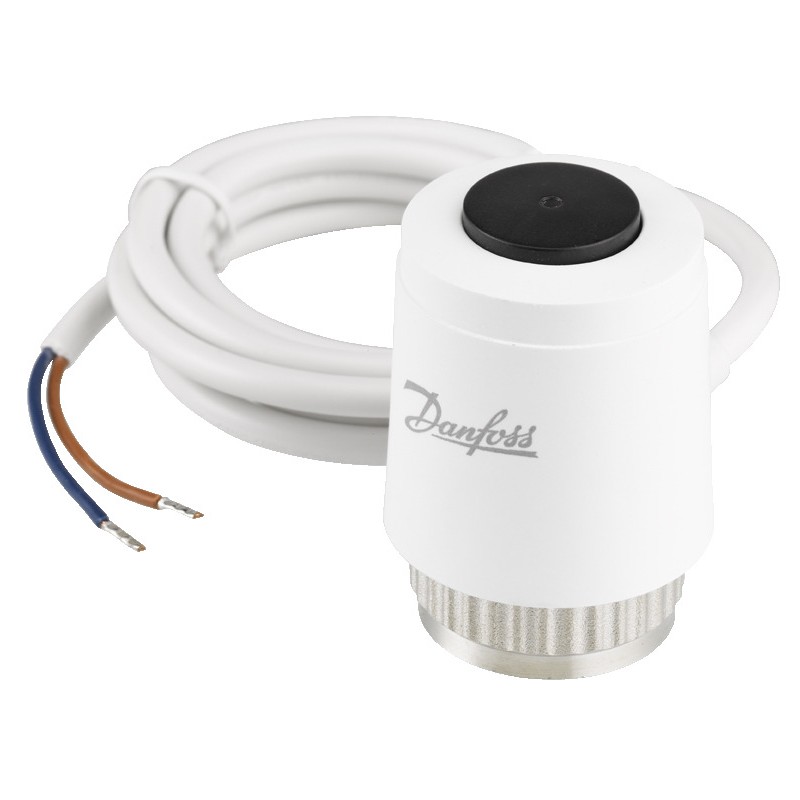

082F1384 DANFOSS HEATING TWA-Z 24V NC 5m halogen free
Reference: 082F1384
Manufacturer: DANFOSS HEATING
Description:
TWA-Z 24V NC 5m halogen free
TWA-Z HF, Supply voltage [V] AC: 24, 2.80 mm, Normally closed, 5.00 m
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
TWA-Z, 24 V, 2.8 mm, Normally Closed thermal actuator, 5 m (halogen-free)
Product details
| Gross weight | 0.501 Kilogram |
| Net weight | 0.501 Kilogram |
| Volume | 0.867 Liter |
| EAN | 5702420122144 |
| Gross weight | 0.501 Kilogram |
| Net weight | 0.501 Kilogram |
| Volume | 0.867 Liter |
| EAN | 5702420122144 |
| Approval standard | EC EN 60730 |
| Cable length [m] | 5 m |
| Compatibility with AB-QM size | DN 10-32 |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-Z, 24 V, 2.8 mm, Normally Closed thermal actuator, 5 m (halogen-free) |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP41 |
| Product group | Thermal actuators |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 74181855-d0a7-446c-aa86-4e8550dffeea |
| SCIP dossier product name | "TWA-Z" |
| Stroke [mm] | 2.8 mm |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | TWA-Z HF |
| Approval standard | EC EN 60730 |
| Cable length [m] | 5 m |
| Compatibility with AB-QM size | DN 10-32 |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-Z, 24 V, 2.8 mm, Normally Closed thermal actuator, 5 m (halogen-free) |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP41 |
| Product group | Thermal actuators |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 74181855-d0a7-446c-aa86-4e8550dffeea |
| SCIP dossier product name | "TWA-Z" |
| Stroke [mm] | 2.8 mm |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | TWA-Z HF |
DATASHEET - PDF
