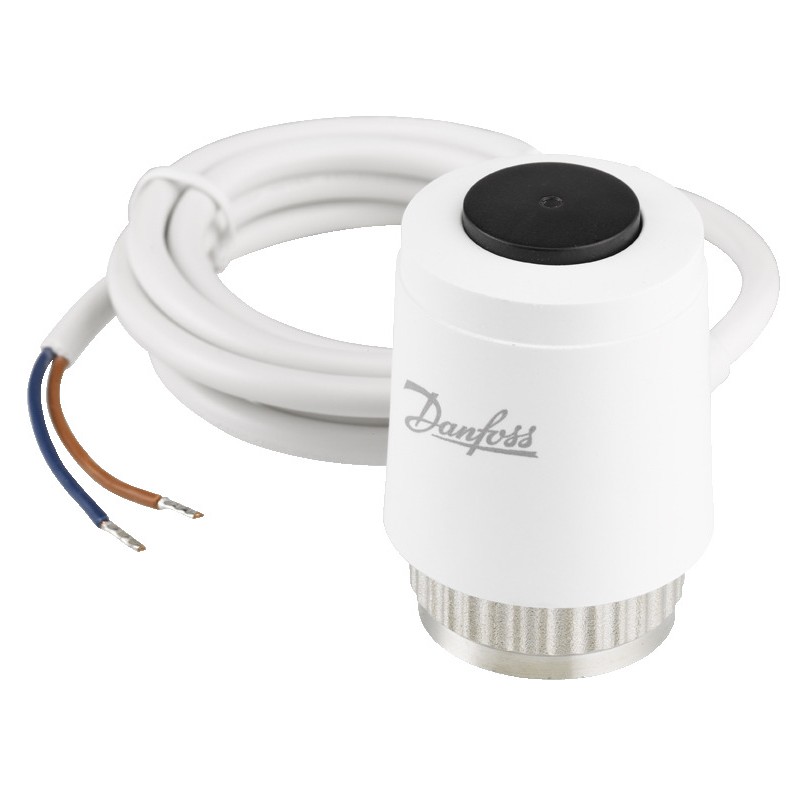

082F1382 DANFOSS HEATING TWA-Z 230V NC 1,2M halogen free
082F1382
DANFOSS HEATING
TWA-Z 230V NC 1,2M halogen free
TWA-Z HF, Supply voltage [V] AC: 230, 2.80 mm, Normally closed, 1.20 m
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲TWA-Z, 230 V, 2.8 mm, Normally Closed thermal actuator, 1,2 m (halogen-free)
Product details
| Gross weight | 0.188 Kilogram |
| Net weight | 0.151 Kilogram |
| Volume | 0.465 Liter |
| EAN | 5702420122120 |
| Gross weight | 0.188 Kilogram |
| Net weight | 0.151 Kilogram |
| Volume | 0.465 Liter |
| EAN | 5702420122120 |
| Approval standard | EC EN 60730 |
| Cable length [m] | 1.2 m |
| Compatibility with AB-QM size | DN 10-32 |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-Z, 230 V, 2.8 mm, Normally Closed thermal actuator, 1,2 m (halogen-free) |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP41 |
| Product group | Thermal actuators |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 74181855-d0a7-446c-aa86-4e8550dffeea |
| SCIP dossier product name | "TWA-Z" |
| Stroke [mm] | 2.8 mm |
| Supply voltage [V] AC | 230 V |
| Type | TWA-Z HF |
| Approval standard | EC EN 60730 |
| Cable length [m] | 1.2 m |
| Compatibility with AB-QM size | DN 10-32 |
| Control signal type | On/off and PWM |
| De-energized position | Normally closed |
| Description | TWA-Z, 230 V, 2.8 mm, Normally Closed thermal actuator, 1,2 m (halogen-free) |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP41 |
| Product group | Thermal actuators |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 74181855-d0a7-446c-aa86-4e8550dffeea |
| SCIP dossier product name | "TWA-Z" |
| Stroke [mm] | 2.8 mm |
| Supply voltage [V] AC | 230 V |
| Type | TWA-Z HF |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 082F1382 082F1382 ES_082F1380.pdf | 510 Kbytes |
|
