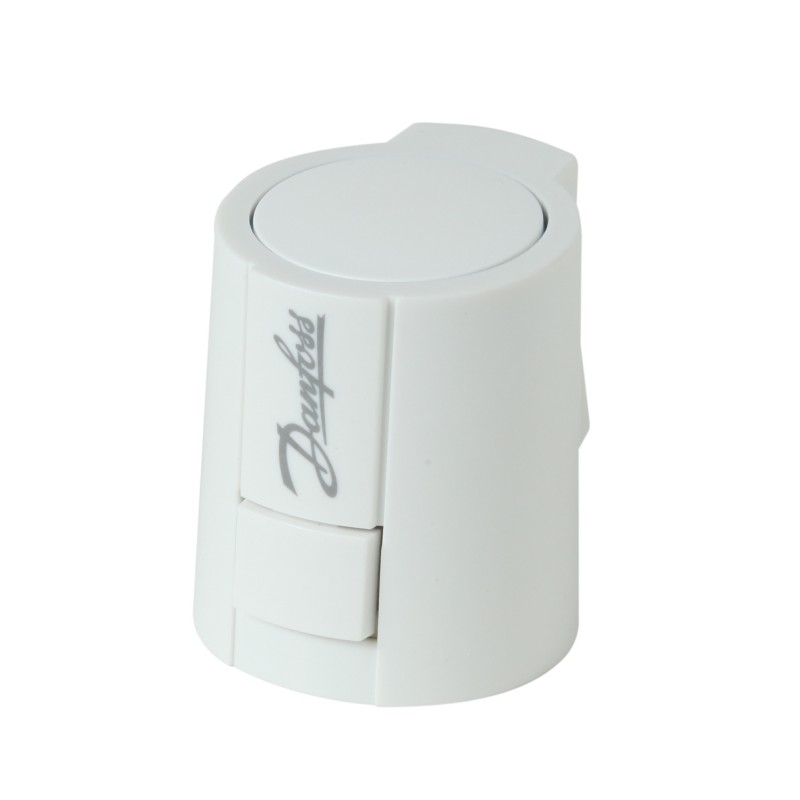

082F1153 DANFOSS HEATING ABN A5 230V 5mm NO Socket
082F1153
DANFOSS HEATING
ABN A5 230V 5mm NO Socket
ABN A5 On/Off, Supply voltage [V] AC: 230, 5 mm, Normally open
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲ABN A5, 230V, 5 mm, Normally Open thermal actuator
Product details
| Gross weight | 0.14 Kilogram |
| Net weight | 0.14 Kilogram |
| Volume | 0.338 Liter |
| EAN | 5702420122267 |
| Type | ABN A5 On/Off |
| Product group | Thermal actuators |
| Gross weight | 0.14 Kilogram |
| Net weight | 0.14 Kilogram |
| Volume | 0.338 Liter |
| EAN | 5702420122267 |
| Type | ABN A5 On/Off |
| Product group | Thermal actuators |
| Approval standard | EC EN 60730 UL 60730 |
| Cable included | No |
| Cable length [m] | 0 m |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 10-32 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally open |
| Description | ABN A5, 230V, 5 mm, Normally Open thermal actuator |
| EU RoHS compliance | Yes with exemptions |
| IP protection class | IP54 |
| Label product | Yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8e26f954-ad08-4e08-a2a5-aa651124456b |
| SCIP dossier product name | 082F1153 |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 230 V |
| Approval standard | EC EN 60730 UL 60730 |
| Cable included | No |
| Cable length [m] | 0 m |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 10-32 |
| Contains batteries | No |
| Control signal type | On/off and PWM |
| De-energized position | Normally open |
| Description | ABN A5, 230V, 5 mm, Normally Open thermal actuator |
| EU RoHS compliance | Yes with exemptions |
| IP protection class | IP54 |
| Label product | Yes |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8e26f954-ad08-4e08-a2a5-aa651124456b |
| SCIP dossier product name | 082F1153 |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 230 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 082F1153 082F1153 ES_082F1147.pdf | 838 Kbytes |
|
