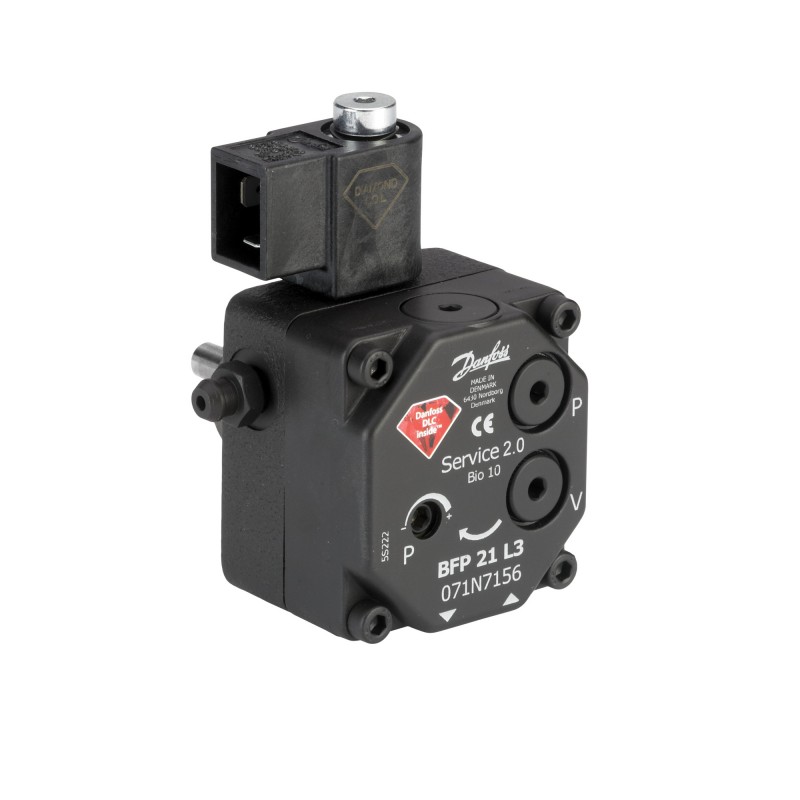

071N7156 DANFOSS HEATING Oil pump BFP 21 L3, 1 pipe
071N7156
DANFOSS HEATING
10
Oil pump BFP 21 L3L+R, 220 - 230V AC
Oil pump BFP 21 L3, 1 pipe
Pumps, BFP 21, Biofuel blend: 10
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Product Type: BFP 21, Biofuel blend: 10, Rotation: L, Nozzle/pressure outlet: L + R, Coil voltage [V]: 220 - 230, AC
Product details
| Gross weight | 1.196 Kilogram |
| Net weight | 1.186 Kilogram |
| Volume | 2.527 Liter |
| EAN | 5702425156274 |
| Type | BFP 21 |
| Product group | Pumps |
| Gross weight | 1.196 Kilogram |
| Net weight | 1.186 Kilogram |
| Volume | 2.527 Liter |
| EAN | 5702425156274 |
| Type | BFP 21 |
| Product group | Pumps |
| Rotation | L |
| 1 or 2 stage | 1 |
| Actuator type | NC |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko DIN CERTCO |
| Biofuel blend | 10 |
| Capacity [l/h] | 24 L/h |
| Capacity group | 0-24 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Contains batteries | No |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | Oil pump BFP 21 L3L+R, 220 - 230V AC |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)-I 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| Nozzle/pressure outlet | L + R |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Multi pack |
| Pipe connection | 1 pipe |
| Power consumption [W] | 42 W |
| Pressure [bar] [Max] | 20 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8c6e1b21-fd70-4d90-8ea1-c4517e720043 |
| SCIP dossier product name | Oil pump BFP 21 L3 - Service |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| UL evaluated | Out of scope |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
| Rotation | L |
| 1 or 2 stage | 1 |
| Actuator type | NC |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko DIN CERTCO |
| Biofuel blend | 10 |
| Capacity [l/h] | 24 L/h |
| Capacity group | 0-24 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Contains batteries | No |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | Oil pump BFP 21 L3L+R, 220 - 230V AC |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)-I 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| Nozzle/pressure outlet | L + R |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Multi pack |
| Pipe connection | 1 pipe |
| Power consumption [W] | 42 W |
| Pressure [bar] [Max] | 20 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8c6e1b21-fd70-4d90-8ea1-c4517e720043 |
| SCIP dossier product name | Oil pump BFP 21 L3 - Service |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| UL evaluated | Out of scope |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 071N7156 071N7156 EN_071N7126.pdf | 1 Mbytes |
|
