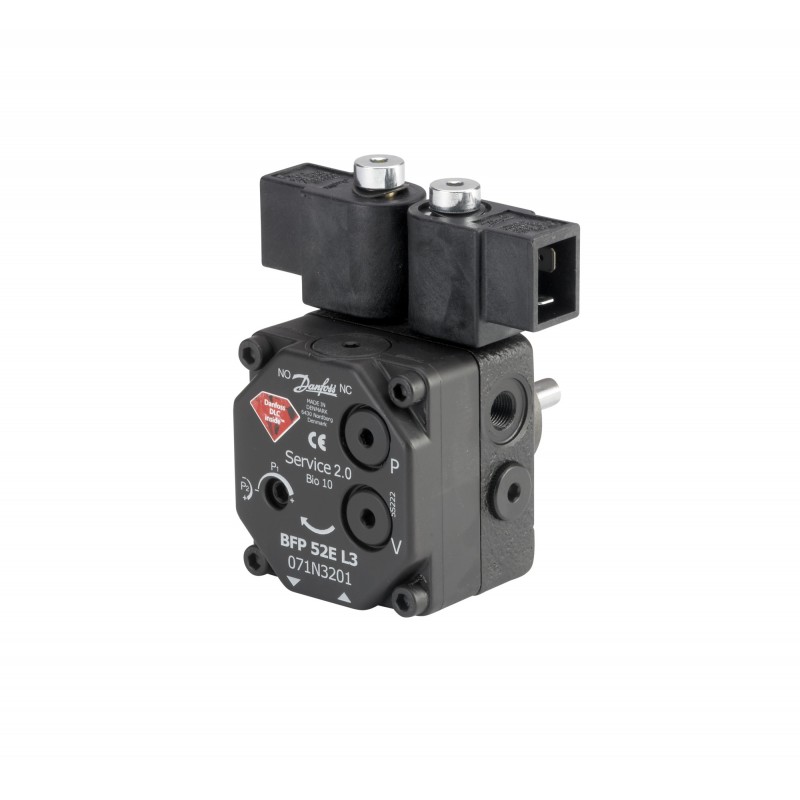

071N3215 DANFOSS HEATING Oil pump BFP 52E L3 LE S
071N3215
DANFOSS HEATING
10
Oil pump BFP 52E L3 LE S
Pumps, BFP 52 LE-S, Biofuel blend: 10
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Product Type: BFP 52 LE-S, Biofuel blend: 10, Rotation: L, Nozzle/pressure outlet: L, Coil voltage [V]: 220 - 230, AC
Product details
| Gross weight | 1.286 Kilogram |
| Net weight | 1.208 Kilogram |
| Volume | 2.002 Liter |
| EAN | 5702425156458 |
| Type | BFP 52 LE-S |
| Product group | Pumps |
| Gross weight | 1.286 Kilogram |
| Net weight | 1.208 Kilogram |
| Volume | 2.002 Liter |
| EAN | 5702425156458 |
| Type | BFP 52 LE-S |
| Product group | Pumps |
| Rotation | L |
| 1 or 2 stage | 2 |
| Actuator type | NC+NO |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko DIN CERTCO |
| Biofuel blend | 10 |
| Capacity [l/h] | 16 L/h |
| Capacity group | 0-16 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Contains batteries | No |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | BFP 52E L3L LE-S, SERVICE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)-I 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Factory pressure setting stage 2 [Bar] | 13 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| NO type | Use with NO coil |
| Nozzle/pressure outlet | L |
| Number of stages | 2 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Multi pack |
| Pipe connection | 2 pipes |
| Power consumption [W] | 45 W |
| Pressure [bar] [Max] | 25 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Pressure stage 2 [bar] [Max] | 25 bar |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7faf937f-86f0-4ffa-8ad8-55cec2fb583a |
| SCIP dossier product name | Oil pump BFP 52E L3 LE S |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| UL evaluated | Out of scope |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
| Rotation | L |
| 1 or 2 stage | 2 |
| Actuator type | NC+NO |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko DIN CERTCO |
| Biofuel blend | 10 |
| Capacity [l/h] | 16 L/h |
| Capacity group | 0-16 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Contains batteries | No |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | BFP 52E L3L LE-S, SERVICE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)-I 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Factory pressure setting stage 2 [Bar] | 13 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| NO type | Use with NO coil |
| Nozzle/pressure outlet | L |
| Number of stages | 2 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Multi pack |
| Pipe connection | 2 pipes |
| Power consumption [W] | 45 W |
| Pressure [bar] [Max] | 25 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Pressure stage 2 [bar] [Max] | 25 bar |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7faf937f-86f0-4ffa-8ad8-55cec2fb583a |
| SCIP dossier product name | Oil pump BFP 52E L3 LE S |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| UL evaluated | Out of scope |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 071N3215 071N3215 ES_071N3136.pdf | 980 Kbytes |
|
