DANFOSS HEATING071N3214 DANFOSS HEATING Fuel pump BFP B 52 L3L LE-S

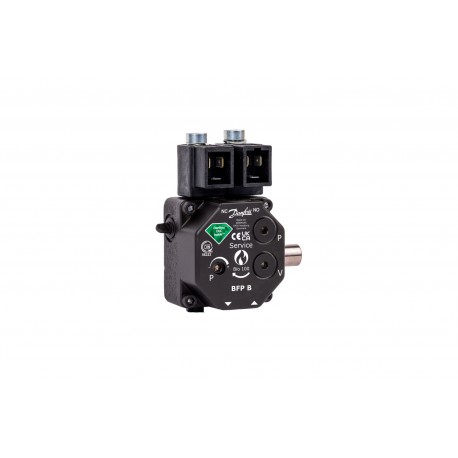

DANFOSS HEATING 071N3214 071N3214 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

071N3214 DANFOSS HEATING Fuel pump BFP B 52 L3L LE-S

Reference: 071N3214

Manufacturer: DANFOSS HEATING

Description:

Fuel pump BFP B 52 L3L LE-S
Oil pump BFP 52E L3 LE S
Pumps, BFP 52 LE-S, Biofuel blend: 100

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 2.035,68 €

Unit Price: 203,568 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product Type: BFP 52 LE-S, Biofuel blend: 100, Rotation: L, Nozzle/pressure outlet: L, Coil voltage [V]: 220 - 230, AC

Product details

Gross weight1.292 Kilogram
Net weight1.247 Kilogram
Volume2.002 Liter
EAN5702425156441
TypeBFP 52 LE-S
Product groupPumps
Gross weight1.292 Kilogram
Net weight1.247 Kilogram
Volume2.002 Liter
EAN5702425156441
TypeBFP 52 LE-S
Product groupPumps

RotationL
1 or 2 stage2
Actuator typeNC+NO
Ambient temperature [°C] [max]70 °C
Ambient temperature [°C] [min]-20 °C
ApprovalCE
UKCA
Intertek Semko
Biofuel blend100
Capacity [l/h]24 L/h
Capacity group0-24
Capacity range [l/h] [Max]24 L/h
Capacity range [l/h] [Min]0 L/h
CE evaluatedYes
China RoHS complianceYes
Closing functionCut-off
Coil consumption [W]9 W
Coil CurrentAC
Coil voltage [V]220 - 230
CommentsRotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump.
Contains batteriesNo
Definition point [l/h]2800 min-1, 10 bar, 4.3 cSt
DescriptionFuel pump BFP B 52 L3L LE-S
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)-I
6(c)
Factory pressure setting [bar]10 bar
Factory pressure setting stage 2 [Bar]13 bar
Filter area [cm²]11 cm²
Filter grade [µm]200
Filter typeCartridge
Flats/key on the shaft1 flat
Grade of enclosureIP40
Media temperature [°C] [Max]70 °C
Media temperature [°C] [Min]0 °C
NO typeUse with NC coil
Nozzle/pressure outletL
Number of stages2
Oil pump speed [op/min]3450 op/min
Oil typeBio/Kerosene/Light
Packing formatMulti pack
Pipe connection2 pipes
Power consumption [W]45 W
Pressure [bar] [Max]25 bar
Pressure [bar] [Min]7 bar
Pressure feed line [bar] [Max]2 bar
Pressure kerosene [bar] [Max]12 bar
Pressure stage 2 [bar] [Max]25 bar
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.bada8532-189c-48fa-a48f-b76db19afca5
SCIP dossier product nameOil pump BFP LE S - Service
SerieBFP
Shaft diameter [mm]8 mm
Speed [rpm] [Max]3450 rpm
Speed [rpm] [Min]2400 rpm
Starting torque [Nm] [Max]0.1 N-m
Storage temperature [°C] [Max]70 °C
Storage temperature [°C] [Min]-20 °C
Suction Line Vacuum [bar] [Max]0.4 bar
Supply peak voltage [V] [Max]253 V
Supply peak voltage [V] [Min]207 V
Supply voltage [V]230 V
Supply voltage [V] [Max]230 V
Supply voltage [V] [Min]220 V
UL evaluatedOut of scope
Viscosity [cSt] [Max]12 cSt
Viscosity [cSt] [Min]1.3 cSt
RotationL
1 or 2 stage2
Actuator typeNC+NO
Ambient temperature [°C] [max]70 °C
Ambient temperature [°C] [min]-20 °C
ApprovalCE
UKCA
Intertek Semko
Biofuel blend100
Capacity [l/h]24 L/h
Capacity group0-24
Capacity range [l/h] [Max]24 L/h
Capacity range [l/h] [Min]0 L/h
CE evaluatedYes
China RoHS complianceYes
Closing functionCut-off
Coil consumption [W]9 W
Coil CurrentAC
Coil voltage [V]220 - 230
CommentsRotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump.
Contains batteriesNo
Definition point [l/h]2800 min-1, 10 bar, 4.3 cSt
DescriptionFuel pump BFP B 52 L3L LE-S
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)-I
6(c)
Factory pressure setting [bar]10 bar
Factory pressure setting stage 2 [Bar]13 bar
Filter area [cm²]11 cm²
Filter grade [µm]200
Filter typeCartridge
Flats/key on the shaft1 flat
Grade of enclosureIP40
Media temperature [°C] [Max]70 °C
Media temperature [°C] [Min]0 °C
NO typeUse with NC coil
Nozzle/pressure outletL
Number of stages2
Oil pump speed [op/min]3450 op/min
Oil typeBio/Kerosene/Light
Packing formatMulti pack
Pipe connection2 pipes
Power consumption [W]45 W
Pressure [bar] [Max]25 bar
Pressure [bar] [Min]7 bar
Pressure feed line [bar] [Max]2 bar
Pressure kerosene [bar] [Max]12 bar
Pressure stage 2 [bar] [Max]25 bar
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.bada8532-189c-48fa-a48f-b76db19afca5
SCIP dossier product nameOil pump BFP LE S - Service
SerieBFP
Shaft diameter [mm]8 mm
Speed [rpm] [Max]3450 rpm
Speed [rpm] [Min]2400 rpm
Starting torque [Nm] [Max]0.1 N-m
Storage temperature [°C] [Max]70 °C
Storage temperature [°C] [Min]-20 °C
Suction Line Vacuum [bar] [Max]0.4 bar
Supply peak voltage [V] [Max]253 V
Supply peak voltage [V] [Min]207 V
Supply voltage [V]230 V
Supply voltage [V] [Max]230 V
Supply voltage [V] [Min]220 V
UL evaluatedOut of scope
Viscosity [cSt] [Max]12 cSt
Viscosity [cSt] [Min]1.3 cSt
