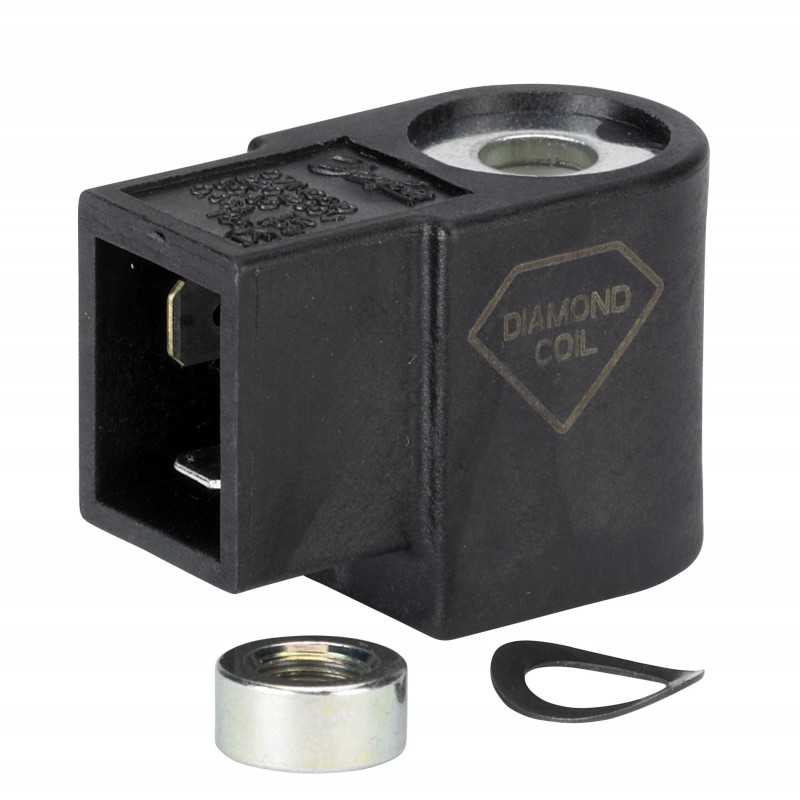

071N1006 DANFOSS HEATING NC T85 coil service kit
071N1006
DANFOSS HEATING
45
NC T85 coil service kit
COIL T85 230 V AC
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲COIL T85 230 V AC
Product details
| Gross weight | 0.078 Kilogram |
| Net weight | 0.074 Kilogram |
| Volume | 0.107 Liter |
| EAN | 5702425114168 |
| Type | Accessories for BFP |
| Product group | Accessories for Burner Components |
| Gross weight | 0.078 Kilogram |
| Net weight | 0.074 Kilogram |
| Volume | 0.107 Liter |
| EAN | 5702425114168 |
| Type | Accessories for BFP |
| Product group | Accessories for Burner Components |
| Ambient temperature [°C] [max] | 85 °C |
| Ambient temperature [°C] [min] | -20 °C |
| CE evaluated | Out of scope |
| China RoHS compliance | Yes |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] | 220 - 230 |
| Contains batteries | No |
| Current type | AC |
| Description | COIL T85 230 V AC |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Grade of enclosure | IP40 |
| Packing format | Multi pack |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ca2c7efc-da5b-4ebc-8e19-1649b28a0a20 |
| SCIP dossier product name | NC T85 coil service kit |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| UL evaluated | Out of scope |
| Ambient temperature [°C] [max] | 85 °C |
| Ambient temperature [°C] [min] | -20 °C |
| CE evaluated | Out of scope |
| China RoHS compliance | Yes |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] | 220 - 230 |
| Contains batteries | No |
| Current type | AC |
| Description | COIL T85 230 V AC |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Grade of enclosure | IP40 |
| Packing format | Multi pack |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ca2c7efc-da5b-4ebc-8e19-1649b28a0a20 |
| SCIP dossier product name | NC T85 coil service kit |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| UL evaluated | Out of scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 071N1006 071N1006 DE_071N0604.pdf | 774 Kbytes |
|
