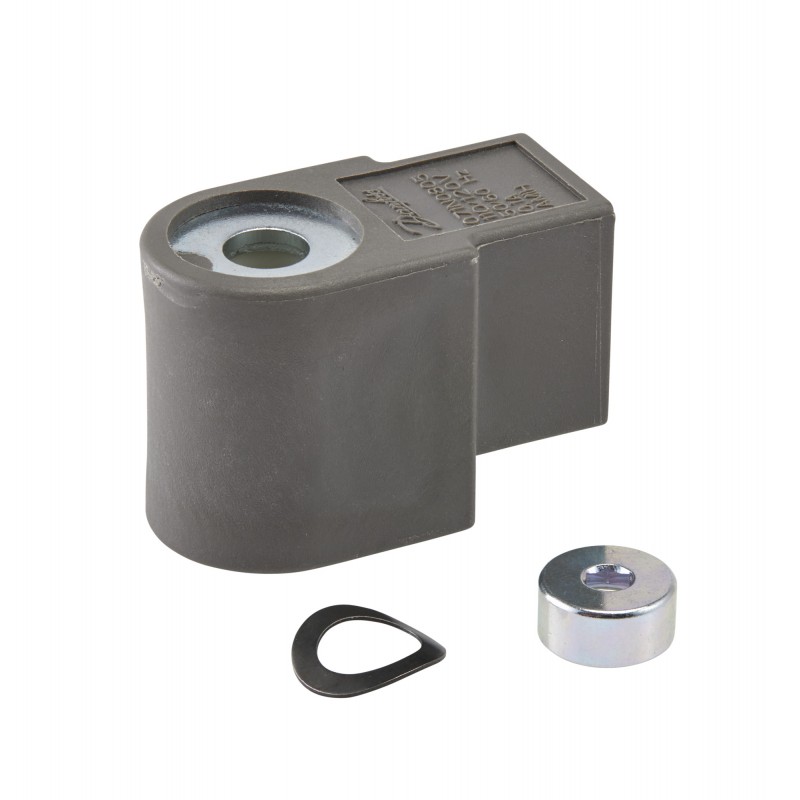

071N0061 DANFOSS HEATING Coil set

Name: 071N0061 DANFOSS HEATING Coil set
Brand: DANFOSS HEATING
SKU: DAS071N0061
Price: 52.84 USD
Availability: OutOfStock

Reference: 071N0061

Manufacturer: DANFOSS HEATING

Description:

Coil set

COIL 110/120 V AC.

Categories:

DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 2.124,12 €

Unit Price: 47,2026 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

COIL 110/120 V AC.

Product details

Gross weight	0.072 Kilogram
Net weight	0.067 Kilogram
Volume	0.205 Liter

EAN	5702425015458
Type	Accessories for BFP
Product group	Accessories for Burner Components

Gross weight	0.072 Kilogram
Net weight	0.067 Kilogram
Volume	0.205 Liter
EAN	5702425015458
Type	Accessories for BFP
Product group	Accessories for Burner Components

Ambient temperature [°C] [max]	80 °C
Ambient temperature [°C] [min]	-10 °C
CE evaluated	Out of scope
China RoHS compliance	Yes
Coil consumption [W]	9 W
Coil Current	AC
Coil voltage [V]	110-120
Contains batteries	No
Content	Coil, nut and washer.
Current type	AC
Description	COIL 110/120 V AC.
EU RoHS compliance	Yes
EU RoHS exemption clause	No

Grade of enclosure	IP40
Packing format	Multi pack
Quantity per packing format	45 pc
REACH Candidate List substances	No
Storage temperature [°C] [Max]	70 °C
Storage temperature [°C] [Min]	-20 °C
Supply peak voltage [V] [Max]	127.2 V
Supply peak voltage [V] [Min]	104.4 V
Supply voltage [V]	115 V
Supply voltage [V] [Max]	120 V
Supply voltage [V] [Min]	110 V
UL evaluated	Out of scope

Ambient temperature [°C] [max]	80 °C
Ambient temperature [°C] [min]	-10 °C
CE evaluated	Out of scope
China RoHS compliance	Yes
Coil consumption [W]	9 W
Coil Current	AC
Coil voltage [V]	110-120
Contains batteries	No
Content	Coil, nut and washer.
Current type	AC
Description	COIL 110/120 V AC.
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Grade of enclosure	IP40
Packing format	Multi pack
Quantity per packing format	45 pc
REACH Candidate List substances	No
Storage temperature [°C] [Max]	70 °C
Storage temperature [°C] [Min]	-20 °C
Supply peak voltage [V] [Max]	127.2 V
Supply peak voltage [V] [Min]	104.4 V
Supply voltage [V]	115 V
Supply voltage [V] [Max]	120 V
Supply voltage [V] [Min]	110 V
UL evaluated	Out of scope
