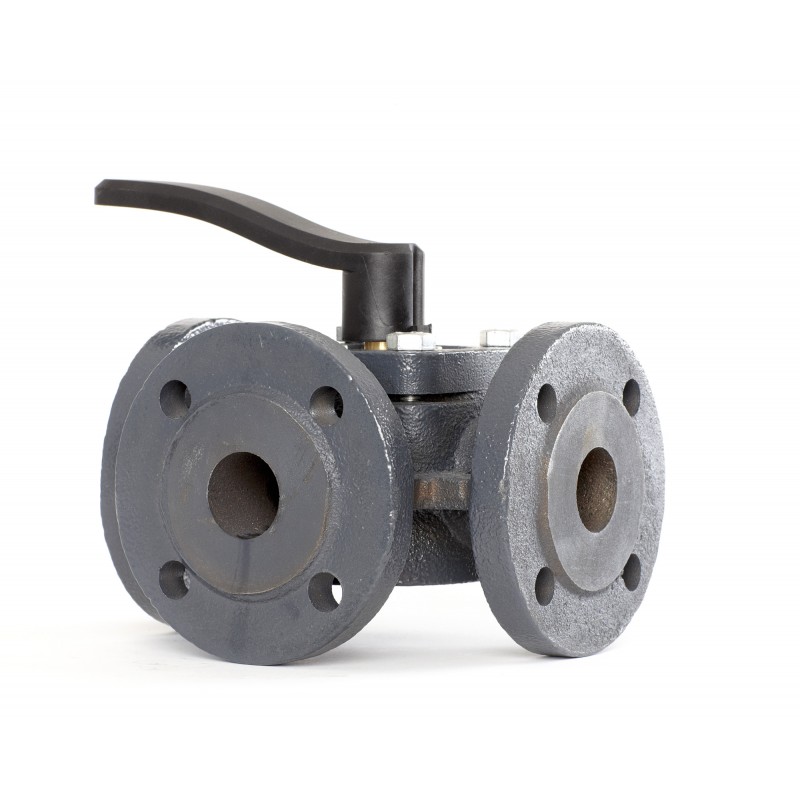

DANFOSS HEATING 065Z0433 065Z0433 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065Z0433 DANFOSS HEATING HFE 3 PN6 65/90 rotary 3-way Flange

Reference: 065Z0433

Manufacturer: DANFOSS HEATING

Description:

HFE 3 PN6 65/90 rotary 3-way Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 378,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HFE 3 PN6 65/90 rotary 3-way Flange

Product details

Gross weight20.8 Kilogram
Net weight14.7 Kilogram
Volume92.82 Liter
EAN5710104033501
TypeHFE 3
Product groupOther valves
Gross weight20.8 Kilogram
Net weight14.7 Kilogram
Volume92.82 Liter
EAN5710104033501
TypeHFE 3
Product groupOther valves

ApplicationHeating
Application alternative VSPDistrict heating
China RoHS complianceOut of scope
Closing differential pressure (diverting) [bar] [Max]0.5 bar
Closing differential pressure (mixing) [bar] [Max]0.5 bar
Connection sizePN 6
Connection typesFlange
Contains batteriesNo
DescriptionHFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm]65 mm
Flow characteristicS characteristic
FunctionPressure relief
Kvs values [m³/h]90 m³/h
Leakage through port max. [% Kvs]Diverting: 0.5
Mixing: 1.0
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]110 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports3
Operating torque [Nm]10 N-m
Permissible mediaDistrict heating/cooling circulation water
Pressure nominal [bar]6 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b522cde8-91be-41f7-a332-895ff80167a5
SCIP dossier product nameHRB HRE HFE
Slide shoe materialDZR brass CuZn36Pb2AS (CW 602N)
Spindle materialStainless steel
Stuffing box sealing materialEPDM
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialDZR brass CuZn36Pb2AS (CW 602N)
ApplicationHeating
Application alternative VSPDistrict heating
China RoHS complianceOut of scope
Closing differential pressure (diverting) [bar] [Max]0.5 bar
Closing differential pressure (mixing) [bar] [Max]0.5 bar
Connection sizePN 6
Connection typesFlange
Contains batteriesNo
DescriptionHFE 3 PN6 65/90 rotary 3-way Flange
Diameter [mm]65 mm
Flow characteristicS characteristic
FunctionPressure relief
Kvs values [m³/h]90 m³/h
Leakage through port max. [% Kvs]Diverting: 0.5
Mixing: 1.0
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]110 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports3
Operating torque [Nm]10 N-m
Permissible mediaDistrict heating/cooling circulation water
Pressure nominal [bar]6 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b522cde8-91be-41f7-a332-895ff80167a5
SCIP dossier product nameHRB HRE HFE
Slide shoe materialDZR brass CuZn36Pb2AS (CW 602N)
Spindle materialStainless steel
Stuffing box sealing materialEPDM
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialDZR brass CuZn36Pb2AS (CW 602N)
