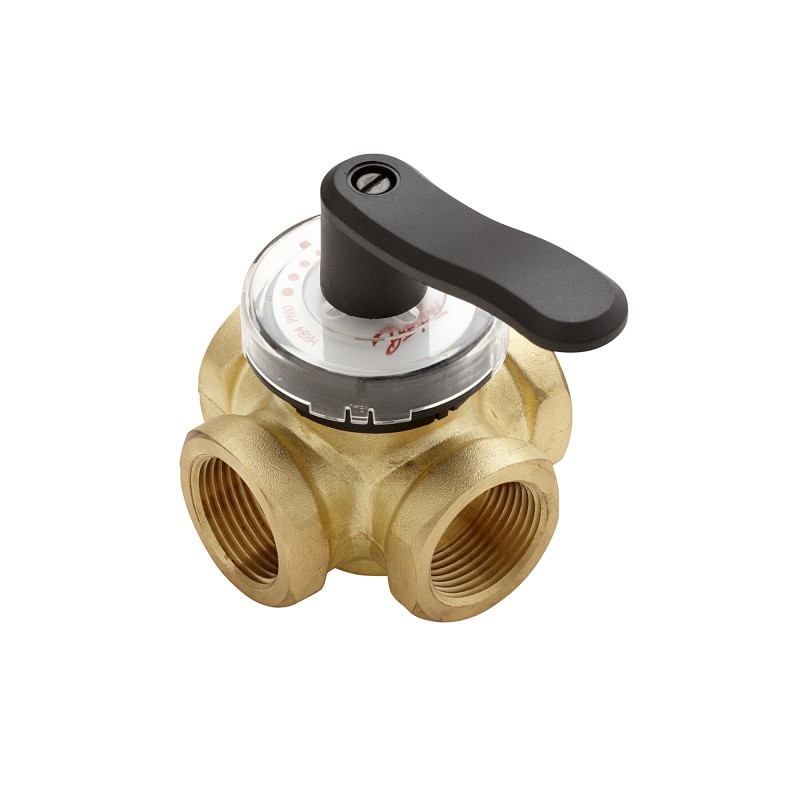

065Z0412 DANFOSS HEATING HRB 4 PN10 20/4 rotary 4-way Rp3/4
065Z0412
DANFOSS HEATING
HRB 4 PN10 20/4 rotary 4-way Rp3/4
HRB 4, PN 10, DN 20, 4 m³/h, Rp 3/4
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲HRB 4 PN10 20/4 rotary 4-way Rp3/4
Product details
| Gross weight | 0.9 Kilogram |
| Net weight | 0.9 Kilogram |
| Volume | 1.43 Cubic decimeter |
| EAN | 5710104033709 |
| Type | HRB 4 |
| Product group | Motorized control valves |
| Gross weight | 0.9 Kilogram |
| Net weight | 0.9 Kilogram |
| Volume | 1.43 Cubic decimeter |
| EAN | 5710104033709 |
| Type | HRB 4 |
| Product group | Motorized control valves |
| Application | Heating |
| China RoHS compliance | Out of scope |
| Closing differential pressure (diverting) [bar] [Max] | 2 bar |
| Closing differential pressure (mixing) [bar] [Max] | 1 bar |
| Connection size | Rp 3/4 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | HRB 4 PN10 20/4 rotary 4-way Rp3/4 |
| Diameter [mm] | 20 mm |
| Flow characteristic | S characteristic |
| Kvs values [m³/h] | 4 m³/h |
| Leakage through port max. [% Kvs] | 1.0 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 110 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 4 |
| Operating torque [Nm] | 5 N-m |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b522cde8-91be-41f7-a332-895ff80167a5 |
| SCIP dossier product name | HRB HRE HFE |
| Slide shoe material | DZR brass CuZn36Pb2AS (CW 602N) |
| Stuffing box sealing material | EPDM |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 20 |
| Application | Heating |
| China RoHS compliance | Out of scope |
| Closing differential pressure (diverting) [bar] [Max] | 2 bar |
| Closing differential pressure (mixing) [bar] [Max] | 1 bar |
| Connection size | Rp 3/4 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | HRB 4 PN10 20/4 rotary 4-way Rp3/4 |
| Diameter [mm] | 20 mm |
| Flow characteristic | S characteristic |
| Kvs values [m³/h] | 4 m³/h |
| Leakage through port max. [% Kvs] | 1.0 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 110 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 4 |
| Operating torque [Nm] | 5 N-m |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b522cde8-91be-41f7-a332-895ff80167a5 |
| SCIP dossier product name | HRB HRE HFE |
| Slide shoe material | DZR brass CuZn36Pb2AS (CW 602N) |
| Stuffing box sealing material | EPDM |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve size | DN 20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065Z0412 065Z0412 ES_082G4235.pdf | 734 Kbytes |
|
