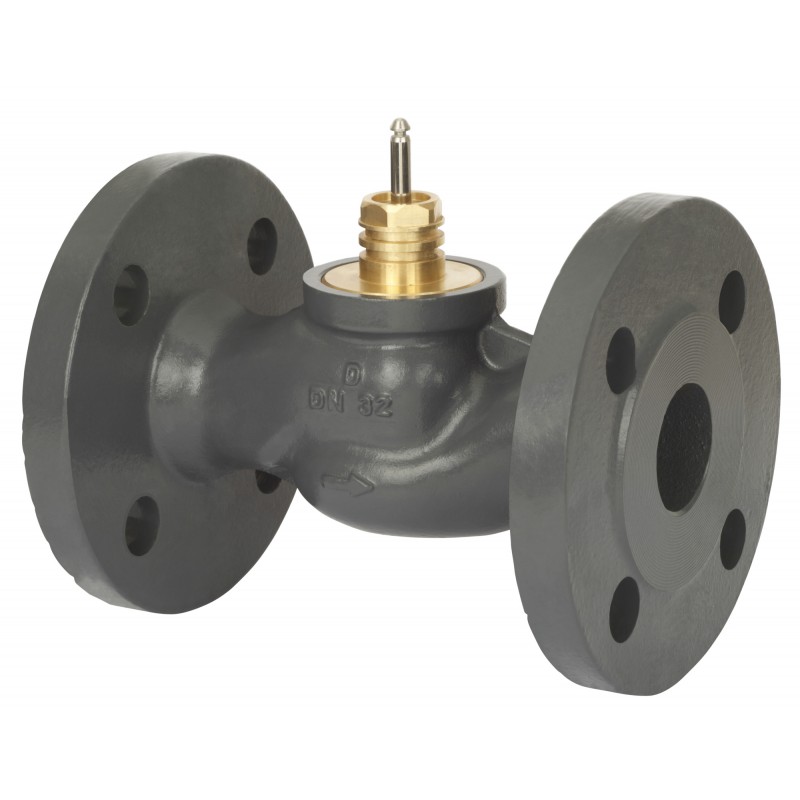

DANFOSS HEATING 065Z0280 065Z0280 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065Z0280 DANFOSS HEATING VF 2 PN16 50/40 2-way seated flange

Reference: 065Z0280

Manufacturer: DANFOSS HEATING

Description:

VF 2 PN16 50/40 2-way seated flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 760,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VF 2 PN16 50/40 2-way seated flange

Product details

Gross weight9.024 Kilogram
Net weight8.285 Kilogram
Volume11.163 Liter
EAN5710104007649
TypeVF 2
Product groupOther valves
Gross weight9.024 Kilogram
Net weight8.285 Kilogram
Volume11.163 Liter
EAN5710104007649
TypeVF 2
Product groupOther valves

ApplicationHeating and cooling
Application alternative VSPDistrict heating
Cavitation factor0.4
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
Control ratio100:1
DescriptionVF 2 PN16 50/40 2-way seated flange
Diameter [mm]50 mm
Differential pressure range [bar] [Max]4 bar
EU RoHS complianceOut of scope
Flow characteristicEqual percentage
FunctionPressure relief
Kvs values [m³/h]40 m³/h
Leakage through port max. [% Kvs]bubble tight design
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.227fcb46-f645-465f-8926-3e76a6630b20
SCIP dossier product nameVF 2 PN16 2-way seated flange
Stroke [mm]15 mm
Stuffing box sealing materialEPDM
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialBrass
Valve stem materialStainless steel
ApplicationHeating and cooling
Application alternative VSPDistrict heating
Cavitation factor0.4
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
Control ratio100:1
DescriptionVF 2 PN16 50/40 2-way seated flange
Diameter [mm]50 mm
Differential pressure range [bar] [Max]4 bar
EU RoHS complianceOut of scope
Flow characteristicEqual percentage
FunctionPressure relief
Kvs values [m³/h]40 m³/h
Leakage through port max. [% Kvs]bubble tight design
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.227fcb46-f645-465f-8926-3e76a6630b20
SCIP dossier product nameVF 2 PN16 2-way seated flange
Stroke [mm]15 mm
Stuffing box sealing materialEPDM
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialBrass
Valve stem materialStainless steel
