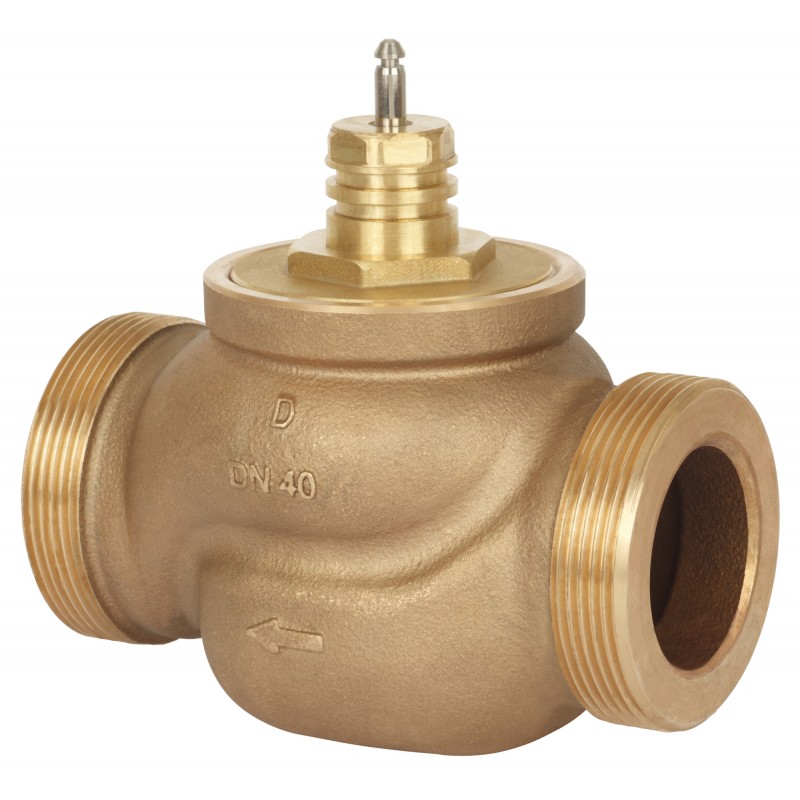

DANFOSS HEATING 065Z0175 065Z0175 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065Z0175 DANFOSS HEATING VRB 2 PN16 15/4 2-WAY SEATED EXT. THR

Reference: 065Z0175

Manufacturer: DANFOSS HEATING

Description:

VRB 2 PN16 15/4 2-WAY SEATED EXT. THR
VRB 2 PN16 15/4 2-way seated ext. thr

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 197,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VRB 2 PN16 15/4 2-way seated ext. thr

Product details

Gross weight0.74 Kilogram
Net weight0.742 Kilogram
Volume1.486 Liter
EAN5702421558881
TypeVRB 2
Product groupOther valves
Gross weight0.74 Kilogram
Net weight0.742 Kilogram
Volume1.486 Liter
EAN5702421558881
TypeVRB 2
Product groupOther valves

ApplicationHeating and cooling
Application alternative VSPChilled water
Cavitation factor0.4
China RoHS complianceOut of scope
Connection sizeG 1
Connection typesExternal Thread
Contains batteriesNo
Control ratio50:1
DescriptionVRB 2 PN16 15/4 2-way seated ext. thr
Diameter [mm]15 mm
Differential pressure range [bar] [Max]4 bar
EU RoHS complianceYes with exemptions
Flow characteristicEqual percentage
Kvs values [m³/h]4 m³/h
Leakage through port max. [% Kvs]bubble tight design
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.7f8522e2-7c07-4b9c-80b3-8ca6307d8a75
SCIP dossier product nameVRB 2 PN16 15-x 2-way seated
Stroke [mm]15 mm
Stuffing box sealing materialEPDM
Valve body materialRed bronze, mat. No. 2.1096.1 (RG5)
Valve cone materialBrass
Valve stem materialStainless steel
ApplicationHeating and cooling
Application alternative VSPChilled water
Cavitation factor0.4
China RoHS complianceOut of scope
Connection sizeG 1
Connection typesExternal Thread
Contains batteriesNo
Control ratio50:1
DescriptionVRB 2 PN16 15/4 2-way seated ext. thr
Diameter [mm]15 mm
Differential pressure range [bar] [Max]4 bar
EU RoHS complianceYes with exemptions
Flow characteristicEqual percentage
Kvs values [m³/h]4 m³/h
Leakage through port max. [% Kvs]bubble tight design
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.7f8522e2-7c07-4b9c-80b3-8ca6307d8a75
SCIP dossier product nameVRB 2 PN16 15-x 2-way seated
Stroke [mm]15 mm
Stuffing box sealing materialEPDM
Valve body materialRed bronze, mat. No. 2.1096.1 (RG5)
Valve cone materialBrass
Valve stem materialStainless steel
