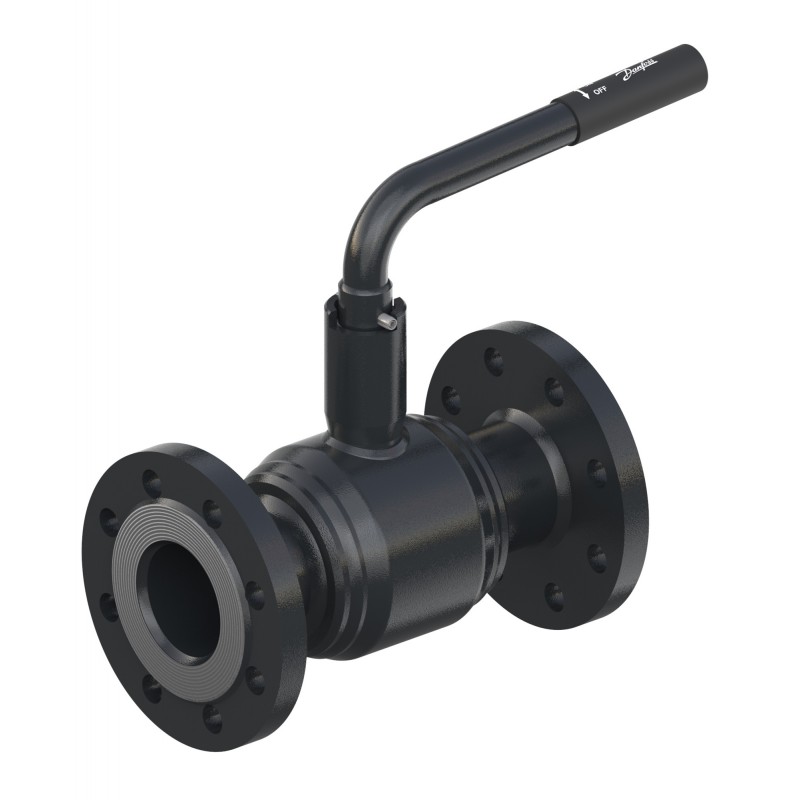

065N1335 DANFOSS HEATING JIP FF full bore ball valve DN80 PN25han
065N1335
DANFOSS HEATING
JIP FF full bore ball valve DN80 PN25han
Ball valves, JIP-FF, FB, Handle, Full Bore, PN 25, DN 80, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲JIP-FF DN 80 FB PN25 L hi L310
Product details
| Gross weight | 21.044 Kilogram |
| Net weight | 19.4 Kilogram |
| Volume | 40.959 Liter |
| EAN | 5702421651636 |
| Type | JIP-FF, FB, Handle |
| Product group | Ball valves |
| Gross weight | 21.044 Kilogram |
| Net weight | 19.4 Kilogram |
| Volume | 40.959 Liter |
| EAN | 5702421651636 |
| Type | JIP-FF, FB, Handle |
| Product group | Ball valves |
| Ambient temperature [°C] [min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Modul H1 |
| Body material | Weldable steel #20 or similar CE PED approved material |
| China RoHS compliance | Out of scope |
| Cone /seat sealing material | PTFE+C |
| Connection types | Flange |
| Contains batteries | No |
| Description | JIP-FF DN 80 FB PN25 L hi L310 |
| Differential pressure range [bar] [Max] | 25 bar |
| EU RoHS compliance | Out of scope |
| Flanges material | EN1092-Weldable steel #20 or similar CE PED approved material |
| Function | On/off |
| Kvs values [m³/h] | 1100 m³/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Length [mm] | 310 mm |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 180 °C |
| Media temperature [°C] [Min] | 0 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operation type | Handle |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| REACH Candidate List substances | No |
| Rotation angle [°] | 90 ° |
| Stem sealing material | PTFE/Graphite |
| Storage temperature [°C] [Min] | -40 °C |
| Valve ball material | Stainless steel |
| Valve body material | Weldable steel #20 or similar CE PED approved material |
| Valve size | DN 80 |
| Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type | Full Bore |
| Welding ends material | Weldable steel #20 or similar CE PED approved material |
| Ambient temperature [°C] [min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Modul H1 |
| Body material | Weldable steel #20 or similar CE PED approved material |
| China RoHS compliance | Out of scope |
| Cone /seat sealing material | PTFE+C |
| Connection types | Flange |
| Contains batteries | No |
| Description | JIP-FF DN 80 FB PN25 L hi L310 |
| Differential pressure range [bar] [Max] | 25 bar |
| EU RoHS compliance | Out of scope |
| Flanges material | EN1092-Weldable steel #20 or similar CE PED approved material |
| Function | On/off |
| Kvs values [m³/h] | 1100 m³/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Length [mm] | 310 mm |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 180 °C |
| Media temperature [°C] [Min] | 0 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operation type | Handle |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 25 |
| REACH Candidate List substances | No |
| Rotation angle [°] | 90 ° |
| Stem sealing material | PTFE/Graphite |
| Storage temperature [°C] [Min] | -40 °C |
| Valve ball material | Stainless steel |
| Valve body material | Weldable steel #20 or similar CE PED approved material |
| Valve size | DN 80 |
| Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type | Full Bore |
| Welding ends material | Weldable steel #20 or similar CE PED approved material |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065N1335 065N1335 ES_065N1261.pdf | 1 Mbytes |
|
