065N1177
DANFOSS HEATING
1

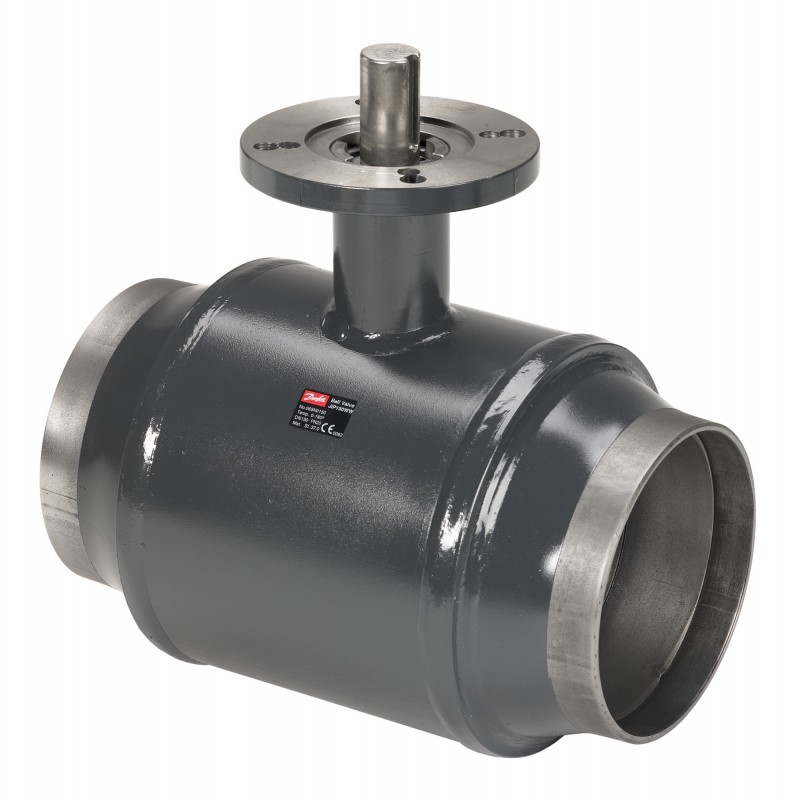

JIP WW full bore ball valve DN400 PN25fl
Ball valves, JIP-WW, FB, Gear flange, Full Bore, PN 25, DN 400, Welded
Home > DANFOSS HEATING
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
JIP-WW DN400 FB PN25 GF H650
Gross weight | 71000 Gram |
Net weight | 70300 Gram |
Volume | 1842.54 Liter |
EAN | 5702421651438 |
Gross weight | 71000 Gram |
Net weight | 70300 Gram |
Volume | 1842.54 Liter |
EAN | 5702421651438 |
Ambient temperature [°C] [min] | -40 °C |
Application | Heating and cooling |
Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Modul H1 |
Body material | Weldable steel #20 or similar CE PED approved material |
Cone /seat sealing material | PTFE+C |
Connection types | Welded |
Description | JIP-WW DN400 FB PN25 GF H650 |
Differential pressure range [bar] [Max] | 25 bar |
Function | On/off |
Gear flange type | F25 |
Height to top of stem [mm] | 9557 mm |
In scope of WEEE and contain batteries | No |
Kvs values [m³/h] | 37500 m³/h |
Leakage rate [% Kvs] | Leakage rate A |
Length [mm] | 1030 mm |
Media pH [Max] | 10 |
Media pH [Min] | 7 |
Media temperature [°C] [Max] | 180 °C |
Media temperature [°C] [Min] | 0 °C |
Medium alternative | Glycolic water up to 50% |
Mounting orientation | All |
Number of ports | 2 |
Operation type | Gear Flange |
Permissible media | District heating/cooling circulation water |
Pressure class | PN 25 |
Product group | Ball valves |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Rotation angle [°] | 90 ° |
Stem sealing material | PTFE/Graphite |
Storage temperature [°C] [Min] | -40 °C |
Type | JIP-WW, FB, Gear flange |
Valve ball material | Stainless steel |
Valve body material | Weldable steel #20 or similar CE PED approved material |
Valve size | DN 400 |
Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
Valve type | Full Bore |
Welding ends material | Weldable steel #20 or similar CE PED approved material |
Ambient temperature [°C] [min] | -40 °C |
Application | Heating and cooling |
Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Modul H1 |
Body material | Weldable steel #20 or similar CE PED approved material |
Cone /seat sealing material | PTFE+C |
Connection types | Welded |
Description | JIP-WW DN400 FB PN25 GF H650 |
Differential pressure range [bar] [Max] | 25 bar |
Function | On/off |
Gear flange type | F25 |
Height to top of stem [mm] | 9557 mm |
In scope of WEEE and contain batteries | No |
Kvs values [m³/h] | 37500 m³/h |
Leakage rate [% Kvs] | Leakage rate A |
Length [mm] | 1030 mm |
Media pH [Max] | 10 |
Media pH [Min] | 7 |
Media temperature [°C] [Max] | 180 °C |
Media temperature [°C] [Min] | 0 °C |
Medium alternative | Glycolic water up to 50% |
Mounting orientation | All |
Number of ports | 2 |
Operation type | Gear Flange |
Permissible media | District heating/cooling circulation water |
Pressure class | PN 25 |
Product group | Ball valves |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Rotation angle [°] | 90 ° |
Stem sealing material | PTFE/Graphite |
Storage temperature [°C] [Min] | -40 °C |
Type | JIP-WW, FB, Gear flange |
Valve ball material | Stainless steel |
Valve body material | Weldable steel #20 or similar CE PED approved material |
Valve size | DN 400 |
Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
Valve type | Full Bore |
Welding ends material | Weldable steel #20 or similar CE PED approved material |
Title: | Size: | Type: |
---|---|---|
065N1177 065N1177 ES_065N1257.pdf | 1 Mbytes |
