DANFOSS HEATING065F2115 DANFOSS HEATING VS 2 PN16 15/1,6 2-way seated ext. thr

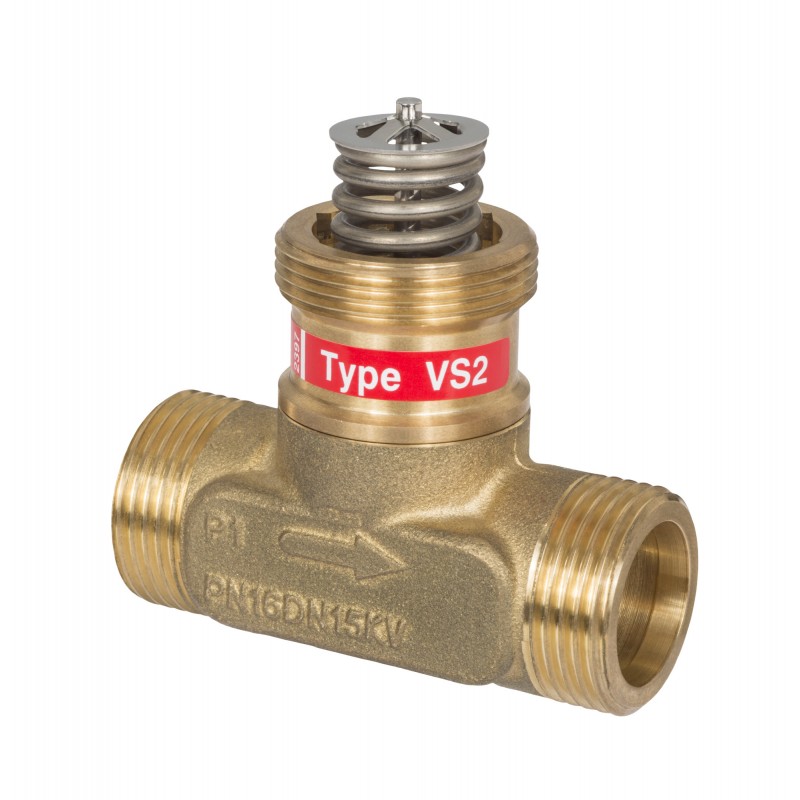

DANFOSS HEATING 065F2115 065F2115 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065F2115 DANFOSS HEATING VS 2 PN16 15/1,6 2-way seated ext. thr

Reference: 065F2115

Manufacturer: DANFOSS HEATING

Description:

VS 2 PN16 15/1,6 2-way seated ext. thr
VS 2, PN 16, DN 15, 1.6 m³/h, G 3/4 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 153,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VS 2 PN16 15/1,6 2-way seated ext. thr

Product details

Gross weight0.29 Kilogram
Net weight0.29 Kilogram
Volume0.244 Liter
EAN5702421510223
TypeVS 2
Product groupMotorized control valves
Gross weight0.29 Kilogram
Net weight0.29 Kilogram
Volume0.244 Liter
EAN5702421510223
TypeVS 2
Product groupMotorized control valves

ApplicationDistrict Heating
Application alternative VSPHeating
Cavitation factor0.5
Cavitation factor 100%0.34
Cavitation factor 25%0.58
Cavitation factor 50%0.52
Cavitation factor 75%0.5
Connection sizeG 3/4 A
Connection typesExternal Thread
Contains batteriesNo
Control ratio1:50
DescriptionVS 2 PN16 15/1,6 2-way seated ext. thr
Diameter [mm]15 mm
Differential pressure range [bar] [Max]10 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow characteristicLinear
Kvs values [m³/h]1.6 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b8dc27b2-17a4-4373-ad5a-11c65acf7795
SCIP dossier product nameVS2 (1)
Spindle positionNormally open
Stroke [mm]4 mm
Valve body materialDezincing free brass
Valve cone materialStainless steel
Valve sizeDN 15
ApplicationDistrict Heating
Application alternative VSPHeating
Cavitation factor0.5
Cavitation factor 100%0.34
Cavitation factor 25%0.58
Cavitation factor 50%0.52
Cavitation factor 75%0.5
Connection sizeG 3/4 A
Connection typesExternal Thread
Contains batteriesNo
Control ratio1:50
DescriptionVS 2 PN16 15/1,6 2-way seated ext. thr
Diameter [mm]15 mm
Differential pressure range [bar] [Max]10 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow characteristicLinear
Kvs values [m³/h]1.6 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b8dc27b2-17a4-4373-ad5a-11c65acf7795
SCIP dossier product nameVS2 (1)
Spindle positionNormally open
Stroke [mm]4 mm
Valve body materialDezincing free brass
Valve cone materialStainless steel
Valve sizeDN 15
