DANFOSS HEATING065F2031 DANFOSS HEATING VMA PN16 15/0,4 2-way ext. thread

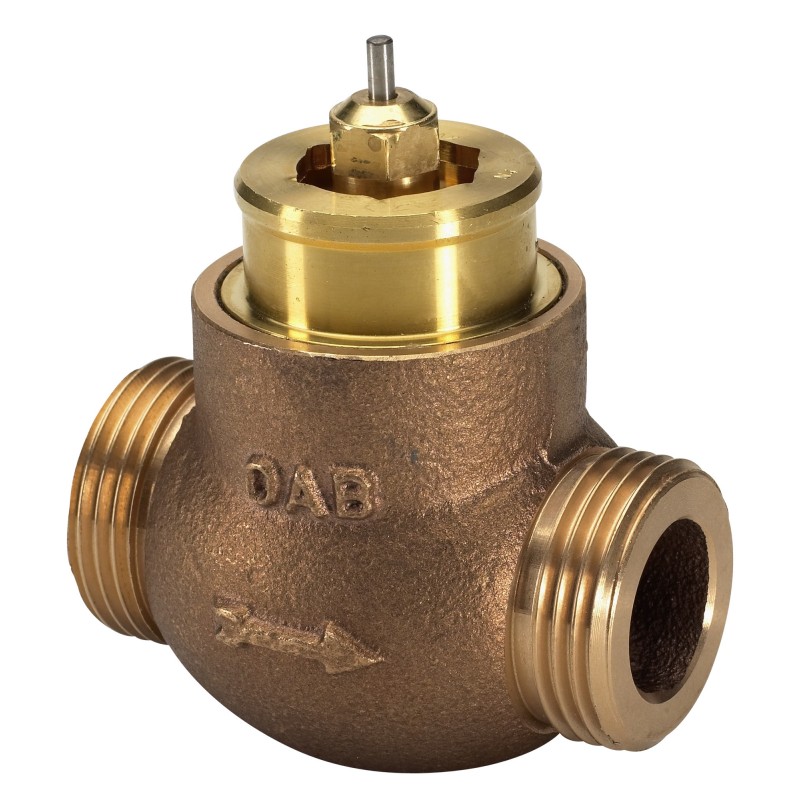

DANFOSS HEATING 065F2031 065F2031 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065F2031 DANFOSS HEATING VMA PN16 15/0,4 2-way ext. thread

Reference: 065F2031

Manufacturer: DANFOSS HEATING

Description:

VMA PN16 15/0,4 2-way ext. thread
VMA, PN 16, DN 15, 0.4 m³/h, G 3/4 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 192,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

VMA PN16 15/0,4 2-way ext. thread

Product details

Gross weight0.268 Kilogram
Net weight0.264 Kilogram
Volume0.226 Liter
EAN5702420018393
TypeVMA
Product groupMotorized control valves
Gross weight0.268 Kilogram
Net weight0.264 Kilogram
Volume0.226 Liter
EAN5702420018393
TypeVMA
Product groupMotorized control valves

ApplicationHeating and cooling
Cavitation factor0.5
China RoHS complianceOut of scope
Connection sizeG 3/4 A
Connection typesExternal Thread
Contains batteriesNo
Control ratio1:50
DescriptionVMA PN16 15/0,4 2-way ext. thread
Diameter [mm]15 mm
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow characteristicApprox. linear
Kvs values [m³/h]0.4 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle materialDezincing free brass
Spindle positionNormally open
Stroke [mm]3 mm
Stuffing box sealing materialDezincing free brass
Valve body materialDezincing free brass
Valve cone materialEPDM
Valve seat materialStainless steel 18/8, mat. No. 1.4305
Valve sizeDN 15
ApplicationHeating and cooling
Cavitation factor0.5
China RoHS complianceOut of scope
Connection sizeG 3/4 A
Connection typesExternal Thread
Contains batteriesNo
Control ratio1:50
DescriptionVMA PN16 15/0,4 2-way ext. thread
Diameter [mm]15 mm
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow characteristicApprox. linear
Kvs values [m³/h]0.4 m³/h
Leakage through port max. [% Kvs]0.05
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle materialDezincing free brass
Spindle positionNormally open
Stroke [mm]3 mm
Stuffing box sealing materialDezincing free brass
Valve body materialDezincing free brass
Valve cone materialEPDM
Valve seat materialStainless steel 18/8, mat. No. 1.4305
Valve sizeDN 15
