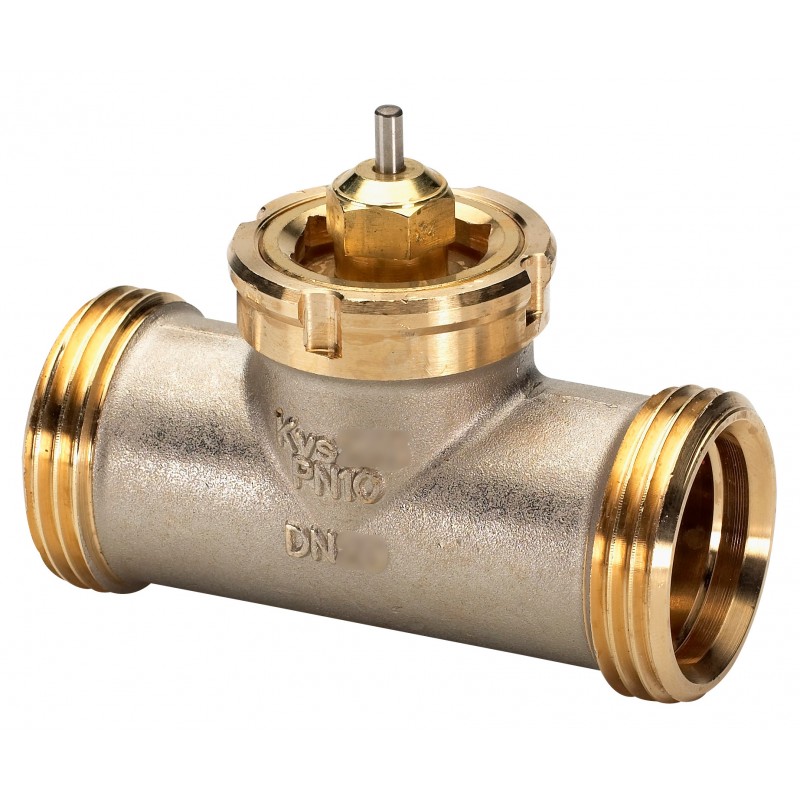

065F0124 DANFOSS HEATING VMT PN10 25/8 2-way/2 ext.thr Straight
065F0124
DANFOSS HEATING
VMT PN10 25/8 2-way/2 ext.thr Straight
VMT, PN 10, DN 25, 8 m³/h, External Thread, G 1 1/4 A
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VMT PN10 25/8 2-way/2 ext.thr Straight
Product details
| Gross weight | 0.612 Kilogram |
| Net weight | 0.606 Kilogram |
| Volume | 0.452 Liter |
| EAN | 5702420022826 |
| Type | VMT |
| Product group | Motorized control valves |
| Gross weight | 0.612 Kilogram |
| Net weight | 0.606 Kilogram |
| Volume | 0.452 Liter |
| EAN | 5702420022826 |
| Type | VMT |
| Product group | Motorized control valves |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Contains batteries | No |
| Description | VMT PN10 25/8 2-way/2 ext.thr Straight |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 0.2 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 8 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ae8ac5ce-85a6-4ad9-b4c1-72d287525ac6 |
| SCIP dossier product name | VMT PN10 25/8 2-way/2 ext.thr Straight |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
| Valve size | DN 25 |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Contains batteries | No |
| Description | VMT PN10 25/8 2-way/2 ext.thr Straight |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 0.2 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Kvs values [m³/h] | 8 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 6 |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ae8ac5ce-85a6-4ad9-b4c1-72d287525ac6 |
| SCIP dossier product name | VMT PN10 25/8 2-way/2 ext.thr Straight |
| Spindle position | Normally open |
| Stroke [mm] | 1.1 mm |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | NBR rubber |
| Valve size | DN 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065F0124 065F0124 EN_065F0114.pdf | 437 Kbytes |
|
