DANFOSS HEATING065F0119 DANFOSS HEATING VMT PN10 20/5 2-way/2 ext.thr Straight

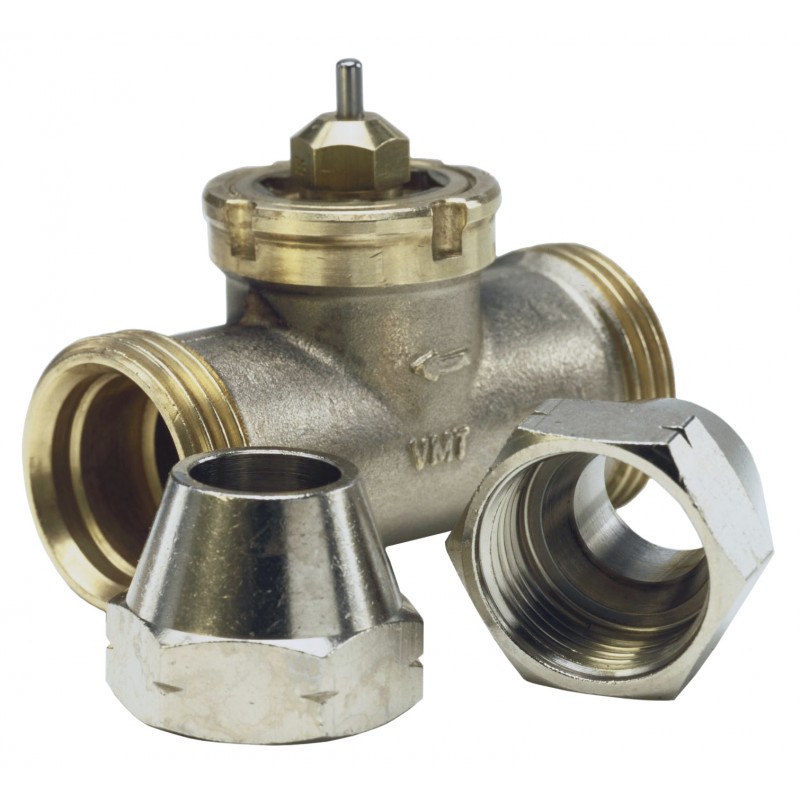

DANFOSS HEATING 065F0119 065F0119 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065F0119 DANFOSS HEATING VMT PN10 20/5 2-way/2 ext.thr Straight

Reference: 065F0119

Manufacturer: DANFOSS HEATING

Description:

VMT PN10 20/5 2-way/2 ext.thr Straight
VMT, PN 10, DN 20, 5 m³/h, External Thread, G 1 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 85,20 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VMT PN10 20/5 2-way/2 ext.thr Straight

Product details

Gross weight0.416 Kilogram
Net weight0.416 Kilogram
Volume0.392 Liter
EAN5702420024585
TypeVMT
Product groupMotorized control valves
Gross weight0.416 Kilogram
Net weight0.416 Kilogram
Volume0.392 Liter
EAN5702420024585
TypeVMT
Product groupMotorized control valves

ApplicationHeating and cooling
Cavitation factor0.5
Connection sizeG 1 A
Connection typesExternal Thread
Contains batteriesNo
DescriptionVMT PN10 20/5 2-way/2 ext.thr Straight
Diameter [mm]20 mm
Differential pressure range [bar] [Max]0.2 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow characteristicLinear
FunctionControl valve
Kvs values [m³/h]5 m³/h
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]120 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP6
Pressure classPN 10
Pressure nominal [bar]10 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.73edcdda-c611-4dcb-8a37-064273c1d360
SCIP dossier product nameVMT PN10
Spindle positionNormally open
Stroke [mm]1.1 mm
Valve body materialBrass W. No 2.0402
Valve cone materialNBR rubber
Valve sizeDN 20
Valve stem materialCrMo steel
ApplicationHeating and cooling
Cavitation factor0.5
Connection sizeG 1 A
Connection typesExternal Thread
Contains batteriesNo
DescriptionVMT PN10 20/5 2-way/2 ext.thr Straight
Diameter [mm]20 mm
Differential pressure range [bar] [Max]0.2 bar
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow characteristicLinear
FunctionControl valve
Kvs values [m³/h]5 m³/h
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]120 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP6
Pressure classPN 10
Pressure nominal [bar]10 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.73edcdda-c611-4dcb-8a37-064273c1d360
SCIP dossier product nameVMT PN10
Spindle positionNormally open
Stroke [mm]1.1 mm
Valve body materialBrass W. No 2.0402
Valve cone materialNBR rubber
Valve sizeDN 20
Valve stem materialCrMo steel

DATASHEET - PDF

Title
Size
Type
065F0119 065F0119 EN_065F0114.pdf
437 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
