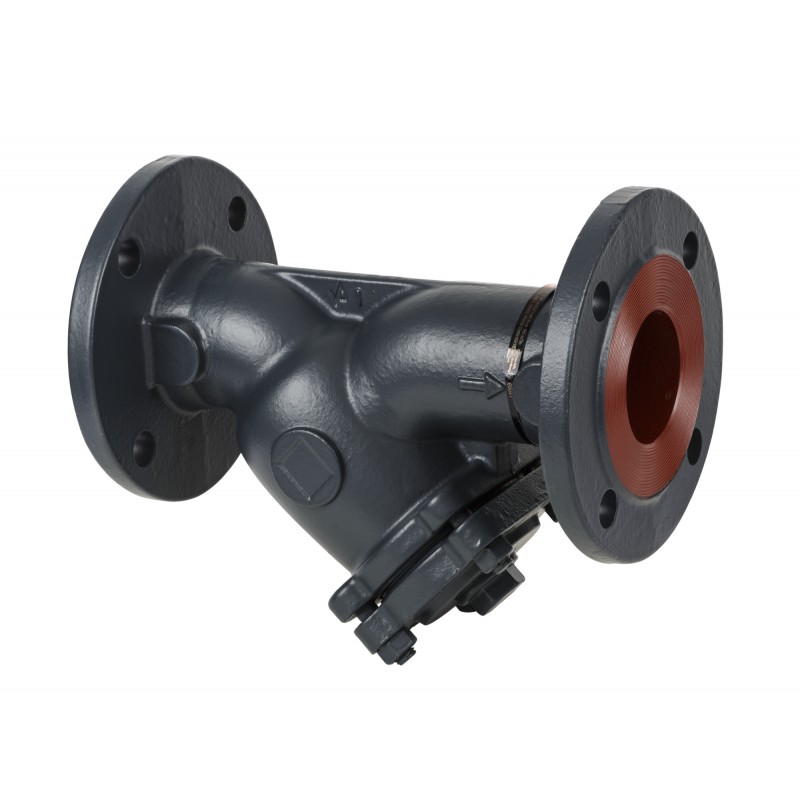

065B7748 DANFOSS HEATING FVF DN100 PN16 with Plug
Reference: 065B7748
Manufacturer: DANFOSS HEATING
Description:
FVF DN100 PN16 with Plug
FVF, PN 16, DN 100, With plug, Flange, 100
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
FVF DN100 PN16 with Plug
Product details
| Gross weight | 27.6 Kilogram |
| Net weight | 23.2 Kilogram |
| Volume | 90.86 Liter |
| EAN | 5702421555262 |
| Type | FVF |
| Product group | Auxiliary Products |
| Gross weight | 27.6 Kilogram |
| Net weight | 23.2 Kilogram |
| Volume | 90.86 Liter |
| EAN | 5702421555262 |
| Type | FVF |
| Product group | Auxiliary Products |
| Approval standard | DIN EN 1092-2 |
| China RoHS compliance | Out of scope |
| Connection size | 100 |
| Connection types | Flange |
| Contains batteries | No |
| Description | FVF DN100 PN16 with Plug |
| Diameter [mm] | 100 mm |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 201 m³/h |
| Label product | Yes |
| Material | Grey cast iron EN-GJL-250 (GG25) |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mesh size [mm] | 1.18 mm |
| Number of meshes [n/cm²] | 25 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | No |
| Size | DN 100 |
| Strainer type | With plug |
| Approval standard | DIN EN 1092-2 |
| China RoHS compliance | Out of scope |
| Connection size | 100 |
| Connection types | Flange |
| Contains batteries | No |
| Description | FVF DN100 PN16 with Plug |
| Diameter [mm] | 100 mm |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 201 m³/h |
| Label product | Yes |
| Material | Grey cast iron EN-GJL-250 (GG25) |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mesh size [mm] | 1.18 mm |
| Number of meshes [n/cm²] | 25 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | No |
| Size | DN 100 |
| Strainer type | With plug |
