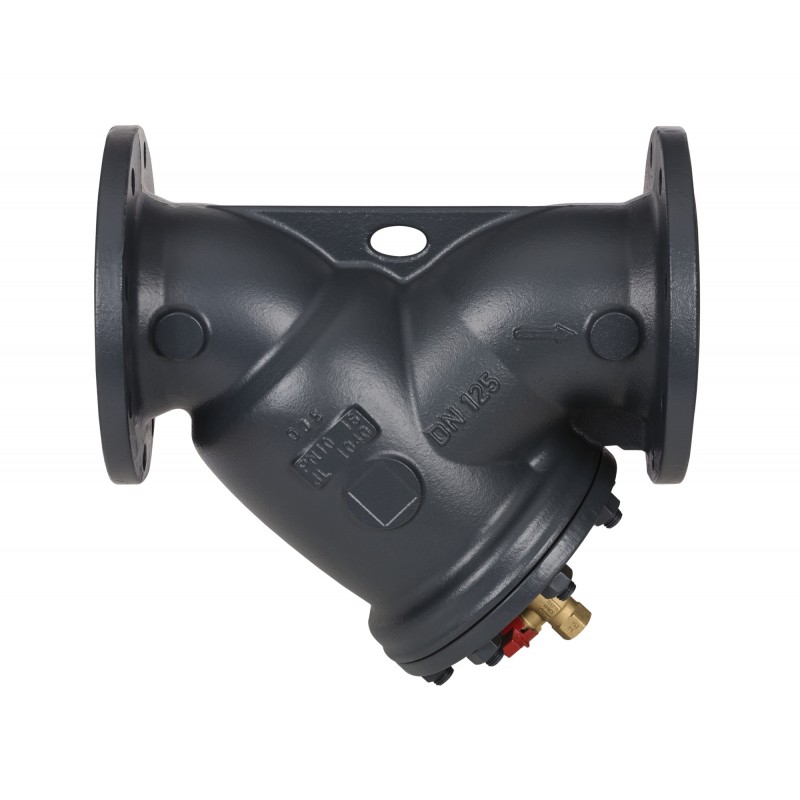

065B7735 DANFOSS HEATING FVF DN125 PN16 with draining valve
065B7735
DANFOSS HEATING
FVF DN125 PN16 with draining valve
FVF, PN 16, DN 125, With draining ball valve, Flange, 125
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲FVF DN125 PN16 with Ball Valve mounted o
Product details
| Gross weight | 40.5 Kilogram |
| Net weight | 32.8 Kilogram |
| Volume | 92.04 Liter |
| EAN | 5702421555606 |
| Type | FVF |
| Product group | Auxiliary Products |
| Gross weight | 40.5 Kilogram |
| Net weight | 32.8 Kilogram |
| Volume | 92.04 Liter |
| EAN | 5702421555606 |
| Type | FVF |
| Product group | Auxiliary Products |
| Approval standard | DIN EN 1092-2 |
| China RoHS compliance | Out of scope |
| Connection size | 125 |
| Connection types | Flange |
| Contains batteries | No |
| Description | FVF DN125 PN16 with Ball Valve mounted o |
| Diameter [mm] | 125 mm |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 350 m³/h |
| Label product | Yes |
| Material | Grey cast iron EN-GJL-250 (GG25) |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mesh size [mm] | 1.18 mm |
| Number of meshes [n/cm²] | 25 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | No |
| Size | DN 125 |
| Strainer type | With draining ball valve |
| Approval standard | DIN EN 1092-2 |
| China RoHS compliance | Out of scope |
| Connection size | 125 |
| Connection types | Flange |
| Contains batteries | No |
| Description | FVF DN125 PN16 with Ball Valve mounted o |
| Diameter [mm] | 125 mm |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 350 m³/h |
| Label product | Yes |
| Material | Grey cast iron EN-GJL-250 (GG25) |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mesh size [mm] | 1.18 mm |
| Number of meshes [n/cm²] | 25 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | No |
| Size | DN 125 |
| Strainer type | With draining ball valve |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B7735 065B7735 ES_065B7742.pdf | 664 Kbytes |
|
