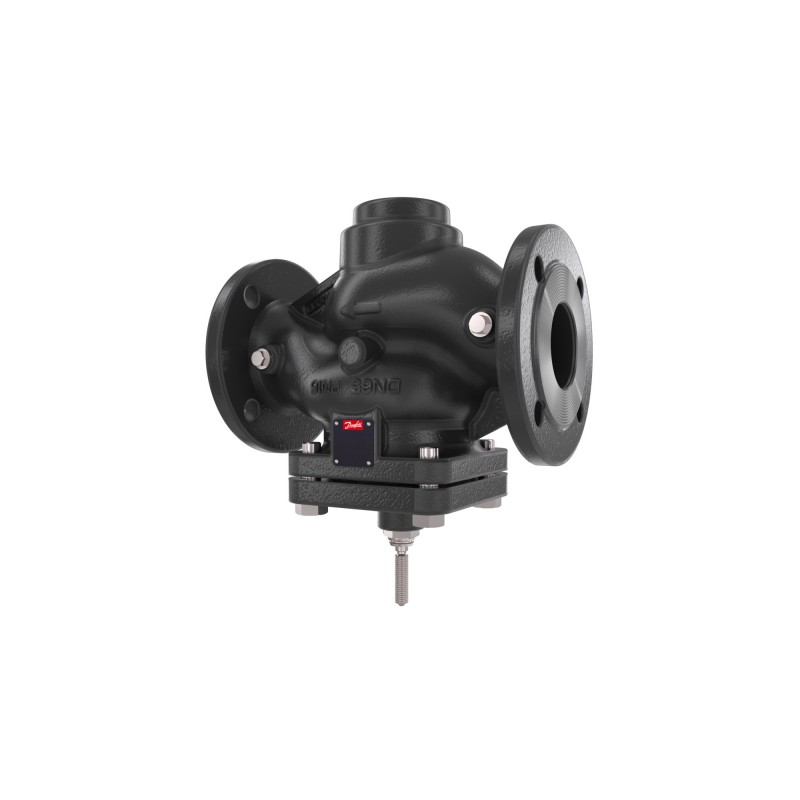

065B5505 DANFOSS HEATING VFG 22 PN16 200/650 2-way flange flow/re
065B5505
DANFOSS HEATING
VFG 22 PN16 200/650 2-way flange flow/re
VFG 22, PN 16, DN 200, 650 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲Pressure operated valves
Product details
| Gross weight | 229 Kilogram |
| Net weight | 204 Kilogram |
| Volume | 340.8 Liter |
| EAN | 5710104095394 |
| Type | VFG 22 |
| Product group | Pressure flow controllers |
| Gross weight | 229 Kilogram |
| Net weight | 204 Kilogram |
| Volume | 340.8 Liter |
| EAN | 5710104095394 |
| Type | VFG 22 |
| Product group | Pressure flow controllers |
| Application | District heating and cooling |
| Cavitation factor | 0.2 |
| Cavitation factor 100% | 0.13 |
| Cavitation factor 25% | 0.37 |
| Cavitation factor 50% | 0.3 |
| Cavitation factor 75% | 0.2 |
| China RoHS compliance | Out of scope |
| Connection size | DN 200 |
| Connection types | Flange |
| Contains batteries | No |
| Description | Pressure operated valves |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 650 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Pressure relieve system control valve insert | Chamber |
| Sealing DP material | Metal |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 200 |
| Application | District heating and cooling |
| Cavitation factor | 0.2 |
| Cavitation factor 100% | 0.13 |
| Cavitation factor 25% | 0.37 |
| Cavitation factor 50% | 0.3 |
| Cavitation factor 75% | 0.2 |
| China RoHS compliance | Out of scope |
| Connection size | DN 200 |
| Connection types | Flange |
| Contains batteries | No |
| Description | Pressure operated valves |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 650 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Pressure relieve system control valve insert | Chamber |
| Sealing DP material | Metal |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 200 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B5505 065B5505 EN_003G5624.pdf | 2 Mbytes |
|
