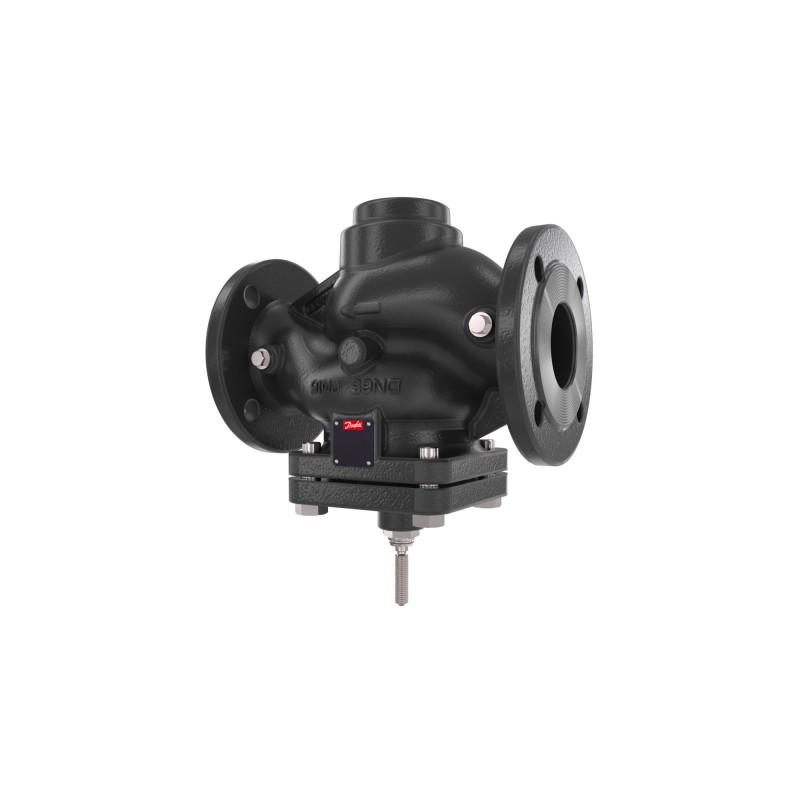

DANFOSS HEATING 065B5502 065B5502 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B5502 DANFOSS HEATING VFG 22 PN16 100/160 2-way flange flow/re

Reference: 065B5502

Manufacturer: DANFOSS HEATING

Description:

VFG 22 PN16 100/160 2-way flange flow/re
VFG 22, PN 16, DN 100, 160 m³/h, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 4.713,04 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Pressure operated valves

Product details

Gross weight52.45 Kilogram
Net weight47 Kilogram
Volume83.434 Liter
EAN5710104095424
TypeVFG 22
Product groupPressure flow controllers
Gross weight52.45 Kilogram
Net weight47 Kilogram
Volume83.434 Liter
EAN5710104095424
TypeVFG 22
Product groupPressure flow controllers

ApplicationDistrict heating and cooling
Cavitation factor0.3
Cavitation factor 100%0.24
Cavitation factor 25%0.43
Cavitation factor 50%0.36
Cavitation factor 75%0.3
China RoHS complianceOut of scope
Connection sizeDN 100
Connection typesFlange
Contains batteriesNo
DescriptionPressure operated valves
Diameter [mm]100 mm
Differential pressure range [bar] [Max]15 bar
EU RoHS complianceOut of scope
Kvs values [m³/h]160 m³/h
Leakage rate [% Kvs]0.03
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure nominal [bar]16 bar
Pressure relieve system control valve insertChamber
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Sealing DP materialMetal
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone DP materialStainless steel mat. No. 1.4021
Valve seat DP materialStainless steel, mat. No. 1.4021
Valve sizeDN 100
ApplicationDistrict heating and cooling
Cavitation factor0.3
Cavitation factor 100%0.24
Cavitation factor 25%0.43
Cavitation factor 50%0.36
Cavitation factor 75%0.3
China RoHS complianceOut of scope
Connection sizeDN 100
Connection typesFlange
Contains batteriesNo
DescriptionPressure operated valves
Diameter [mm]100 mm
Differential pressure range [bar] [Max]15 bar
EU RoHS complianceOut of scope
Kvs values [m³/h]160 m³/h
Leakage rate [% Kvs]0.03
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure nominal [bar]16 bar
Pressure relieve system control valve insertChamber
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Sealing DP materialMetal
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone DP materialStainless steel mat. No. 1.4021
Valve seat DP materialStainless steel, mat. No. 1.4021
Valve sizeDN 100

DATASHEET - PDF
