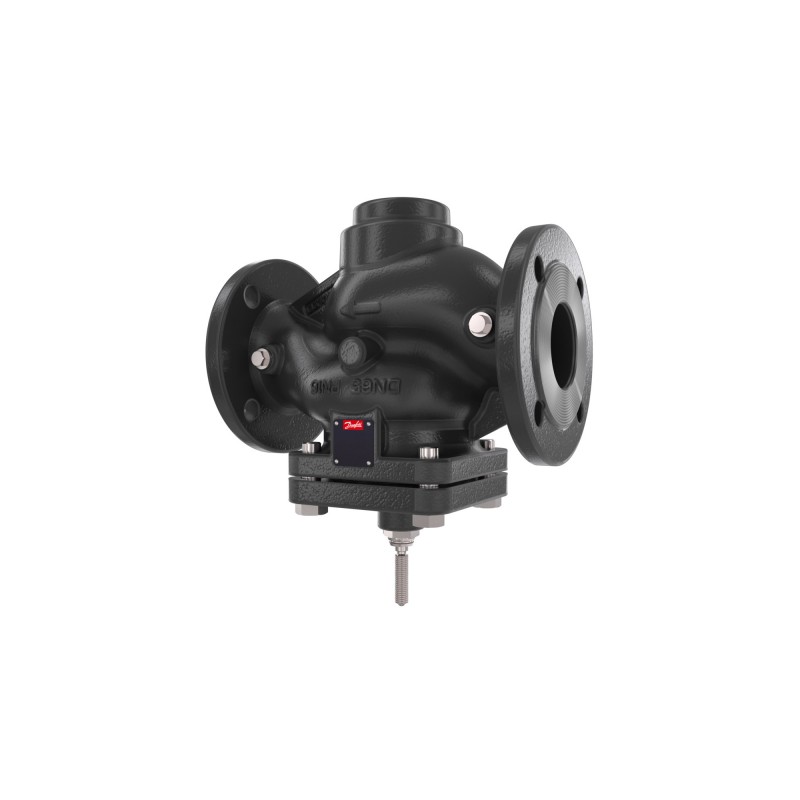

DANFOSS HEATING 065B5501 065B5501 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B5501 DANFOSS HEATING VFG 22 PN16 80/80 2-way flange flow/ret

Reference: 065B5501

Manufacturer: DANFOSS HEATING

Description:

VFG 22 PN16 80/80 2-way flange flow/ret
VFG 22, PN 16, DN 80, 80 m³/h, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 3.191,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Pressure operated valves

Product details

Gross weight35.6 Kilogram
Net weight29 Kilogram
Volume82.259 Liter
EAN5710104095431
TypeVFG 22
Product groupPressure flow controllers
Gross weight35.6 Kilogram
Net weight29 Kilogram
Volume82.259 Liter
EAN5710104095431
TypeVFG 22
Product groupPressure flow controllers

ApplicationDistrict heating and cooling
Cavitation factor0.35
Cavitation factor 100%0.28
Cavitation factor 25%0.51
Cavitation factor 50%0.4
Cavitation factor 75%0.35
China RoHS complianceOut of scope
Connection sizeDN 80
Connection typesFlange
Contains batteriesNo
DescriptionPressure operated valves
Diameter [mm]80 mm
Differential pressure range [bar] [Max]16 bar
EU RoHS complianceOut of scope
Kvs values [m³/h]80 m³/h
Leakage rate [% Kvs]0.03
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure nominal [bar]16 bar
Pressure relieve system control valve insertChamber
Sealing DP materialMetal
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone DP materialStainless steel mat. No. 1.4021
Valve seat DP materialStainless steel, mat. No. 1.4021
Valve sizeDN 80
ApplicationDistrict heating and cooling
Cavitation factor0.35
Cavitation factor 100%0.28
Cavitation factor 25%0.51
Cavitation factor 50%0.4
Cavitation factor 75%0.35
China RoHS complianceOut of scope
Connection sizeDN 80
Connection typesFlange
Contains batteriesNo
DescriptionPressure operated valves
Diameter [mm]80 mm
Differential pressure range [bar] [Max]16 bar
EU RoHS complianceOut of scope
Kvs values [m³/h]80 m³/h
Leakage rate [% Kvs]0.03
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]2 °C
Medium alternativeGlycolic water up to 30%
Mounting versionFree
Number of ports2
Operating pressure [bar] [Max]16 bar
Permissible mediaDistrict heating/cooling circulation water
Pressure classPN 16
Pressure nominal [bar]16 bar
Pressure relieve system control valve insertChamber
Sealing DP materialMetal
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone DP materialStainless steel mat. No. 1.4021
Valve seat DP materialStainless steel, mat. No. 1.4021
Valve sizeDN 80

DATASHEET - PDF
