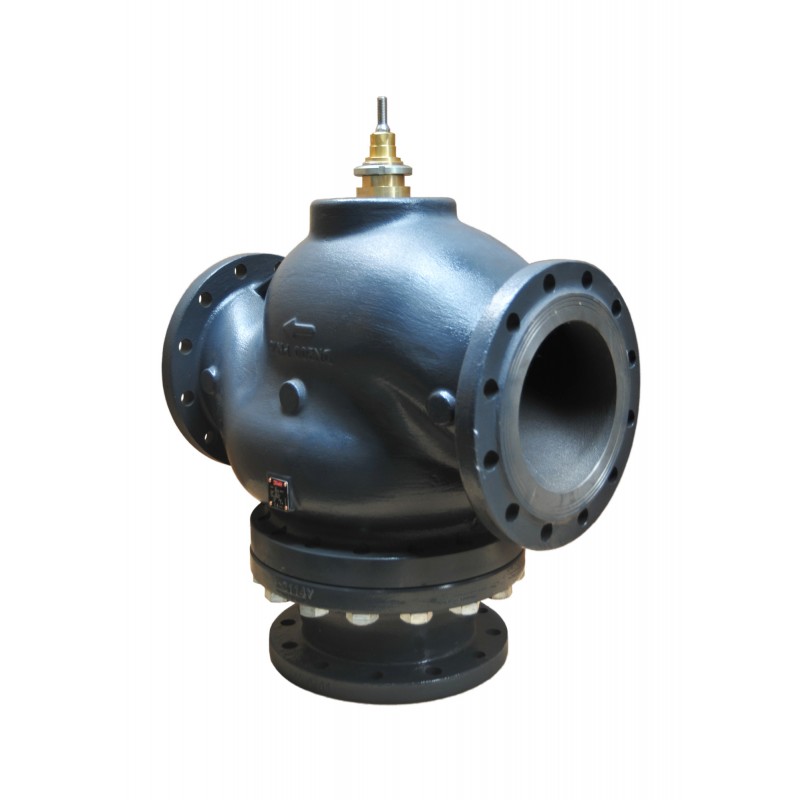

DANFOSS HEATING 065B4300 065B4300 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

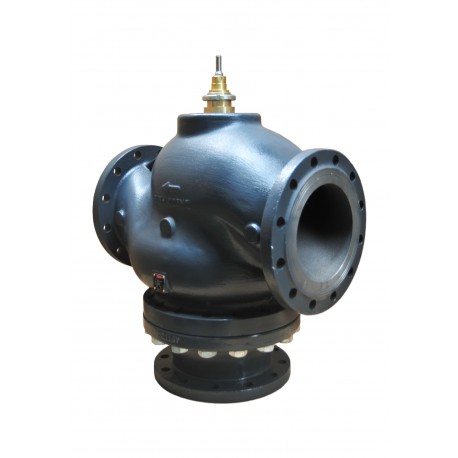

065B4300 DANFOSS HEATING VF3 PN16 300/1350 3-way seated flange

Reference: 065B4300

Manufacturer: DANFOSS HEATING

Description:

VF3 PN16 300/1350 3-way seated flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

VF3 PN16 300/1250 3-way seated flange

Product details

Gross weight655 Kilogram
Net weight507 Kilogram
Volume696 Liter
EAN5710104508610
TypeVF 3
Product groupOther valves
Gross weight655 Kilogram
Net weight507 Kilogram
Volume696 Liter
EAN5710104508610
TypeVF 3
Product groupOther valves

ApplicationHeating and cooling
Application alternative VSPDistrict heating
Cavitation factor0.45
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
Control ratio50:1
DescriptionVF3 PN16 300/1250 3-way seated flange
Diameter [mm]300 mm
EU RoHS complianceOut of scope
Flow characteristicEqual percentage
FunctionMixing valve
Kvs values [m³/h]1350 m³/h
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports3
Permissible mediaDistrict heating/cooling circulation water
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.bc60a1f4-fe0c-4ec8-9e0a-9c8316b7044c
SCIP dossier product nameVF3 DN200-300
Stroke [mm]73 mm
Valve body materialGrey cast iron (EN-GJL-250)
Valve cone materialStainless steel
ApplicationHeating and cooling
Application alternative VSPDistrict heating
Cavitation factor0.45
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
Control ratio50:1
DescriptionVF3 PN16 300/1250 3-way seated flange
Diameter [mm]300 mm
EU RoHS complianceOut of scope
Flow characteristicEqual percentage
FunctionMixing valve
Kvs values [m³/h]1350 m³/h
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]130 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports3
Permissible mediaDistrict heating/cooling circulation water
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.bc60a1f4-fe0c-4ec8-9e0a-9c8316b7044c
SCIP dossier product nameVF3 DN200-300
Stroke [mm]73 mm
Valve body materialGrey cast iron (EN-GJL-250)
Valve cone materialStainless steel

DATASHEET - PDF
