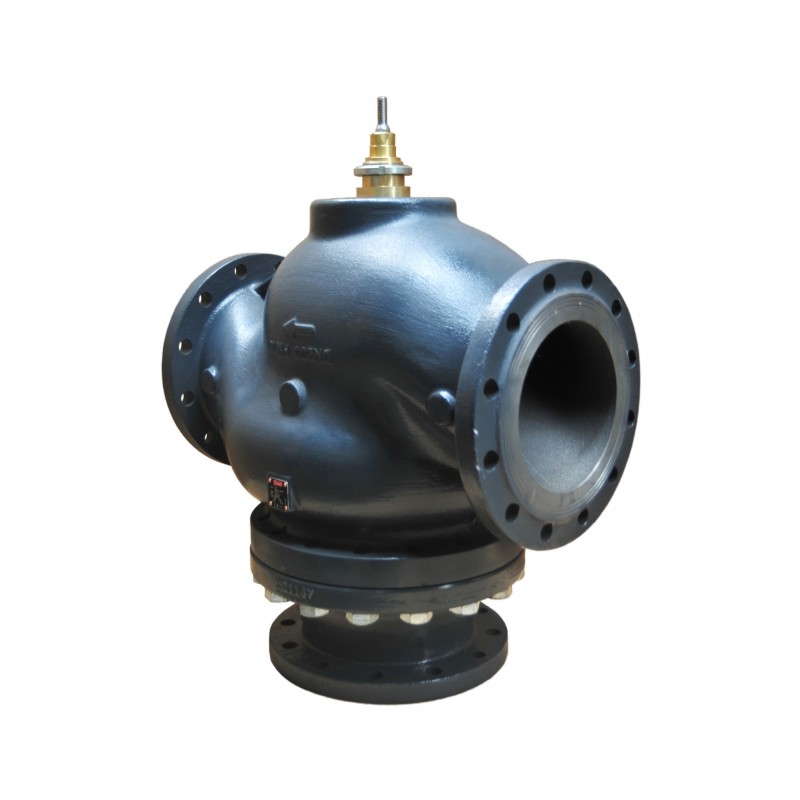

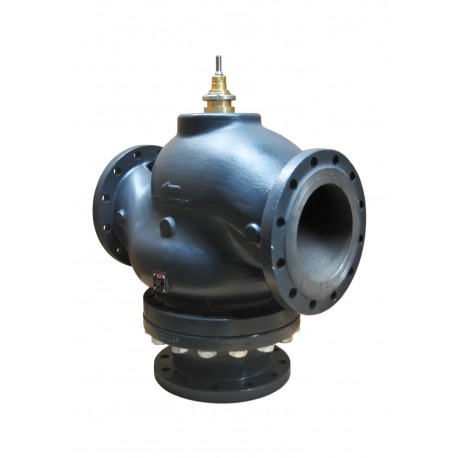

065B4200 DANFOSS HEATING VF3 PN16 200/630 3-way seated flange
065B4200
DANFOSS HEATING
VF3 PN16 200/630 3-way seated flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VF3 PN16 200/630 3-way seated flange
Product details
| Gross weight | 239.1 Kilogram |
| Net weight | 239 Kilogram |
| Volume | 547.2 Liter |
| EAN | 5710104508504 |
| Type | VF 3 |
| Product group | Other valves |
| Gross weight | 239.1 Kilogram |
| Net weight | 239 Kilogram |
| Volume | 547.2 Liter |
| EAN | 5710104508504 |
| Type | VF 3 |
| Product group | Other valves |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.45 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 50:1 |
| Description | VF3 PN16 200/630 3-way seated flange |
| Diameter [mm] | 200 mm |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Function | Mixing valve |
| Kvs values [m³/h] | 630 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | bc60a1f4-fe0c-4ec8-9e0a-9c8316b7044c |
| SCIP dossier product name | VF3 DN200-300 |
| Stroke [mm] | 57 mm |
| Valve body material | Grey cast iron (EN-GJL-250) |
| Valve cone material | Stainless steel |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.45 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 50:1 |
| Description | VF3 PN16 200/630 3-way seated flange |
| Diameter [mm] | 200 mm |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Function | Mixing valve |
| Kvs values [m³/h] | 630 m³/h |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | bc60a1f4-fe0c-4ec8-9e0a-9c8316b7044c |
| SCIP dossier product name | VF3 DN200-300 |
| Stroke [mm] | 57 mm |
| Valve body material | Grey cast iron (EN-GJL-250) |
| Valve cone material | Stainless steel |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B4200 065B4200 EN_065B1360.pdf | 2 Mbytes |
|
