DANFOSS HEATING065B3501 DANFOSS HEATING VFM 2 DN80 kvs 100 PN16 2-way flange

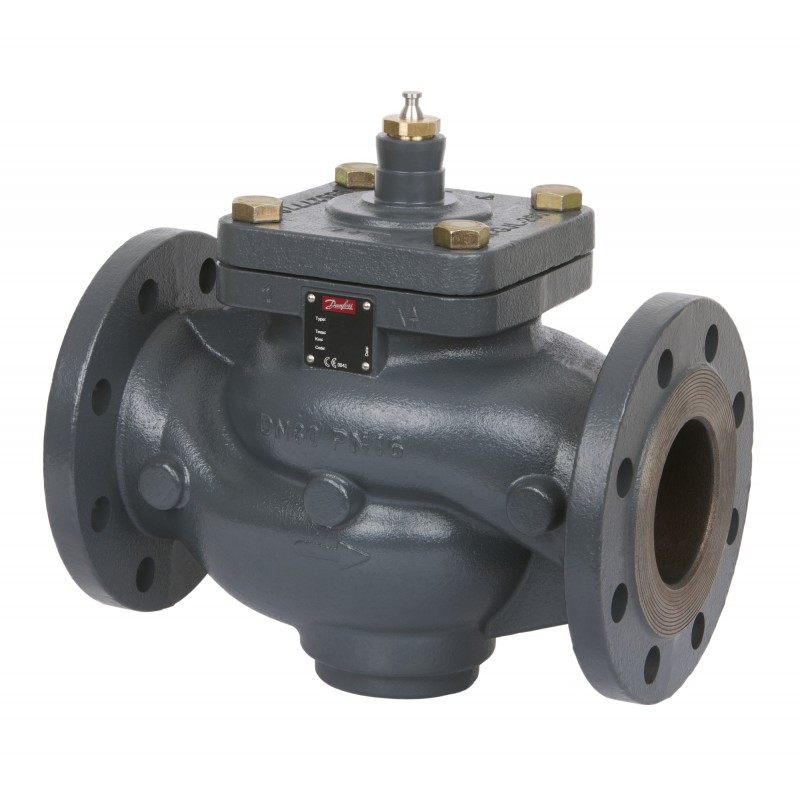

DANFOSS HEATING 065B3501 065B3501 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

065B3501 DANFOSS HEATING VFM 2 DN80 kvs 100 PN16 2-way flange

Reference: 065B3501

Manufacturer: DANFOSS HEATING

Description:

VFM 2 DN80 kvs 100 PN16 2-way flange
VFM 2, PN 16, DN 80, 100 m³/h, Flange

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.750,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

VFM 2 DN80 kvs 100 PN16 2-way flange

Product details

Gross weight32.6 Kilogram
Net weight27.1 Kilogram
Volume88.8 Liter
EAN5710104027821
TypeVFM 2
Product groupMotorized control valves
Gross weight32.6 Kilogram
Net weight27.1 Kilogram
Volume88.8 Liter
EAN5710104027821
TypeVFM 2
Product groupMotorized control valves

ApplicationDistrict heating and cooling
Application alternative VSPHeating
Cavitation factor0.4
Cavitation factor 100%0.27
Cavitation factor 25%0.46
Cavitation factor 50%0.42
Cavitation factor 75%0.4
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
Control ratio100:1
DescriptionVFM 2 DN80 kvs 100 PN16 2-way flange
Diameter [mm]80 mm
Differential pressure range [bar] [Max]8 bar
EU RoHS complianceOut of scope
Flow characteristicLogarithmic
FunctionPressure relief
Kvs values [m³/h]100 m³/h
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle positionNormally open
Stroke [mm]34 mm
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialStainless steel
Valve sizeDN 80
ApplicationDistrict heating and cooling
Application alternative VSPHeating
Cavitation factor0.4
Cavitation factor 100%0.27
Cavitation factor 25%0.46
Cavitation factor 50%0.42
Cavitation factor 75%0.4
China RoHS complianceOut of scope
Connection typesFlange
Contains batteriesNo
Control ratio100:1
DescriptionVFM 2 DN80 kvs 100 PN16 2-way flange
Diameter [mm]80 mm
Differential pressure range [bar] [Max]8 bar
EU RoHS complianceOut of scope
Flow characteristicLogarithmic
FunctionPressure relief
Kvs values [m³/h]100 m³/h
Leakage through port max. [% Kvs]0.03
Media pH [Max]10
Media pH [Min]7
Media temperature [°C] [Max]150 °C
Media temperature [°C] [Min]-10 °C
Medium alternativeGlycolic water up to 50%
Mounting versionFlow
Number of ports2
Permissible mediaDistrict heating/cooling circulation water
PN alternative VSP10
Pressure classPN 16
Pressure nominal [bar]16 bar
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Spindle positionNormally open
Stroke [mm]34 mm
Valve body materialGrey cast iron EN-GJL-250 (GG-25)
Valve cone materialStainless steel
Valve sizeDN 80

DATASHEET - PDF

Title
Size
Type
065B3501 065B3501 ES_065B3528.pdf
869 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
