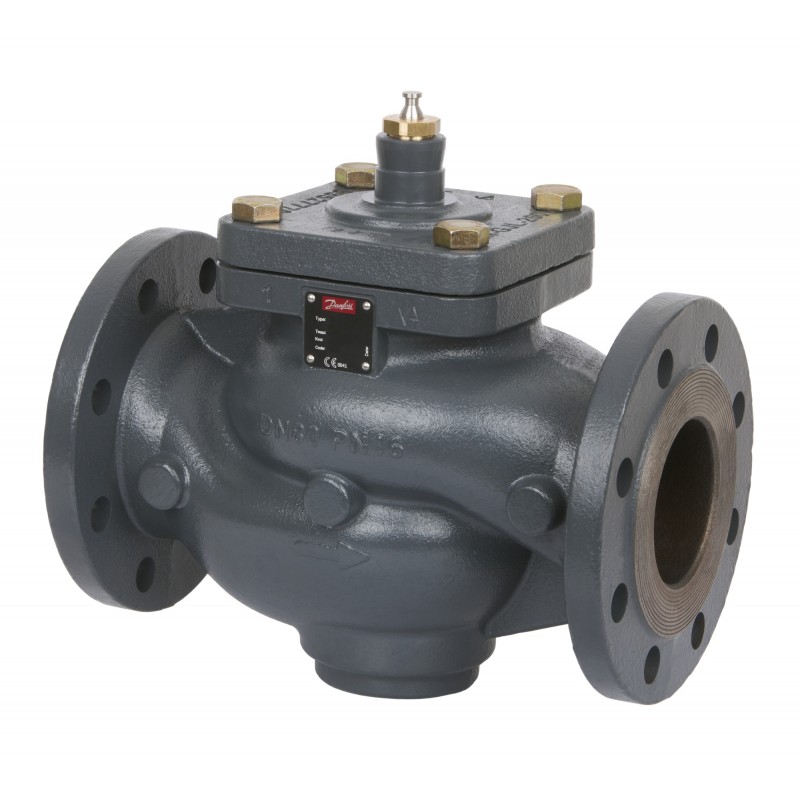

065B3500 DANFOSS HEATING VFM 2 DN65 kvs 63 PN16 2-way flange
065B3500
DANFOSS HEATING
VFM 2 DN65 kvs 63 PN16 2-way flange
VFM 2, PN 16, DN 65, 63 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VFM 2 DN65 kvs 63 PN16 2-way flange
Product details
| Gross weight | 29.8 Kilogram |
| Net weight | 25.6 Kilogram |
| Volume | 90 Liter |
| EAN | 5710104029108 |
| Type | VFM 2 |
| Product group | Motorized control valves |
| Gross weight | 29.8 Kilogram |
| Net weight | 25.6 Kilogram |
| Volume | 90 Liter |
| EAN | 5710104029108 |
| Type | VFM 2 |
| Product group | Motorized control valves |
| Application | District heating and cooling |
| Application alternative VSP | Heating |
| Cavitation factor | 0.45 |
| Cavitation factor 100% | 0.31 |
| Cavitation factor 25% | 0.52 |
| Cavitation factor 50% | 0.47 |
| Cavitation factor 75% | 0.45 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VFM 2 DN65 kvs 63 PN16 2-way flange |
| Diameter [mm] | 65 mm |
| Differential pressure range [bar] [Max] | 8 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Logarithmic |
| Function | Pressure relief |
| Kvs values [m³/h] | 63 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 30 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Stainless steel |
| Valve size | DN 65 |
| Application | District heating and cooling |
| Application alternative VSP | Heating |
| Cavitation factor | 0.45 |
| Cavitation factor 100% | 0.31 |
| Cavitation factor 25% | 0.52 |
| Cavitation factor 50% | 0.47 |
| Cavitation factor 75% | 0.45 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VFM 2 DN65 kvs 63 PN16 2-way flange |
| Diameter [mm] | 65 mm |
| Differential pressure range [bar] [Max] | 8 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Logarithmic |
| Function | Pressure relief |
| Kvs values [m³/h] | 63 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 30 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Stainless steel |
| Valve size | DN 65 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B3500 065B3500 ES_065B3528.pdf | 869 Kbytes |
|
