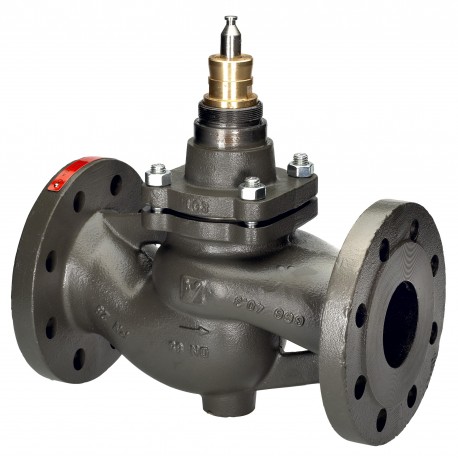

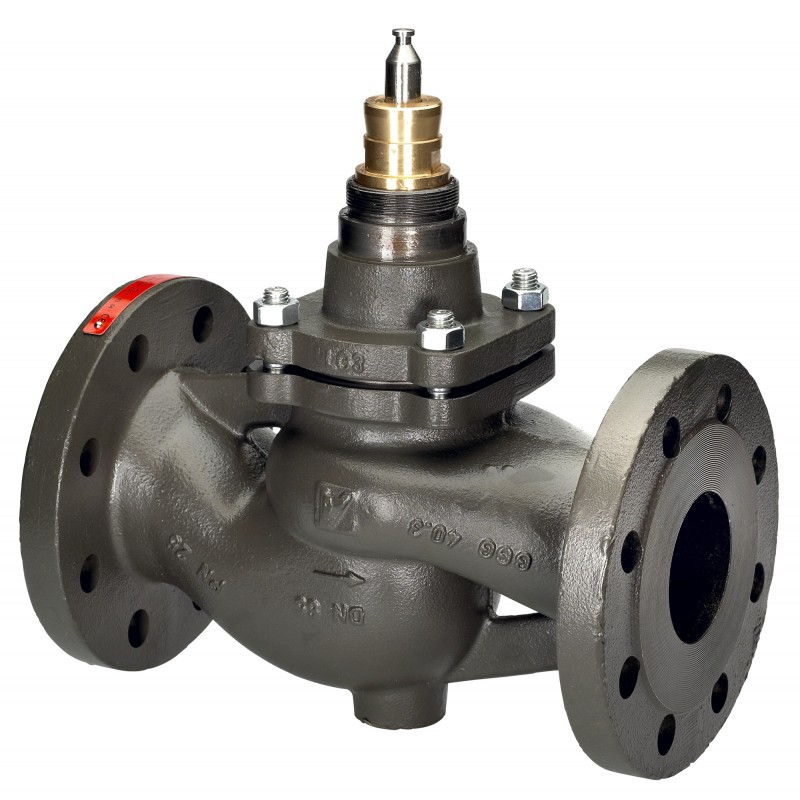

065B3365 DANFOSS HEATING VFS 2, PN 25, DN 65, 63 m³/h, Brida, Climate Solutions for heating
065B3365
DANFOSS HEATING
VFS 2 PN25 65/63 2-way seated flange
VFS 2, PN 25, DN 65, 63 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VFS 2 PN25 65/63 2-way seated flange
Product details
| Gross weight | 23 Kilogram |
| Net weight | 18.8 Kilogram |
| Volume | 88.8 Liter |
| EAN | 5702421508541 |
| Type | VFS 2 |
| Product group | Motorized control valves |
| Gross weight | 23 Kilogram |
| Net weight | 18.8 Kilogram |
| Volume | 88.8 Liter |
| EAN | 5702421508541 |
| Type | VFS 2 |
| Product group | Motorized control valves |
| Application | Steam |
| Application alternative VSP | Chilled water |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VFS 2 PN25 65/63 2-way seated flange |
| Diameter [mm] | 65 mm |
| Differential pressure range [bar] [Max] | 13 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Kvs values [m³/h] | 63 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Medium alternative 2 | Steam |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Stroke [mm] | 40 mm |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel |
| Valve size | DN 65 |
| Application | Steam |
| Application alternative VSP | Chilled water |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VFS 2 PN25 65/63 2-way seated flange |
| Diameter [mm] | 65 mm |
| Differential pressure range [bar] [Max] | 13 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Kvs values [m³/h] | 63 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Medium alternative 2 | Steam |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure class | PN 25 |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Stroke [mm] | 40 mm |
| Valve body material | Ductile cast iron EN-GJS-400-18-LT (GGG 40.3) |
| Valve cone material | Stainless steel |
| Valve size | DN 65 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B3365 065B3365 ES_065B1525.pdf | 2 Mbytes |
|
