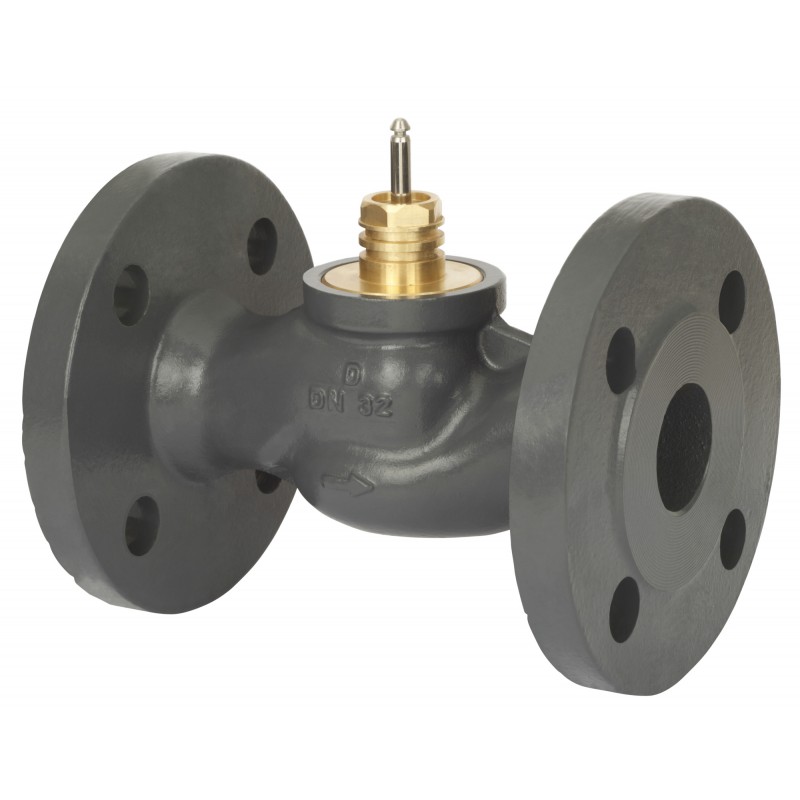

065B3205 DANFOSS HEATING VF 2 PN16 100/145 2-way seated flange
065B3205
DANFOSS HEATING
VF 2 PN16 100/145 2-way seated flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VF 2 PN16 100/145 2-way seated flange
Product details
| Gross weight | 44.8 Kilogram |
| Net weight | 40.4 Kilogram |
| Volume | 88.8 Liter |
| EAN | 5702421510964 |
| Type | VF 2 |
| Product group | Other valves |
| Gross weight | 44.8 Kilogram |
| Net weight | 40.4 Kilogram |
| Volume | 88.8 Liter |
| EAN | 5702421510964 |
| Type | VF 2 |
| Product group | Other valves |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VF 2 PN16 100/145 2-way seated flange |
| Diameter [mm] | 100 mm |
| Differential pressure range [bar] [Max] | 1.5 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Kvs values [m³/h] | 145 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | db8884b3-dc94-4e5e-97b4-8e421697e20c |
| SCIP dossier product name | 065B3205 |
| Stroke [mm] | 30 mm |
| Stuffing box sealing material | EPDM |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Red bronze CuSn5Zn5Pb5 (Rg 6) |
| Valve stem material | Stainless steel |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VF 2 PN16 100/145 2-way seated flange |
| Diameter [mm] | 100 mm |
| Differential pressure range [bar] [Max] | 1.5 bar |
| EU RoHS compliance | Out of scope |
| Flow characteristic | Equal percentage |
| Kvs values [m³/h] | 145 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | db8884b3-dc94-4e5e-97b4-8e421697e20c |
| SCIP dossier product name | 065B3205 |
| Stroke [mm] | 30 mm |
| Stuffing box sealing material | EPDM |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Red bronze CuSn5Zn5Pb5 (Rg 6) |
| Valve stem material | Stainless steel |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B3205 065B3205 EN_065B1360.pdf | 2 Mbytes |
|
