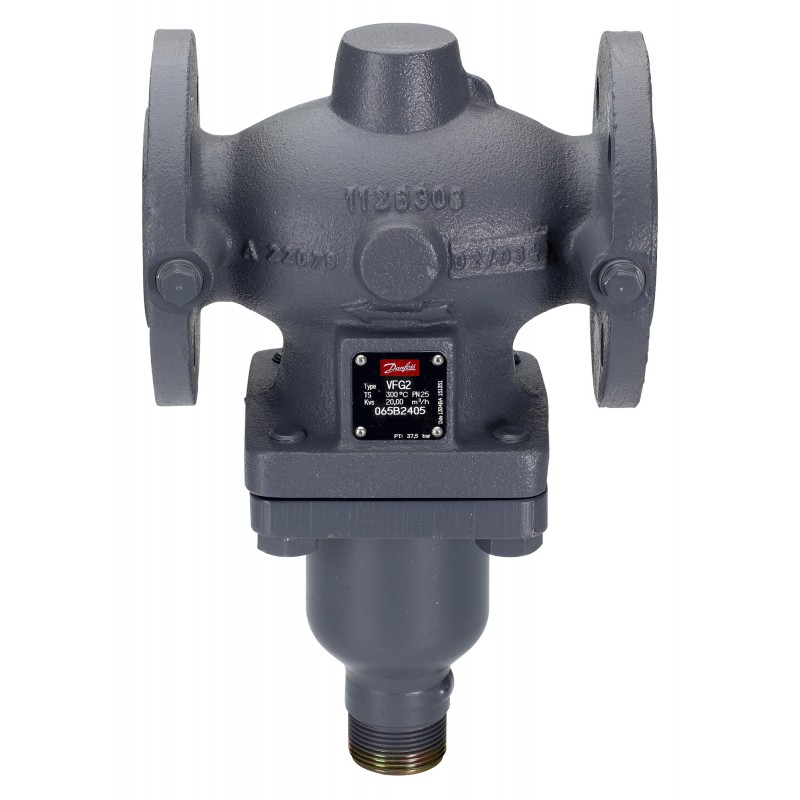

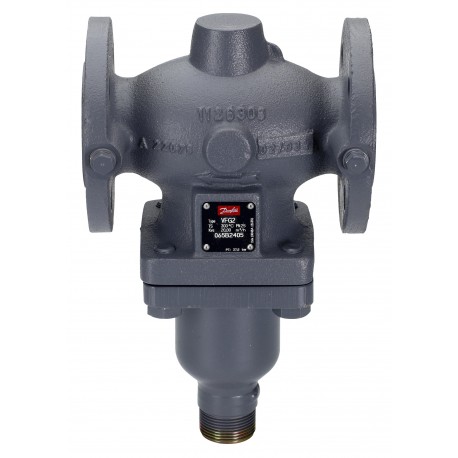

065B2759 DANFOSS HEATING VFQ2 PN16 250/400 2-way flange VFM cast.
065B2759
DANFOSS HEATING
VFQ2 PN16 250/400 2-way flange VFM cast.
VFQ 2, PN 16, DN 250, 400 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VFQ2 PN16 250/400 2-way flange VFM cast.
Product details
| Gross weight | 374 Kilogram |
| Net weight | 374 Kilogram |
| Volume | 614.4 Liter |
| EAN | 5710104043104 |
| Type | VFQ 2 |
| Product group | Pressure flow controllers |
| Gross weight | 374 Kilogram |
| Net weight | 374 Kilogram |
| Volume | 614.4 Liter |
| EAN | 5710104043104 |
| Type | VFQ 2 |
| Product group | Pressure flow controllers |
| Application | District heating and cooling |
| Cavitation factor | 0.2 |
| Cavitation factor 100% | 0.16 |
| Cavitation factor 25% | 0.2 |
| Cavitation factor 50% | 0.31 |
| Cavitation factor 75% | 0.31 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFQ2 PN16 250/400 2-way flange VFM cast. |
| Diameter [mm] | 250 mm |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 400 m³/h |
| Media temperature [°C] [Max] | 150 °C |
| Mounting version | Free |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Valve size | DN 250 |
| Application | District heating and cooling |
| Cavitation factor | 0.2 |
| Cavitation factor 100% | 0.16 |
| Cavitation factor 25% | 0.2 |
| Cavitation factor 50% | 0.31 |
| Cavitation factor 75% | 0.31 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFQ2 PN16 250/400 2-way flange VFM cast. |
| Diameter [mm] | 250 mm |
| EU RoHS compliance | Out of scope |
| Kvs values [m³/h] | 400 m³/h |
| Media temperature [°C] [Max] | 150 °C |
| Mounting version | Free |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Valve size | DN 250 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B2759 065B2759 EN_065B2677.pdf | 2 Mbytes |
|
