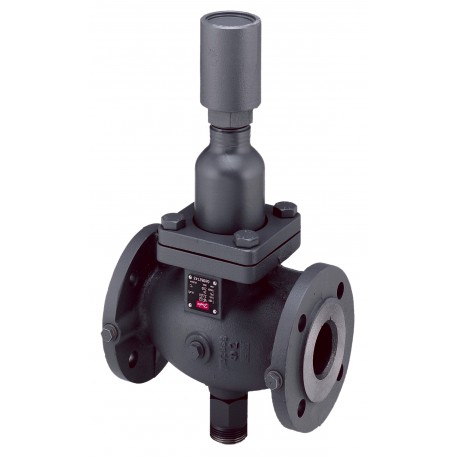

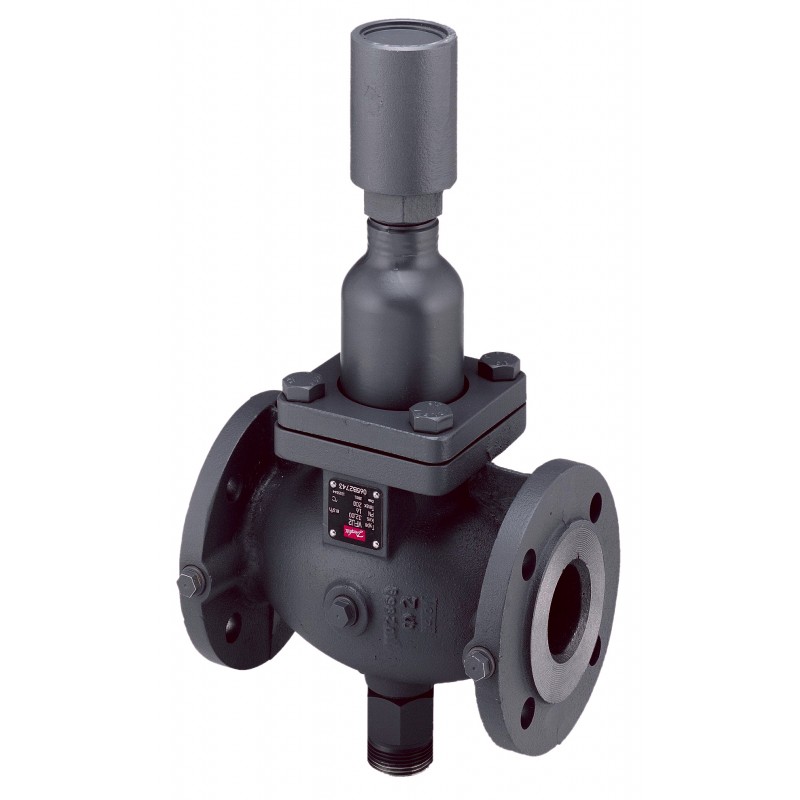

065B2745 DANFOSS HEATING VFU2 PN16 80/80 2-way flange flow/return
065B2745
DANFOSS HEATING
VFU2 PN16 80/80 2-way flange flow/return
VFU 2, PN 16, DN 80, 80 m³/h, Flange
Home > DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
Best sellers
▲More info
▲VFU2 PN16 80/80 2-way flange flow/return
Product details
| Gross weight | 37.126 Kilogram |
| Net weight | 37.126 Kilogram |
| Volume | 90 Liter |
| EAN | 5702421810095 |
| Type | VFU 2 |
| Product group | Motorized control valves |
| Gross weight | 37.126 Kilogram |
| Net weight | 37.126 Kilogram |
| Volume | 90 Liter |
| EAN | 5702421810095 |
| Type | VFU 2 |
| Product group | Motorized control valves |
| Application | District Heating |
| Cavitation factor | 0.45 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFU2 PN16 80/80 2-way flange flow/return |
| Diameter [mm] | 80 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| EU RoHS compliance | Out of scope |
| Function | Pressure relief |
| Kvs values [m³/h] | 80 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally closed |
| Stroke [mm] | 18 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 80 |
| Application | District Heating |
| Cavitation factor | 0.45 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFU2 PN16 80/80 2-way flange flow/return |
| Diameter [mm] | 80 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| EU RoHS compliance | Out of scope |
| Function | Pressure relief |
| Kvs values [m³/h] | 80 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally closed |
| Stroke [mm] | 18 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 80 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
| 065B2745 065B2745 EN_065B2502.pdf | 1 Mbytes |
|
