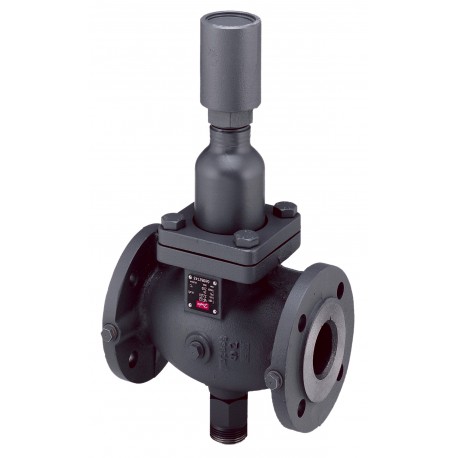

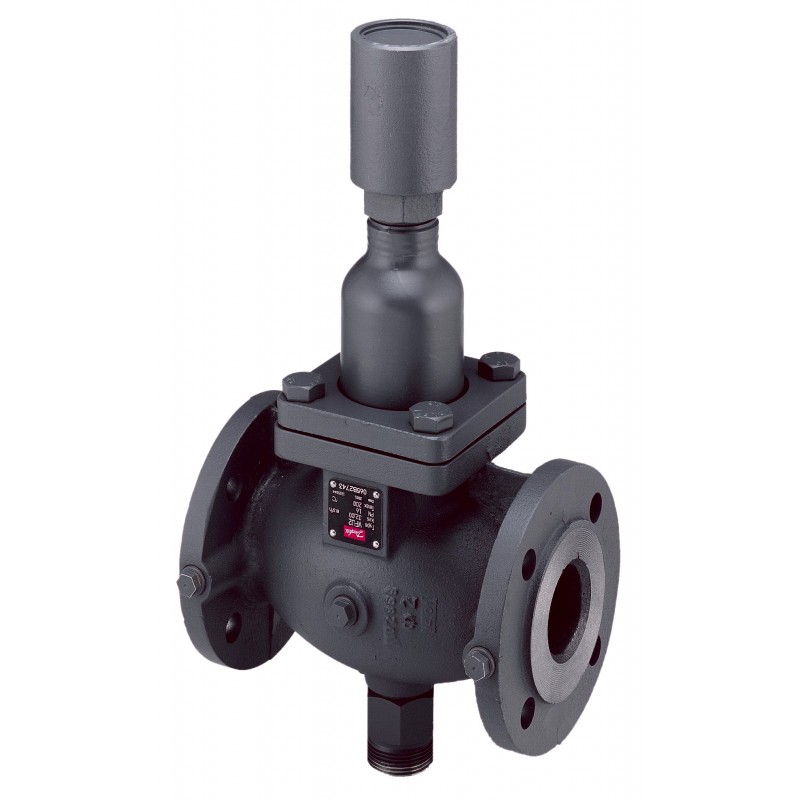

065B2741 DANFOSS HEATING VFU2 PN16 32/16 2-way flange flow/return
Reference: 065B2741
Manufacturer: DANFOSS HEATING
Description:
VFU2 PN16 32/16 2-way flange flow/return
VFU 2, PN 16, DN 32, 16 m³/h, Flange
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
VFU2 PN16 32/16 2-way flange flow/return
Product details
| Gross weight | 18.524 Kilogram |
| Net weight | 13.375 Kilogram |
| Volume | 82.964 Liter |
| EAN | 5702421810057 |
| Type | VFU 2 |
| Product group | Motorized control valves |
| Gross weight | 18.524 Kilogram |
| Net weight | 13.375 Kilogram |
| Volume | 82.964 Liter |
| EAN | 5702421810057 |
| Type | VFU 2 |
| Product group | Motorized control valves |
| Application | District Heating |
| Cavitation factor | 0.55 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFU2 PN16 32/16 2-way flange flow/return |
| Diameter [mm] | 32 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| EU RoHS compliance | Out of scope |
| Function | Pressure relief |
| Kvs values [m³/h] | 16 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Spindle position | Normally closed |
| Stroke [mm] | 8 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 32 |
| Application | District Heating |
| Cavitation factor | 0.55 |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | VFU2 PN16 32/16 2-way flange flow/return |
| Diameter [mm] | 32 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| EU RoHS compliance | Out of scope |
| Function | Pressure relief |
| Kvs values [m³/h] | 16 m³/h |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 200 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Spindle position | Normally closed |
| Stroke [mm] | 8 mm |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Stainless steel, mat. No. 1.4404 |
| Valve seat material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 32 |
